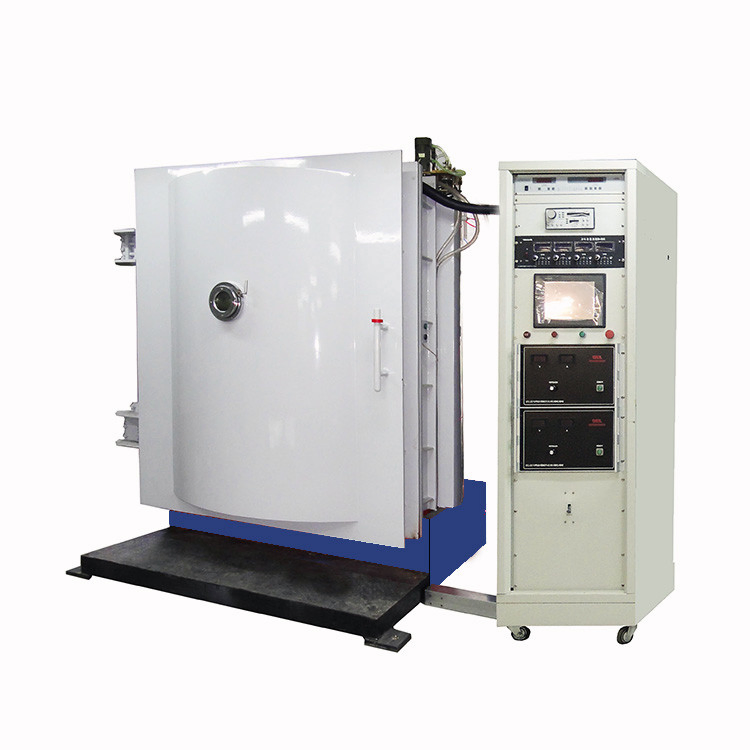

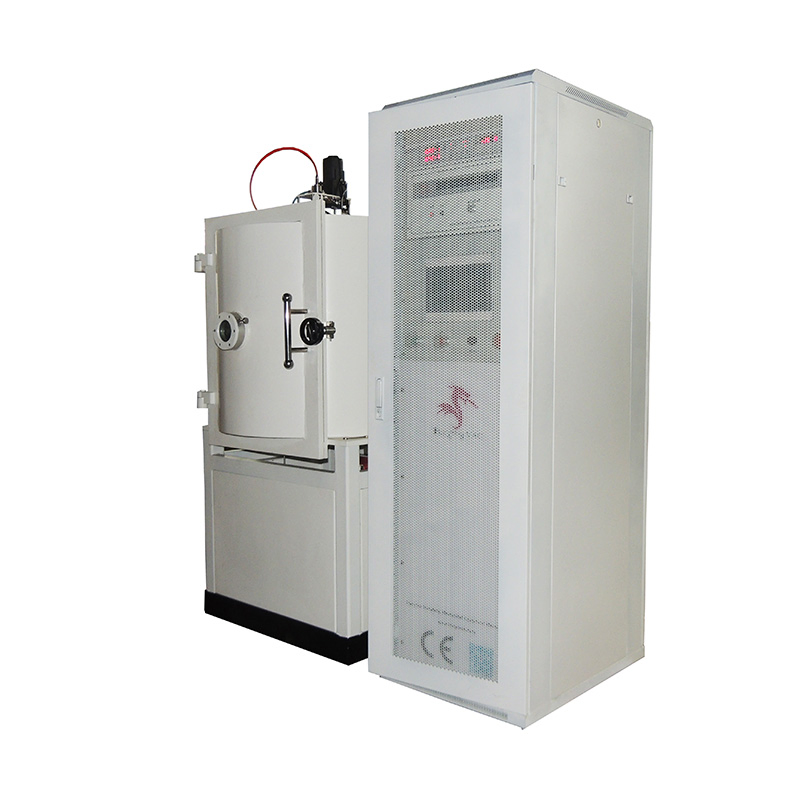

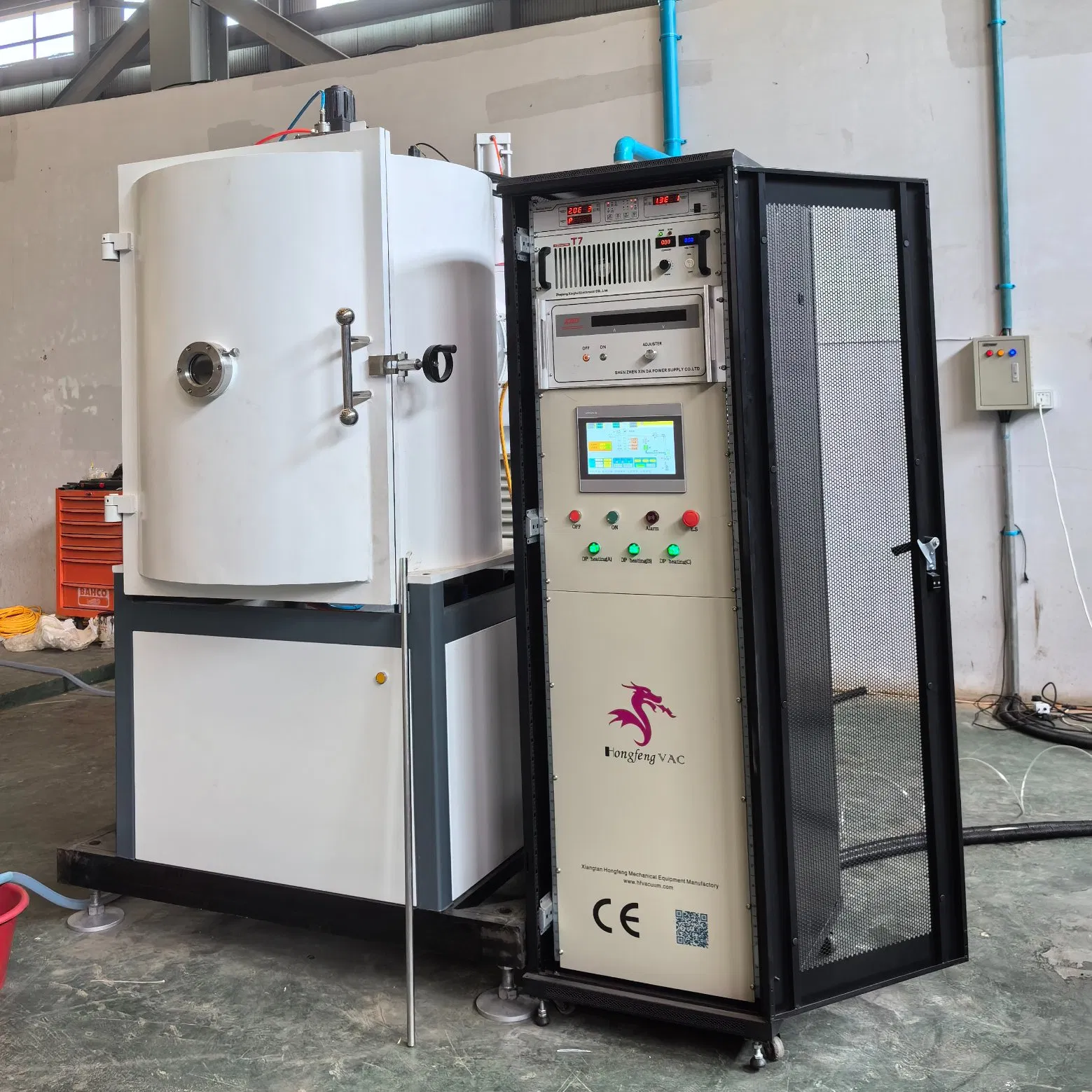

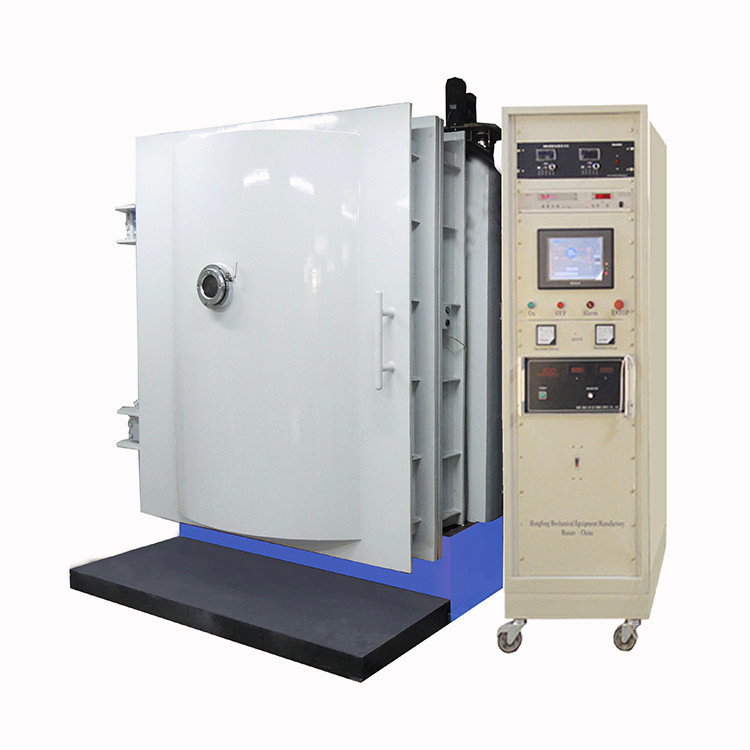

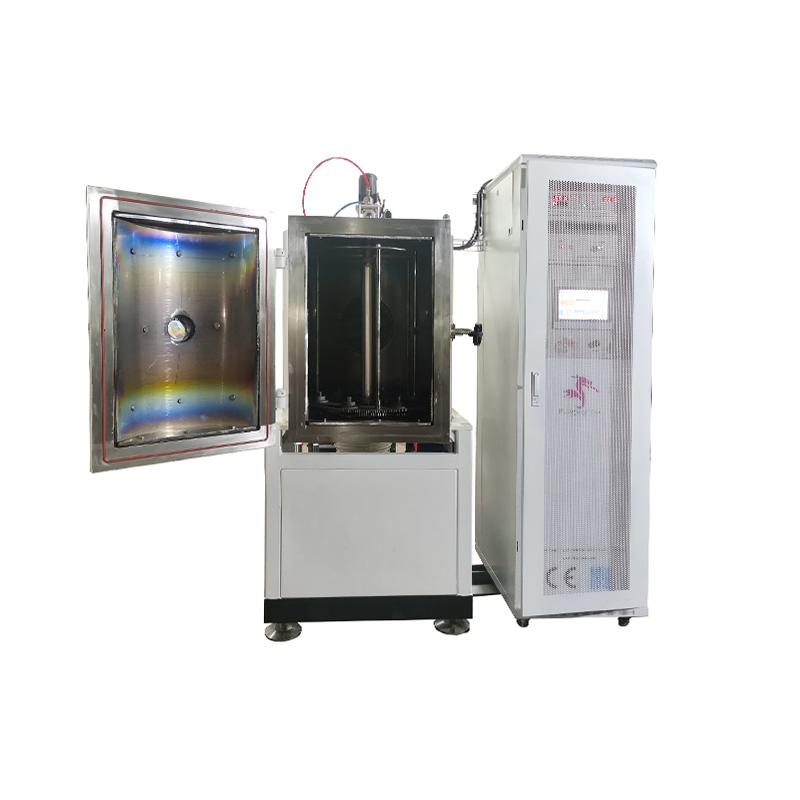

Vacuum Plating Silver Thin Film Deposition Magnetron Sputtering System

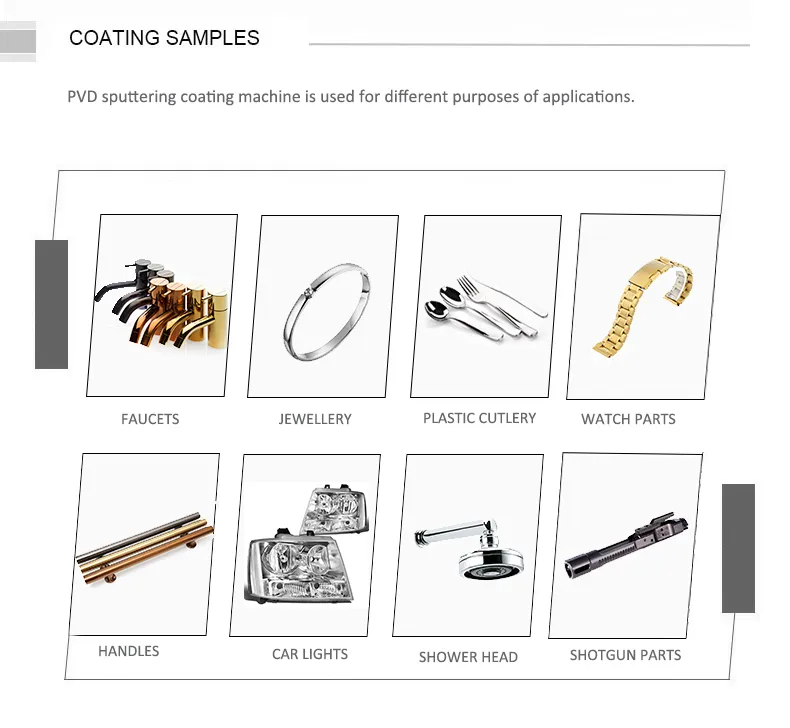

The equipment features a reasonable structure, ensuring even coating quality, fast pumping speeds, short cycles, and high efficiency. It offers easy operation, low energy consumption, and stable performance advantages. This system is widely utilized across various industries including automotive parts, audio equipment, small appliances, computers, timepieces, toys, mobile phones, reflective cups, and cosmetics.

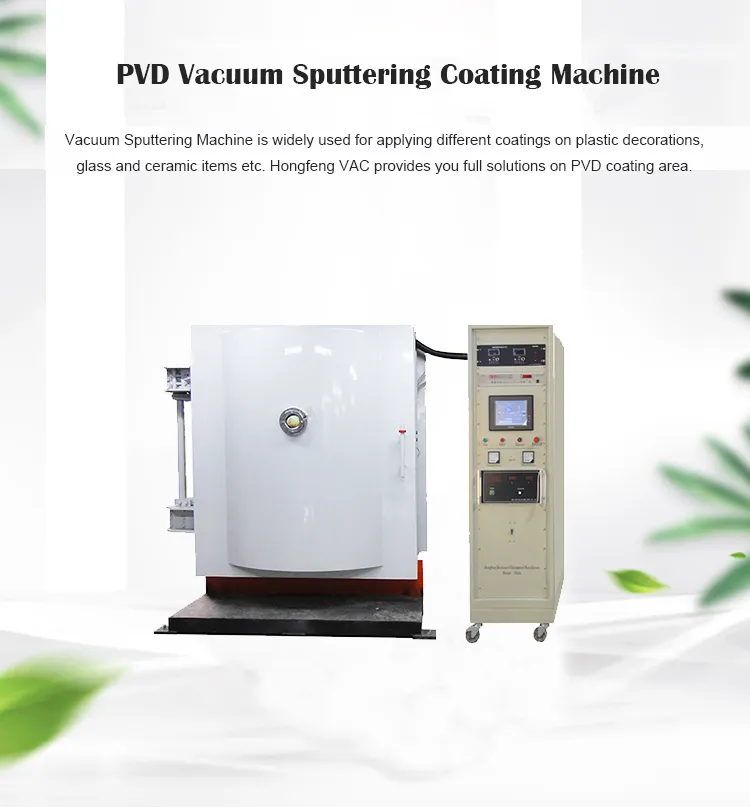

DC magnetron sputtering coating machines are designed for direct sputtering applications on diverse substrates including various plastics, glass, metals, and ceramics.

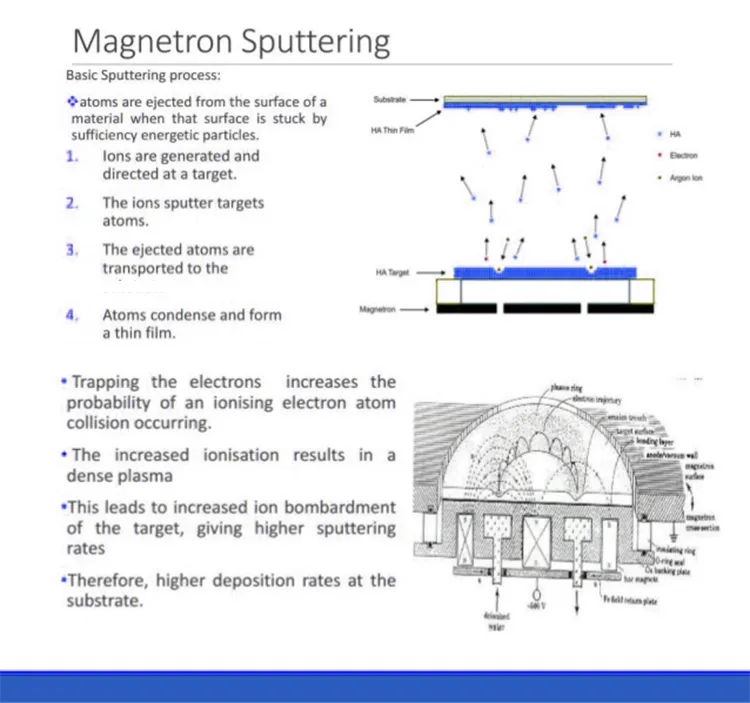

With over a decade of experience in designing magnetrons (rectangular, cylindrical, circular), we develop specialized targets that can be directly cooled or bonded to fit most magnetron dimensions. Magnetic field modeling is key to defining the behavior of ion-charged particles, enhancing productivity and reproducibility in commercial applications.
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
| Vacuum Chamber Dim (Dia*H) | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Chamber Material | Carbon steel, SUS304 or SUS316L | |||
| Sputtering Cathodes | ≥1 sets, DC sputtering system, cylindrical or rectangle | |||
| Pumping System | Turbo molecular pumps or diffusion pump + mechanical pump | |||
| Pumping Time | Atmosphere to 5.0*10-2Pa < 8 minutes | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Total Power | 40-100kW | 70-1000kW | ||
* All specifications can be customized according to specific requests.

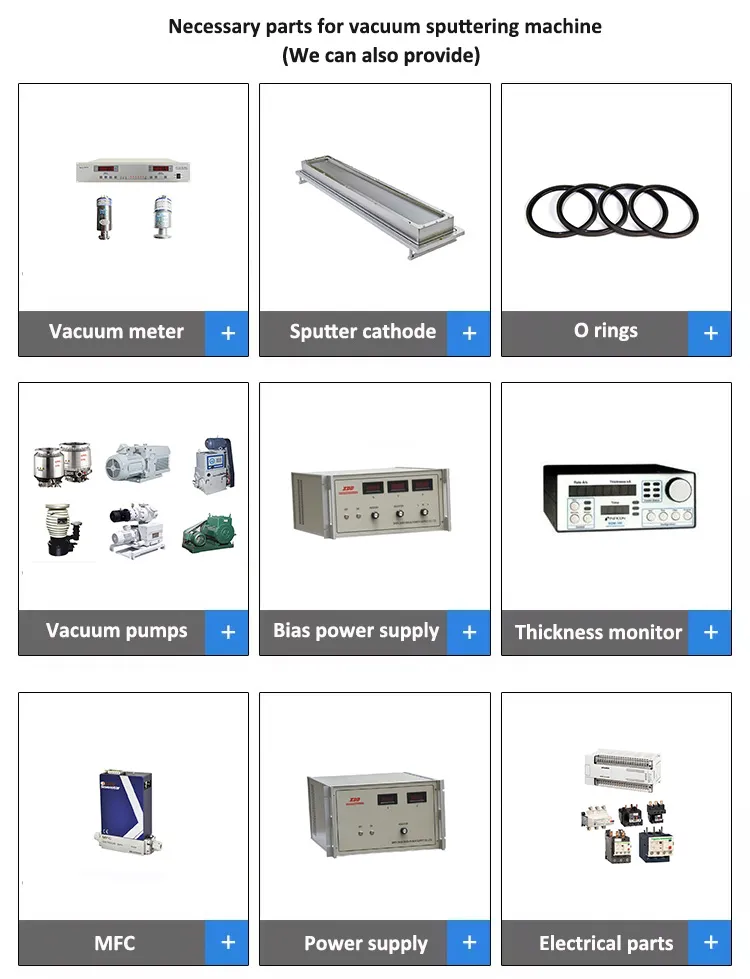

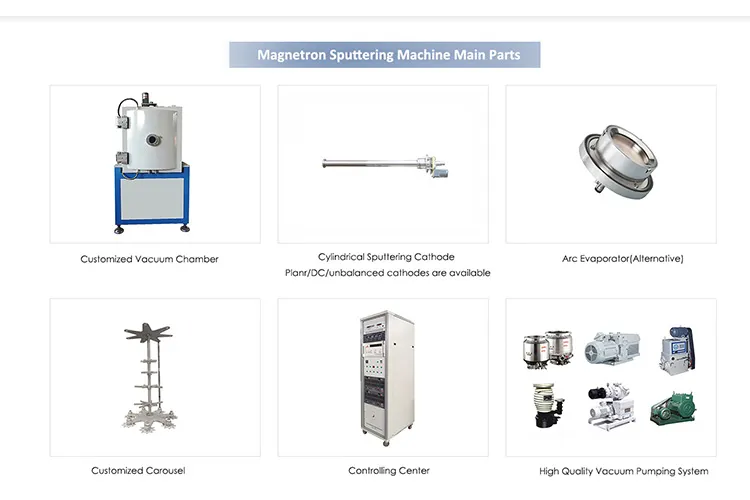

We provide all necessary parts for daily production requirements:
