Premium Humeral Intramedullary Nail for Enhanced Fracture Support

1 / 5

Premium Humeral Intramedullary Nail for Enhanced Fracture Support

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Condition: New

Usage: Fracture Fixation

Using Site: Humeral

Type: Trauma

Implant Type: Intramedullary Nail

Specification: Titanium Alloy TC4

Origin: China

Product Introduction

Medical Background:
Proximal humeral fractures are among the most common fractures, accounting for 4%–5% of all fractures. Mechanism of injury: Usually occurs when the elbow strikes the ground or the arm is braced during a fall, especially in elderly patients, or when the shoulder joint directly sustains external force.

Key Features

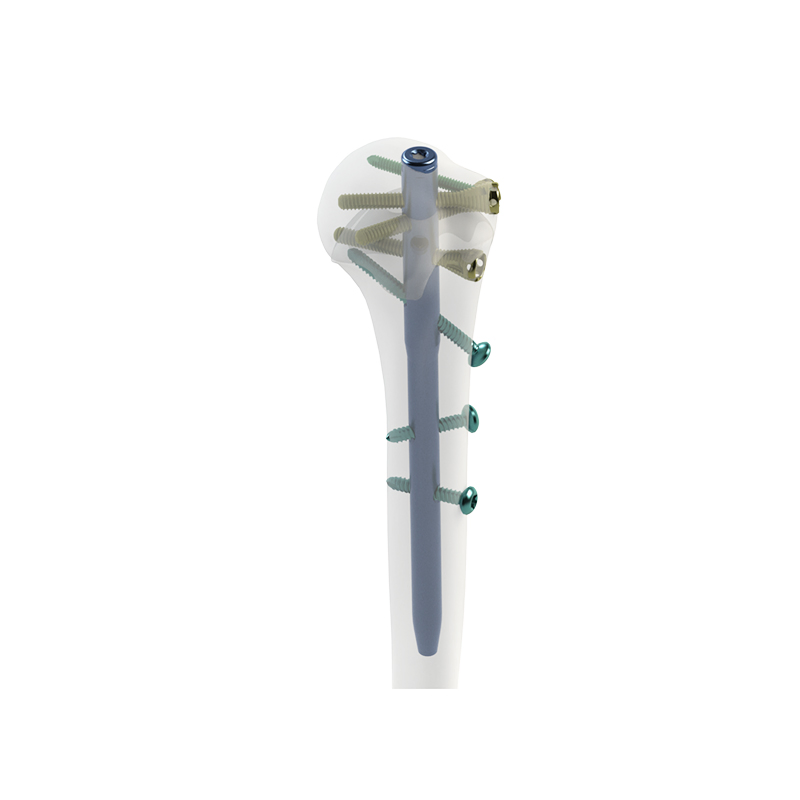

Unique and innovative "nail-in-nail" technology to enhance the fixation effect of proximal locking screws.
Proximal screws are countersunk, with at least three lateral screws implanted to ensure basic structural stability.
Oblique upward supporting lock provides more stable medial support for the humeral head.
Multi-planar distal locking to avoid neurovascular structures while providing stable fixation.
Central implantation of the main nail with an ultra-low notch design to protect the supraspinatus muscle and surrounding tissues.

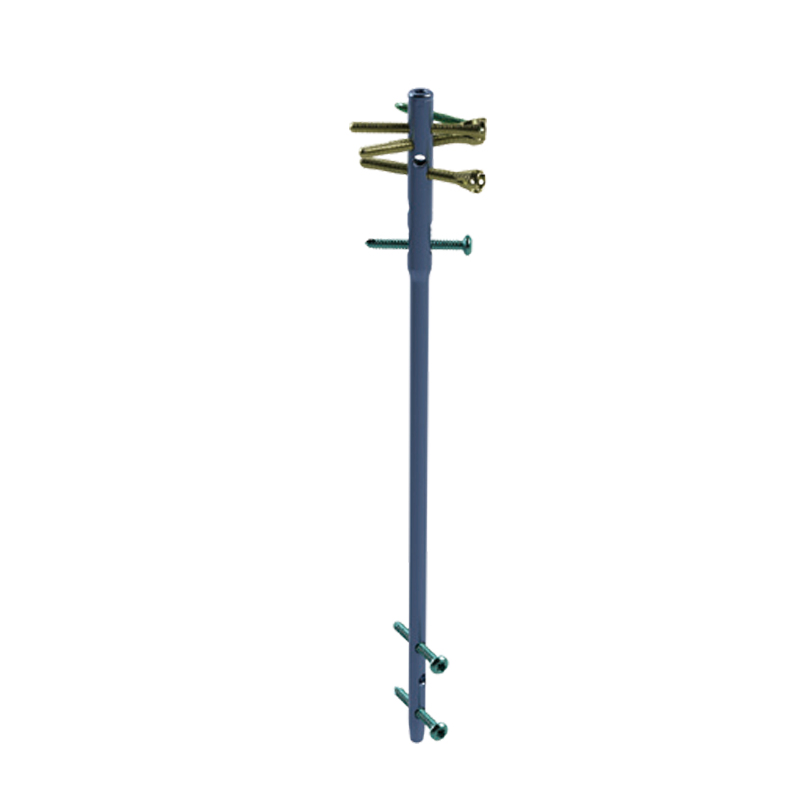

Screw Configuration Details

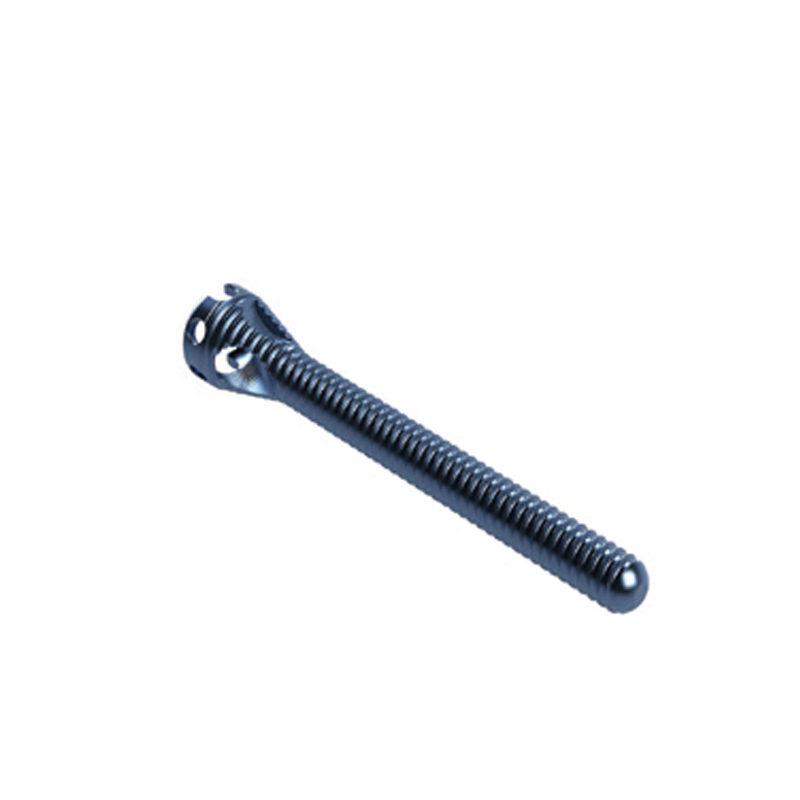

Ø3.5 mm interlocking screws: Additional interlocking screws ("screw-in-screw" technique) can be inserted through the head of the lateral screws to enhance internal fixation stability, particularly effective for patients with osteoporosis.

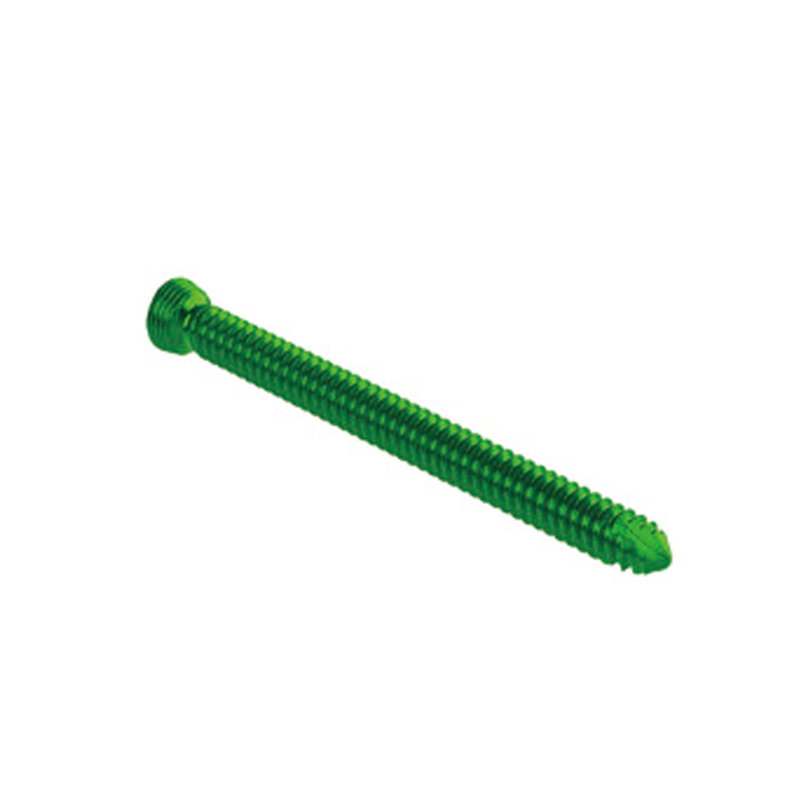

Ø4.5 mm interlocking screws: Three screws inserted laterally into the greater tuberosity ensure basic structural stability. Additional anterior screws can further enhance construct stability.

Ø4.0 mm ascending screw: Supports the medial calcar region of the humerus, stabilizing fractures with medial comminution.

Ø4.0 mm interlocking screws: Two distal interlocking screws positioned in different planes to reduce implant toggling.

Clinical Applications

Short Nail (Length: 160 mm; Diameter: 8 mm, 9.5 mm):

Two-part surgical neck fractures of the humerus
Three-part surgical neck fractures of the humerus
Four-part surgical neck fractures of the humerus

Long Nail (Length: 180–315 mm; Diameter: 7 mm, 8.5 mm):

Proximal humeral fractures combined with humeral shaft fractures
Humeral shaft fractures
Impending pathological fractures

Product Display

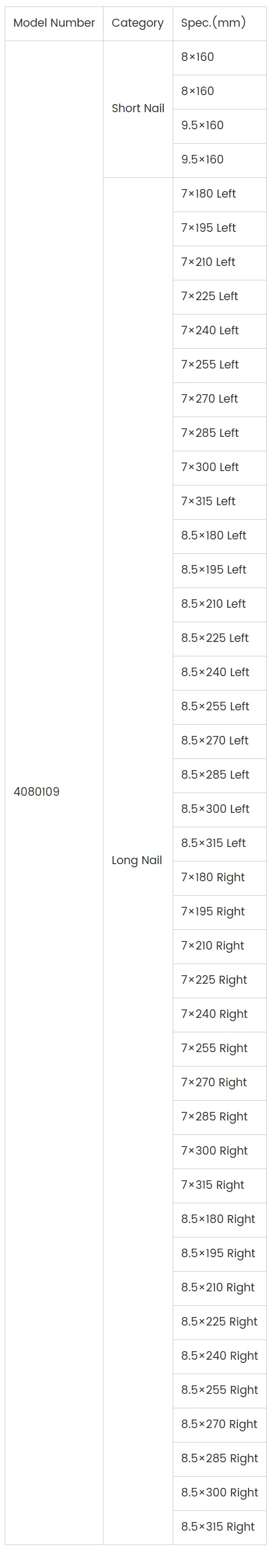

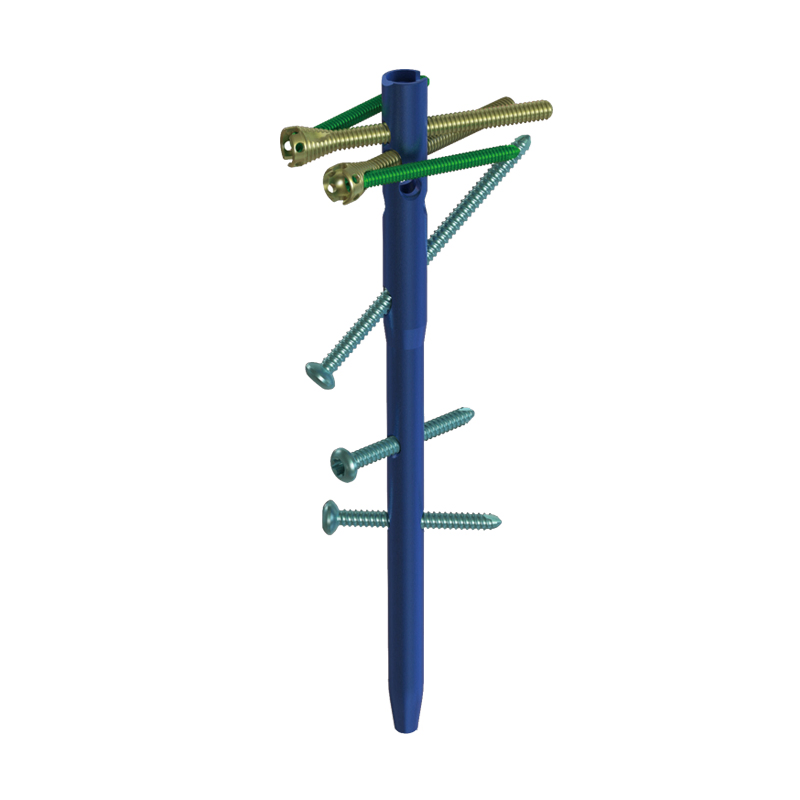

Humeral Intramedullary Nail Detailed View

Frequently Asked Questions

What are the available shipping methods and costs?

We typically utilize courier services for shipping, but can accommodate postal services upon request. Shipping costs are determined by destination, package size, and weight; a detailed quote is provided based on specific requirements.

Are these orthopedic products certified for quality?

Yes, the production processes hold EN ISO 13485 certification. This ensures all medical devices meet stringent international requirements for safety, performance, and regulatory compliance.

What is the Minimum Order Quantity (MOQ)?

Our standard minimum order value is US$1,000. However, sample orders are available at cost for potential clients to evaluate product quality before committing to larger volumes.

Can you provide custom products not listed in the catalogue?

Yes, custom orders (OEM/ODM) are accommodated. By providing pictures or samples of the desired product, we can work to create a similar item, though lead times may be longer.

Do you maintain consistent stock levels?

We maintain stock for most catalogue products with regular monthly production cycles. Since stock levels vary based on global demand, it is best to consult with the sales team for real-time inventory updates.

What materials are used for the intramedullary nails?

The products are manufactured using high-grade Titanium Alloy (TC4), ensuring biocompatibility and the necessary mechanical strength for humeral fracture fixation.
