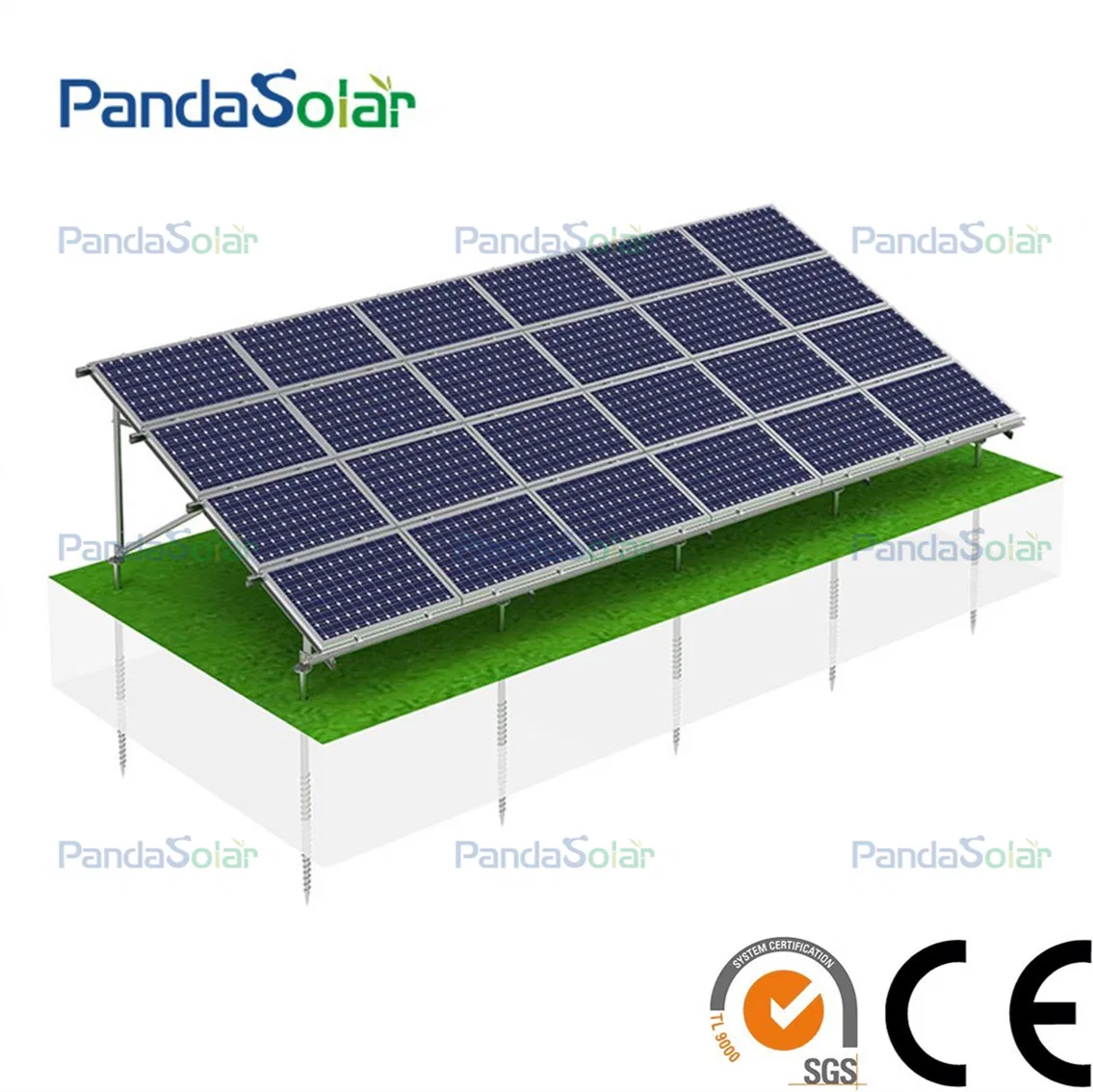

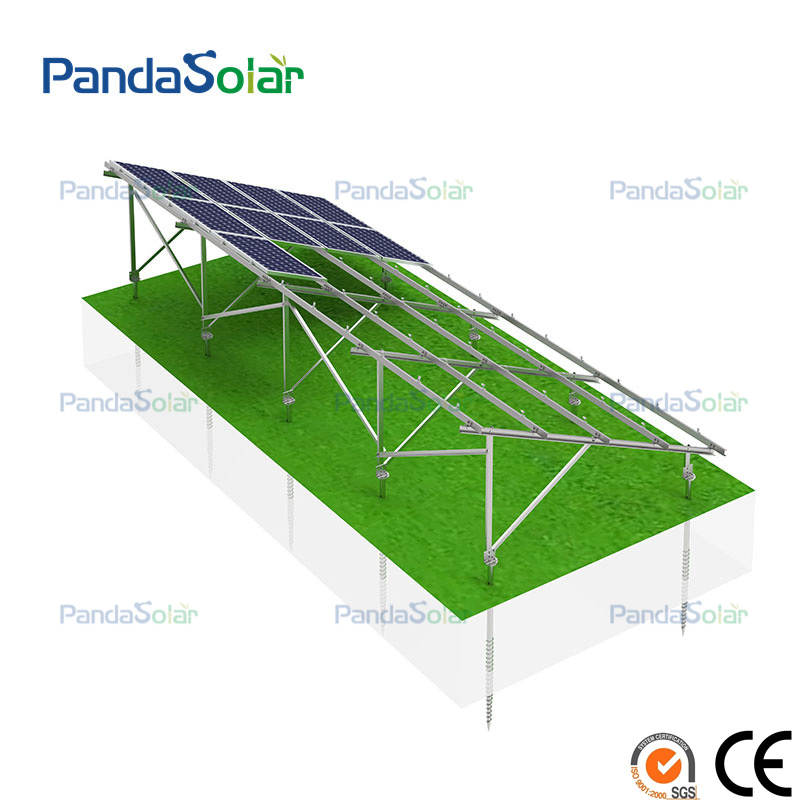

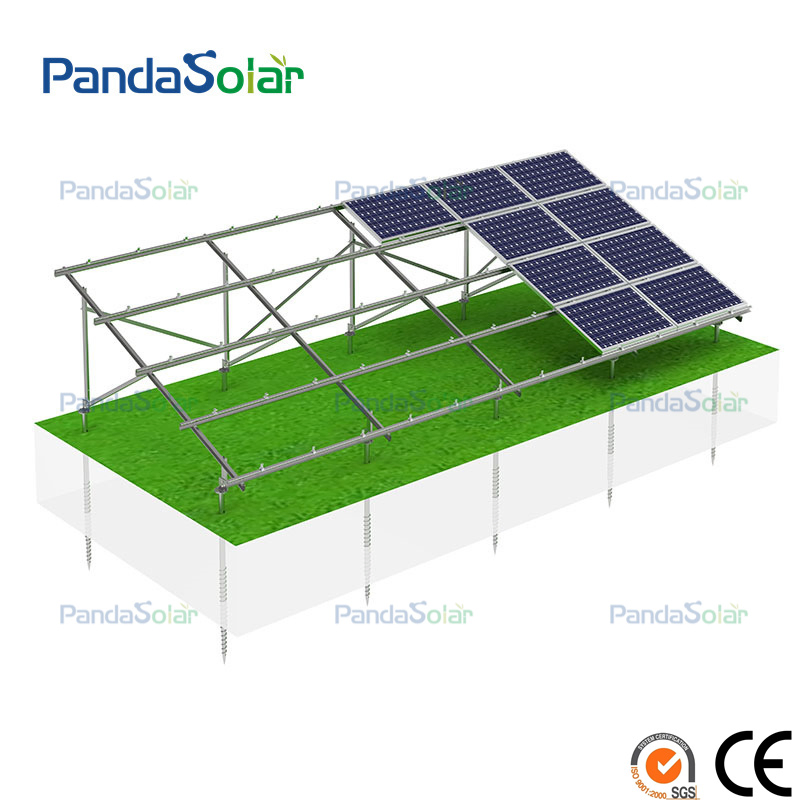

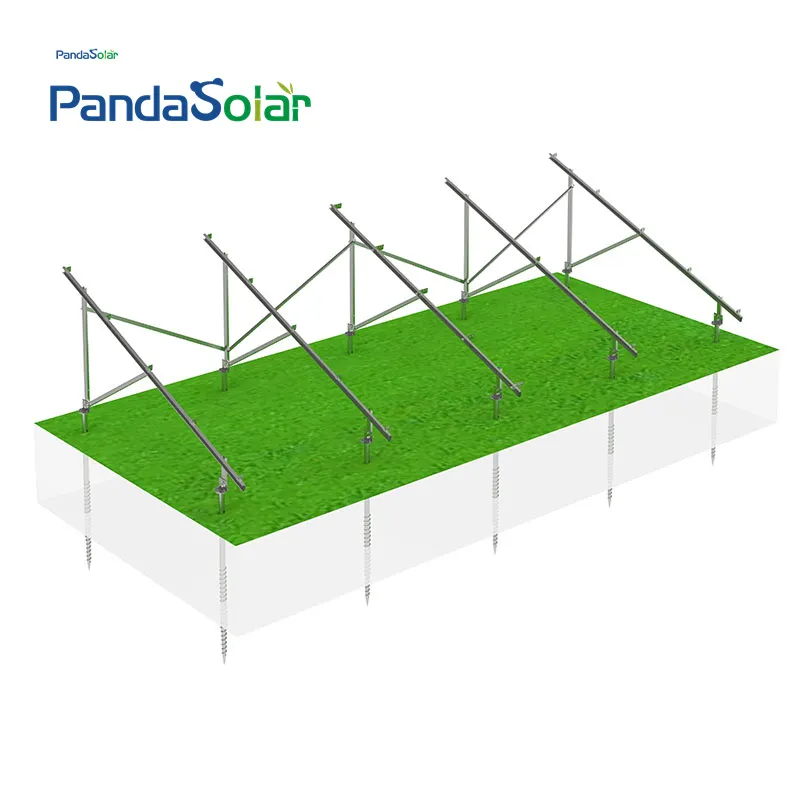

Magnesium Aluminum Zinc Ground Mounting Systems for Solar Panels:

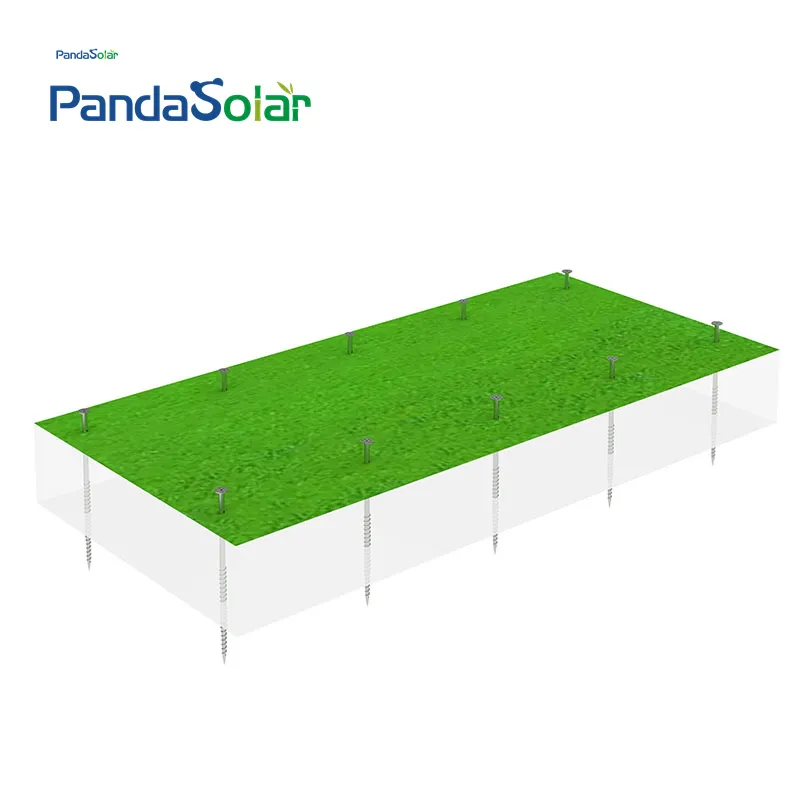

The solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs are optimized. The service life of the bracket is engineered for long-term durability. Support foundations include: straight into the ground, ground screws, and cement piers.

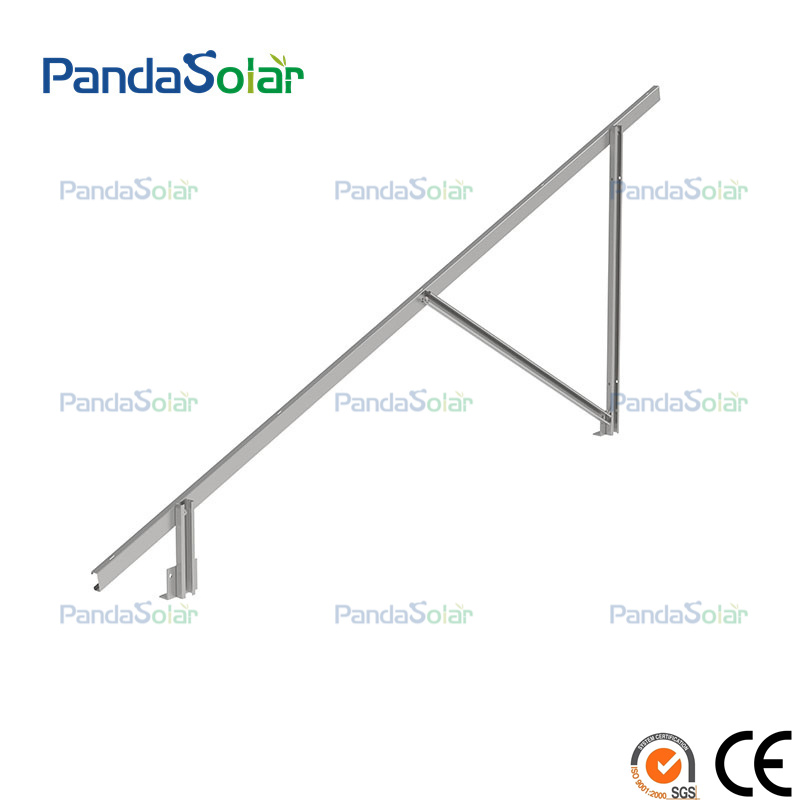

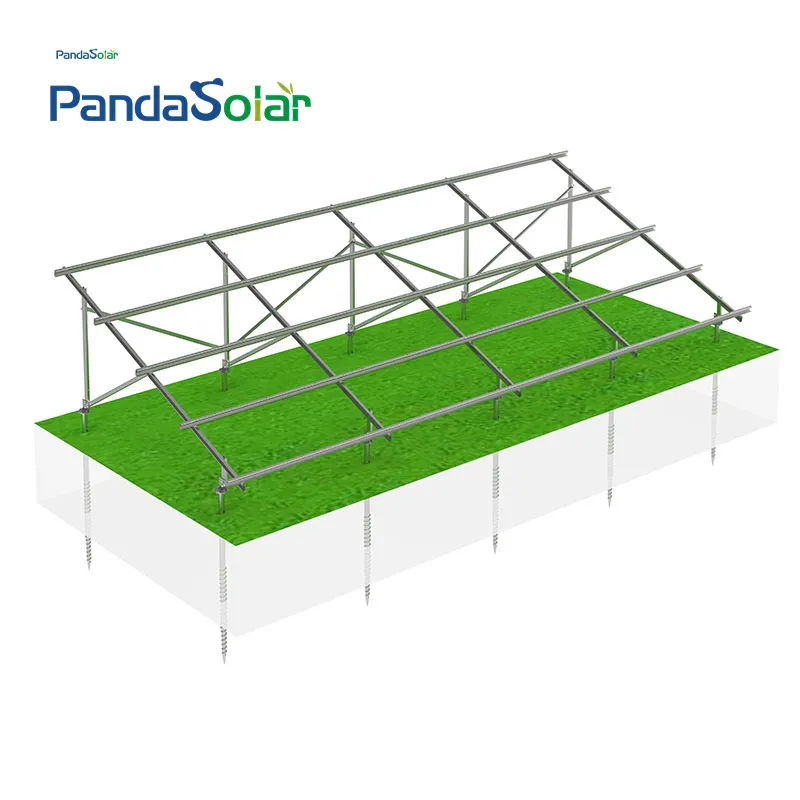

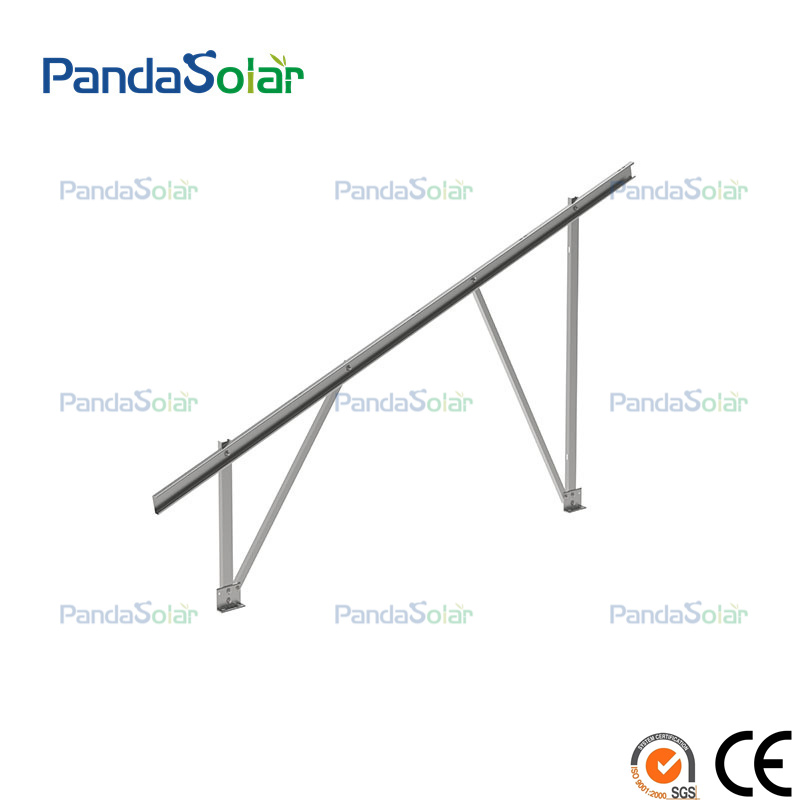

GM4 double column can be configured as a ground bolt column or piling column. Ground screw posts allow for precise height adjustments, while piling columns offer higher strength for demanding installation requirements.
Structural Features:
| Material | Structure: Mg-Al-Zn & AL-6005-T5 (Anodized) / Components: SUS304 & AI6005-5 |
|---|---|
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

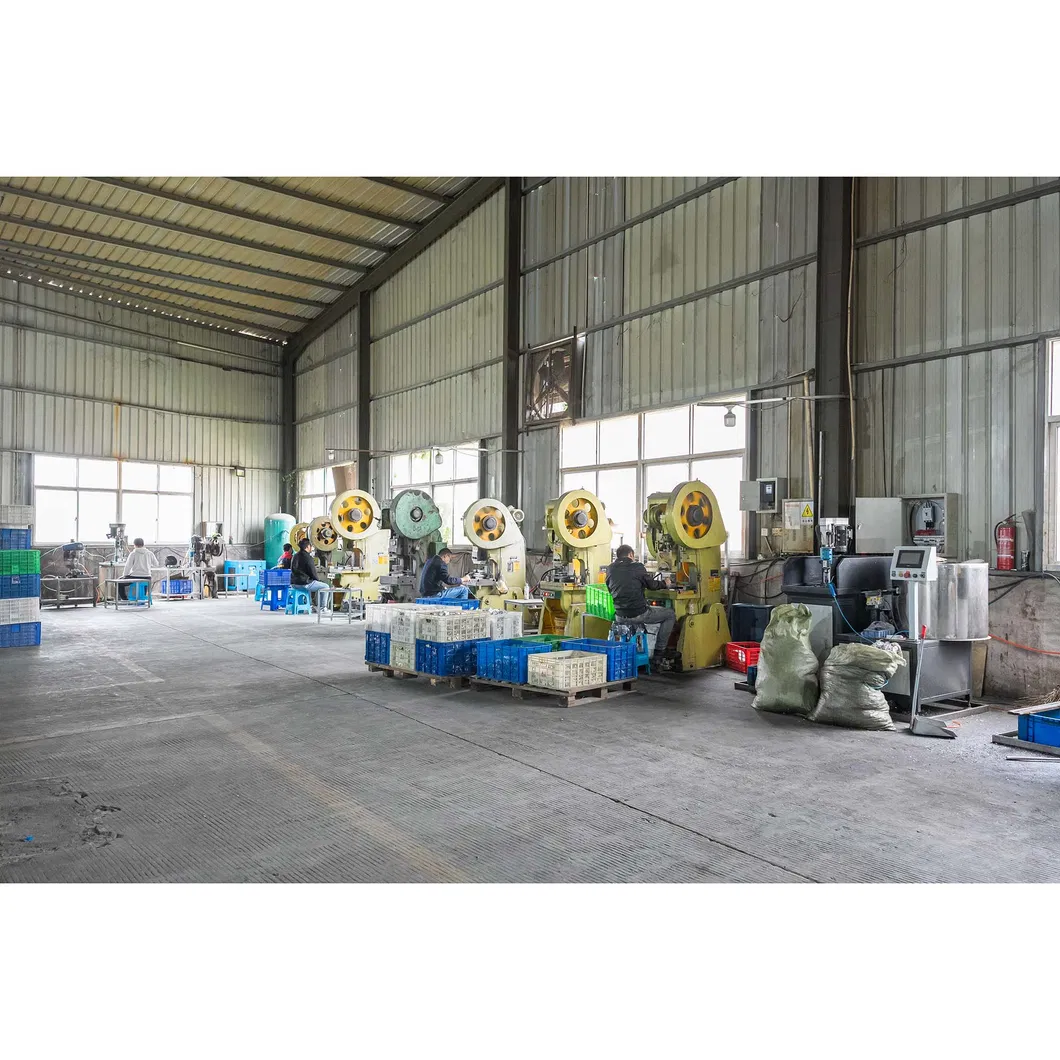

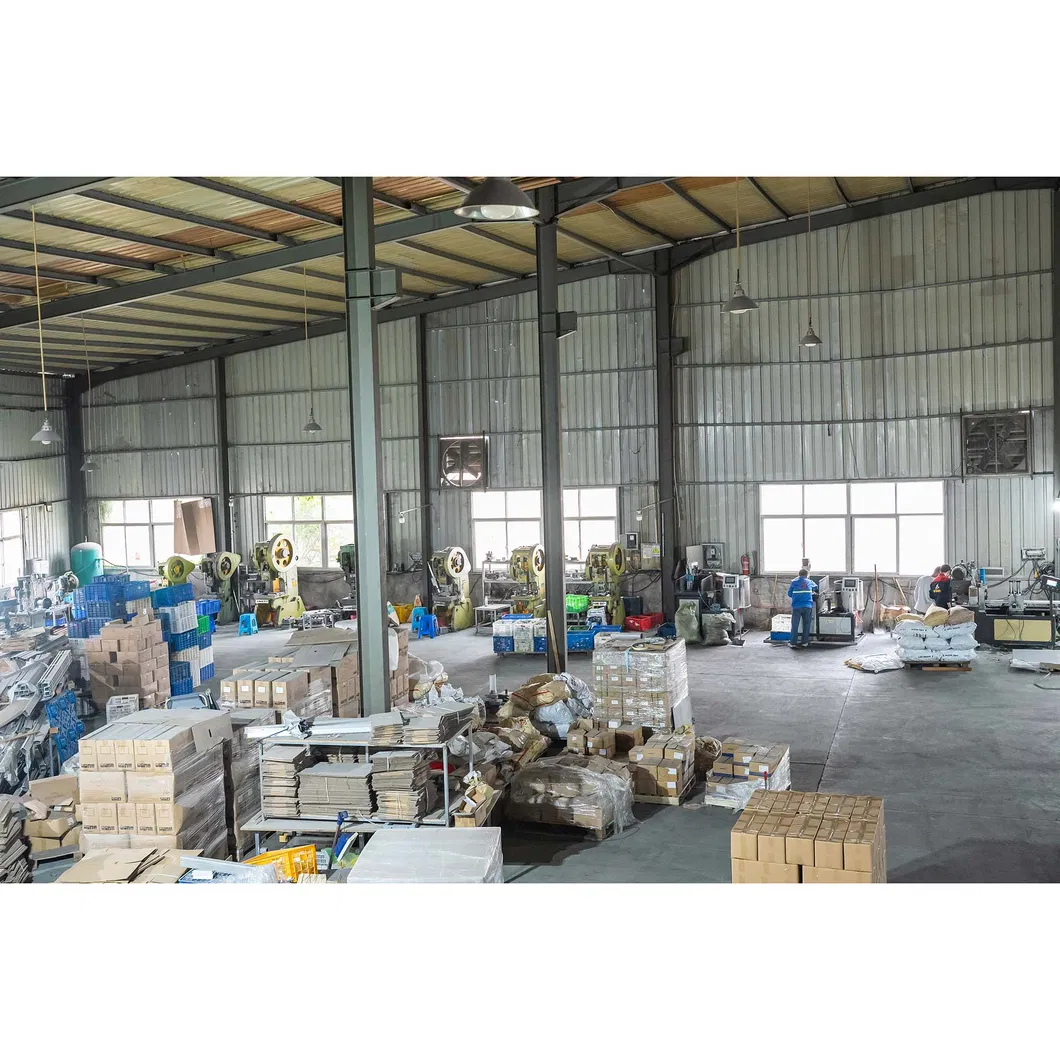

Aluminum Material Workshop: Our professional processing workshop handles cutting, drilling, stamping, and forging independently. The team excels in high customization and precision requirements.

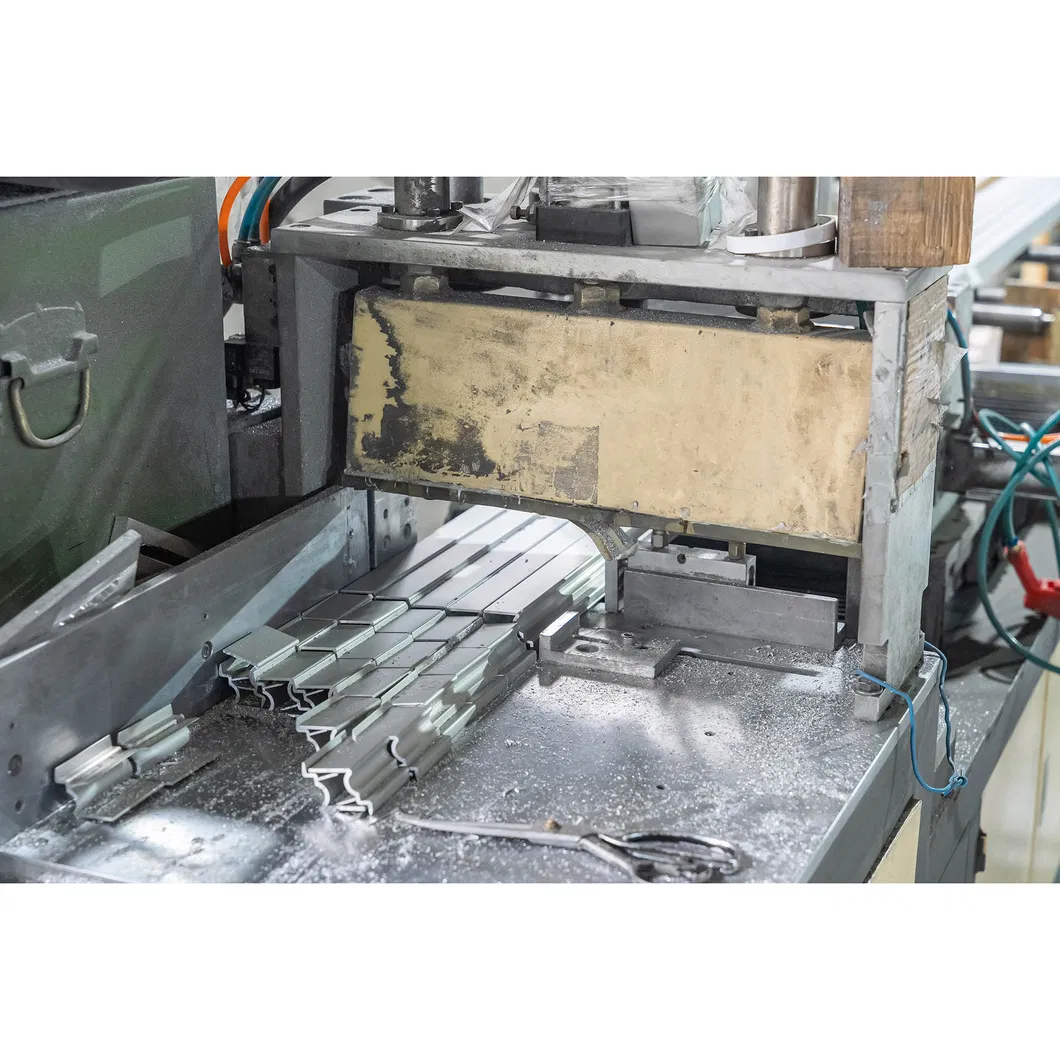

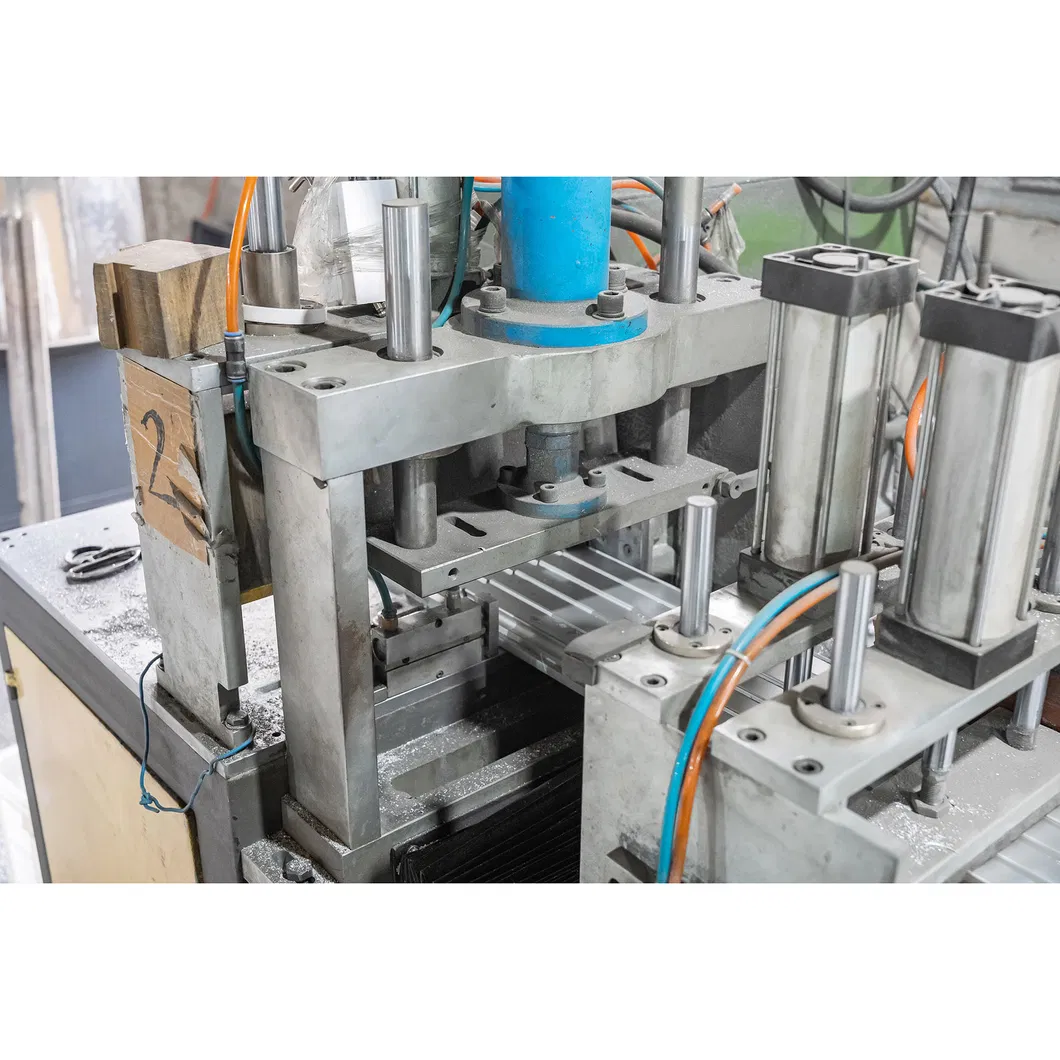

Steel Material Workshop: Equipped for professional Steel, Magnesium Aluminum Zinc, S350GD, and S450GD processing. With 6 production lines and various molding machines, we achieve a productivity of 40-50MW per month.
