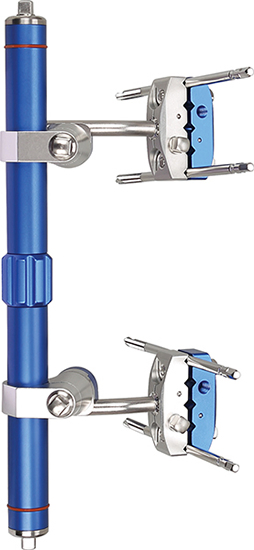

Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator
1 / 5
Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator
Orthopedic Stainless Steel Femur Fixator

Orthopedic Stainless Steel Femur Fixator

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Information

Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
Origin
China
HS Code
90211000
Production Capacity
500,000 Pieces/Year

Product Description

External Fixator-- Modular Fixation External Fixation System

Orthopedic Stainless Steel Femur Fixator
◈Distinguished by cutting-edge technology and user-friendly operation.
◈Allows independent arrangement of bone screws for both proximal and distal fractures.
◈Incorporates a snap-fit design that streamlines procedures and saves valuable time.
◈Enhances fracture visualization using premium medical aluminum carbon fiber.
◈Delivers optimal stability and flexibility adapting to unique patient needs.
◈Engineered for a compact frame, making it easy to manage.
◈Designed to address complex fractures and soft tissue loss.

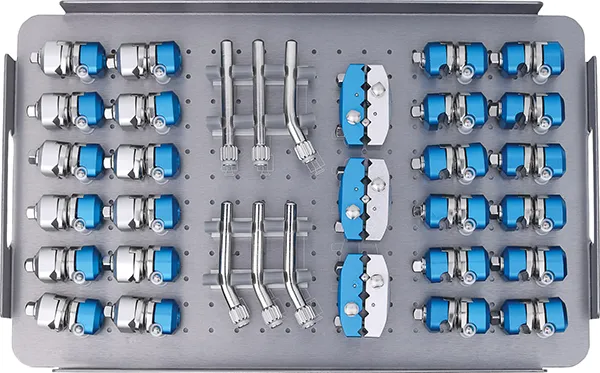

Femur Fixator Detail 1

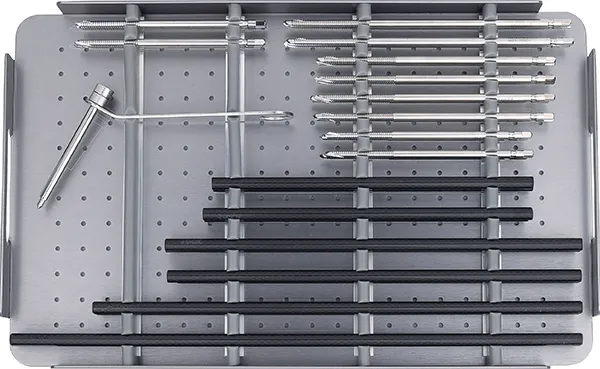

Femur Fixator Detail 2

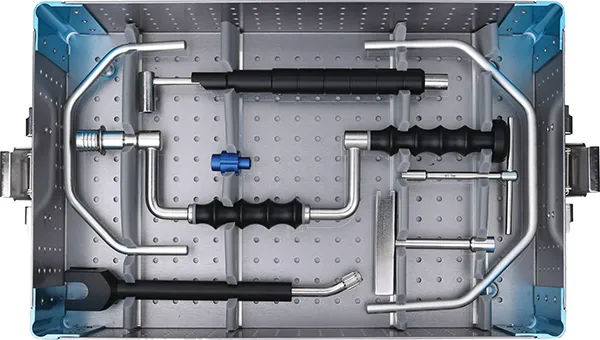

Femur Fixator Detail 3
Component Name Specification Quantity
Pin To Rod Couplingφ8/4-512
Rod To Rod Couplingφ8/812
5-Hole Pin Clampφ8/53
Straight Postφ82
30° Postφ84
Self Drilling/Self Tapping Bone Screwsφ5*180 / 150 / 130 / 12020 Total
Guidesφ4/51
Carbon Fibre Rodφ8*350 / 300 / 250 / 20012 Total
Semi-Circular Curved Connecting Rodφ8*160 / 2002
Wrench Set (T-Wrench, Reduction, Torque)#7 / #223
Surgical Instruments (Drill, Driver, Wheel)Various4

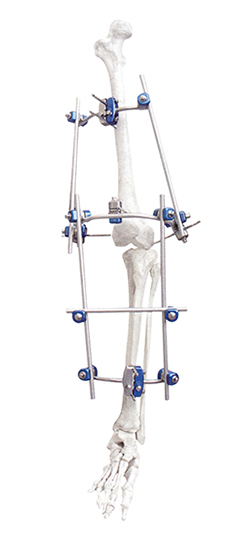

Knee Joint Fixator

Knee Joint Fixator System

Rod to Rod Coupling φ8/810 Pcs
Pin To Rod Coupling φ8/4-53 Pcs
5-Hole Pin Clamp φ8/52 Pcs
Connecting Rods (Various)5 Pcs
Bone Screws 5*150mm7 Pcs
Knee Joint Fixator Type B

Knee Joint Mobilizer Type

Knee Joint Mobilizer φ81 Pc
Carbon Fibre Rod 8*150mm1 Pc
Bone Screws 5*150mm6 Pcs
ApplicationKnee Joint Rehabilitation

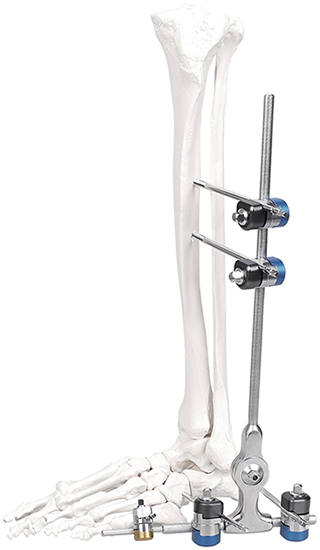

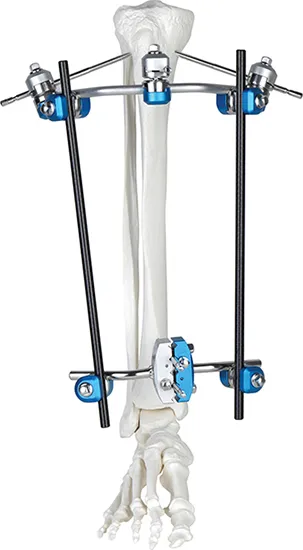

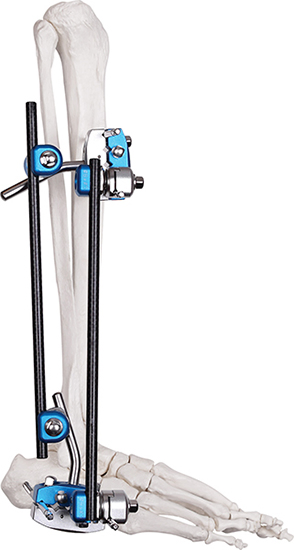

Ankle Joint Fixator

Ankle Joint Fixator

Ankle Joint Mobilizer φ81 Pc
Pin To Rod Coupling φ5/41 Pc
Bone Screws 3*80mm / 5*150mm5 Pcs
ApplicationTibia Perone Fractures
Micro-Motion Fixator

Micro-Motion Type Fixator

Compression/Distraction Rod φ201 Pc
5-Hole Pin Clamp2 Pcs
Bone Screws 5*150mm4 Pcs

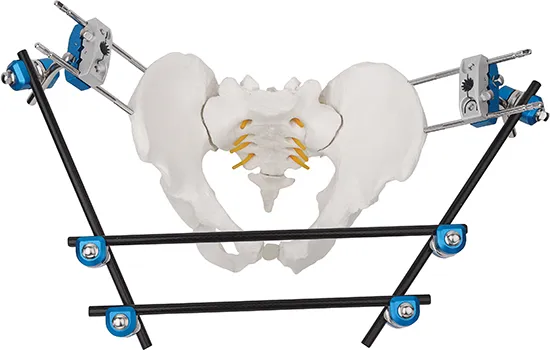

Pelvic Fixator

Pelvic Fixator

Rod To Rod Coupling6 Pcs
Carbon Fibre Rod4 Pcs
Bone Screws 5*150mm4 Pcs
ApplicationPelvic Fractures

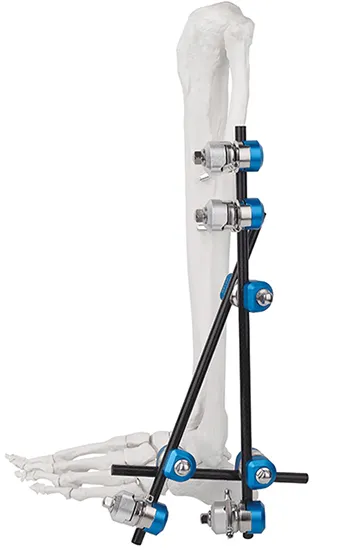

Ankle Joint Type B

Advanced Ankle Fixator

Carbon Fibre Rods (Various)3 Pcs
Bone Screws 5*150mm / 4*130mm4 Pcs

Frequently Asked Questions

What materials are used in the External Fixator system?
The system is constructed from high-quality Titanium Alloy, Stainless Steel, and Medical Aluminum Carbon Fiber to ensure optimal strength, stability, and lightweight performance.
Is this system reusable?
Yes, the external fixation frame components are designed to be reusable after proper sterilization, following standard medical protocols.
How does the "Snap-fit" design benefit the surgery?
The snap-fit design allows for faster assembly and adjustment during surgical procedures, significantly reducing operative time and improving workflow efficiency.
Does the carbon fiber rod interfere with X-rays?
No, the use of premium medical carbon fiber rods provides excellent radiolucency, allowing for clear fracture visualization and monitoring under X-ray without interference.
What types of fractures can be treated with this system?
The modular design is highly versatile and can be used for femur, knee, ankle, pelvic, and tibia fractures, including complex cases involving soft tissue loss.
Are the bone screws self-tapping?
Yes, the system includes self-drilling and self-tapping bone screws to simplify the insertion process and ensure secure fixation into the bone.
