Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
1 / 5
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement
Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization: Available
Type: Power Drill
Kind: Orthopedics
Send Inquiry

Product Description

📋

Basic Information

Model NO.
ND-3511
Certification
CE, ISO13485
Group
Adult
Operating Principle
Total Hip Replacement
Product Name
Surgical Power Drill
MOQ
1 Set
Advantage
Professional Manufacture
Warranty
2 Years
Motor
Brushless Motor
Classification
Class II
Sterilizing Time
About 20 Mins
Working Voltage
14.4V
🔧

Product Overview

These medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. Designed for K-wires or intermediary interlocking nail surgery and arthroscopic surgery. The whole unit is autoclavable, featuring an imported motor that ensures low noise, high speed, and long service life. This machine supports various flexible reamers and chucks easily during surgical processes.

📊

Technical Data

Working Voltage14.4V
Output Power130W
Unit rise in Temperature≤ 25ºC
Input VoltageAC 220V, 50Hz
Charging time3 hours
Speed300r/min
Non-loaded noise63dB(A)
Torque33000gcm
🌟

Technical Merits

  • Specifically designed for joint operations.
  • Low speed with great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
  • Main unit can be sterilized by high temperature and pressure up to 135 ºC.
  • Portable design with variable speed control and brushless motor for increased power.
  • Scientific balance technics reduce vibration and enhance handpiece control for comfortable operation.
  • High concentricity ensures precision during HIP operation polishing.
📦

Standard Configuration

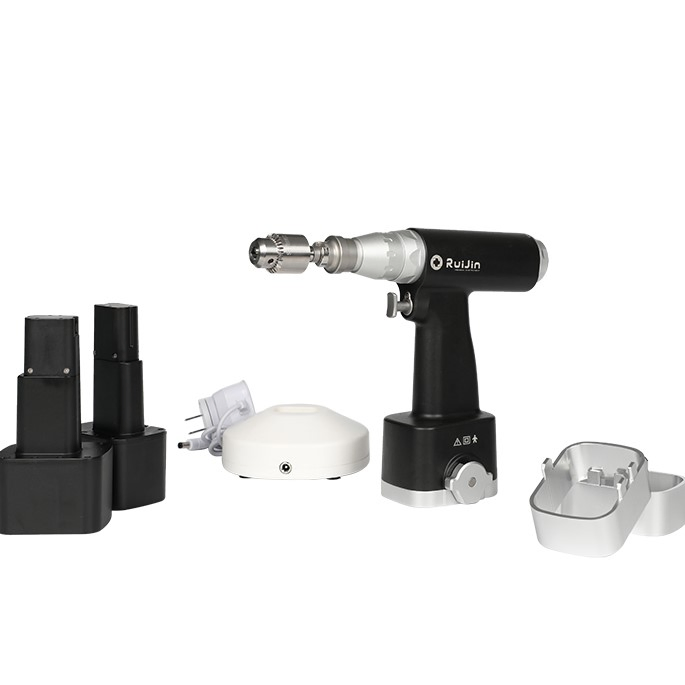

Standard set includes: Handpiece, Charger, Two Batteries, Sterilizing Channel, Drill Chuck, and Aluminum Alloy Box.

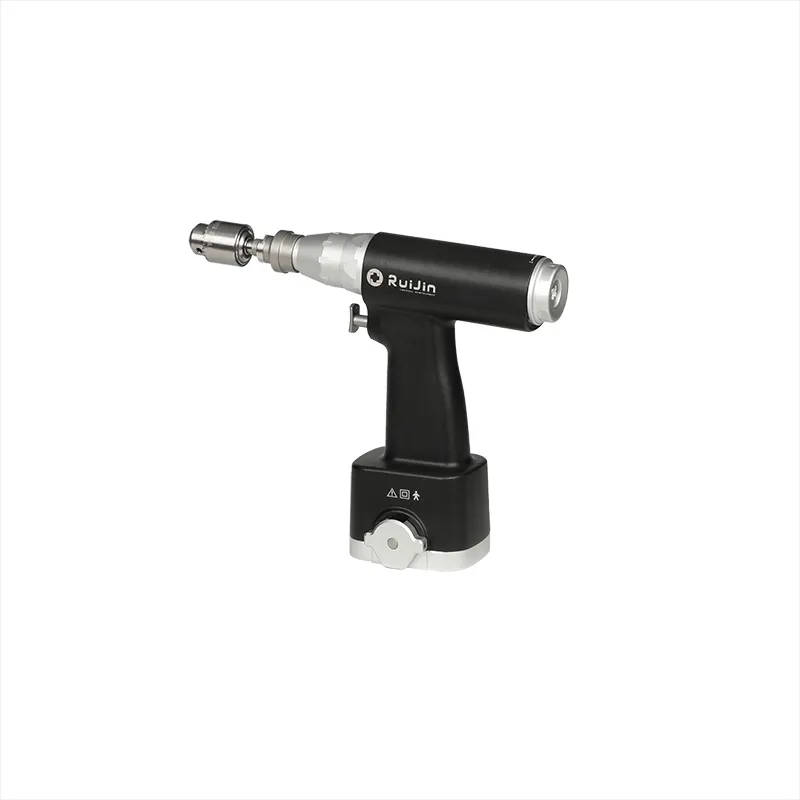

Surgical Power Drill
Hip joint drill with various adaptors

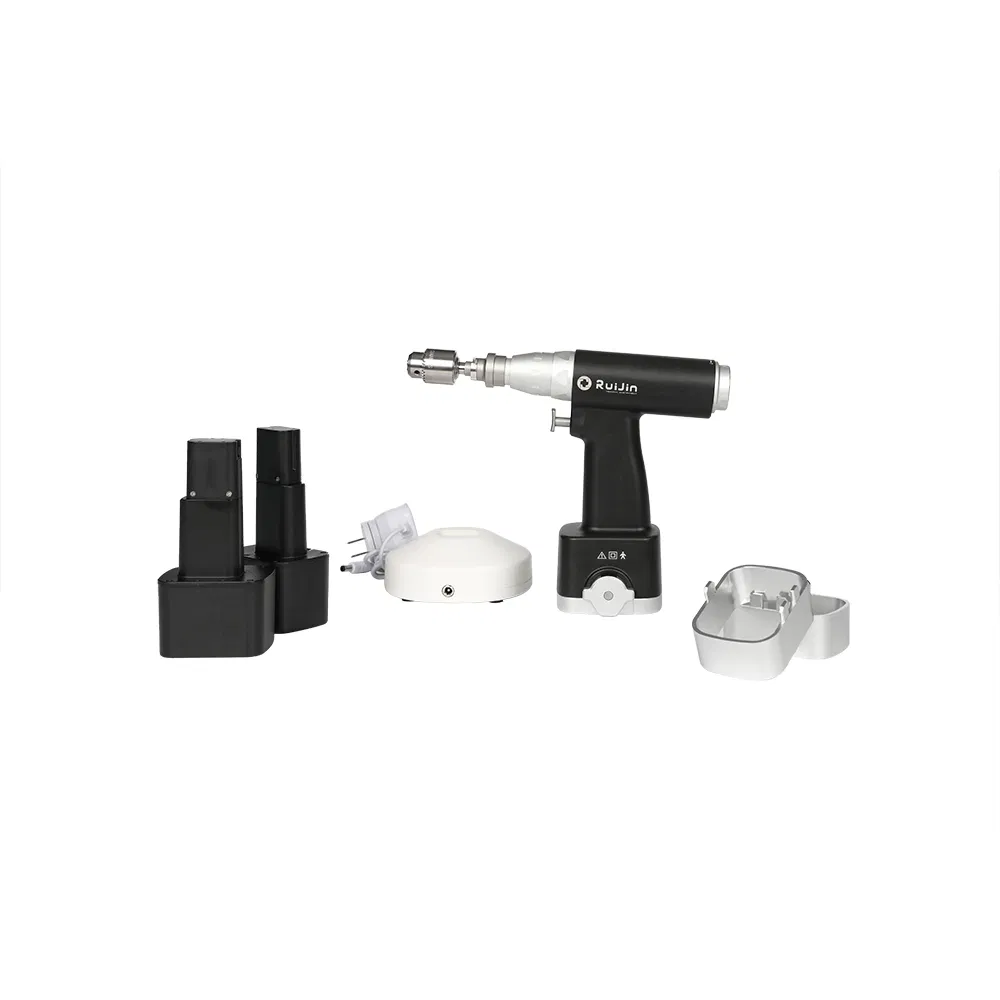

Battery Set
Powerful dual battery system

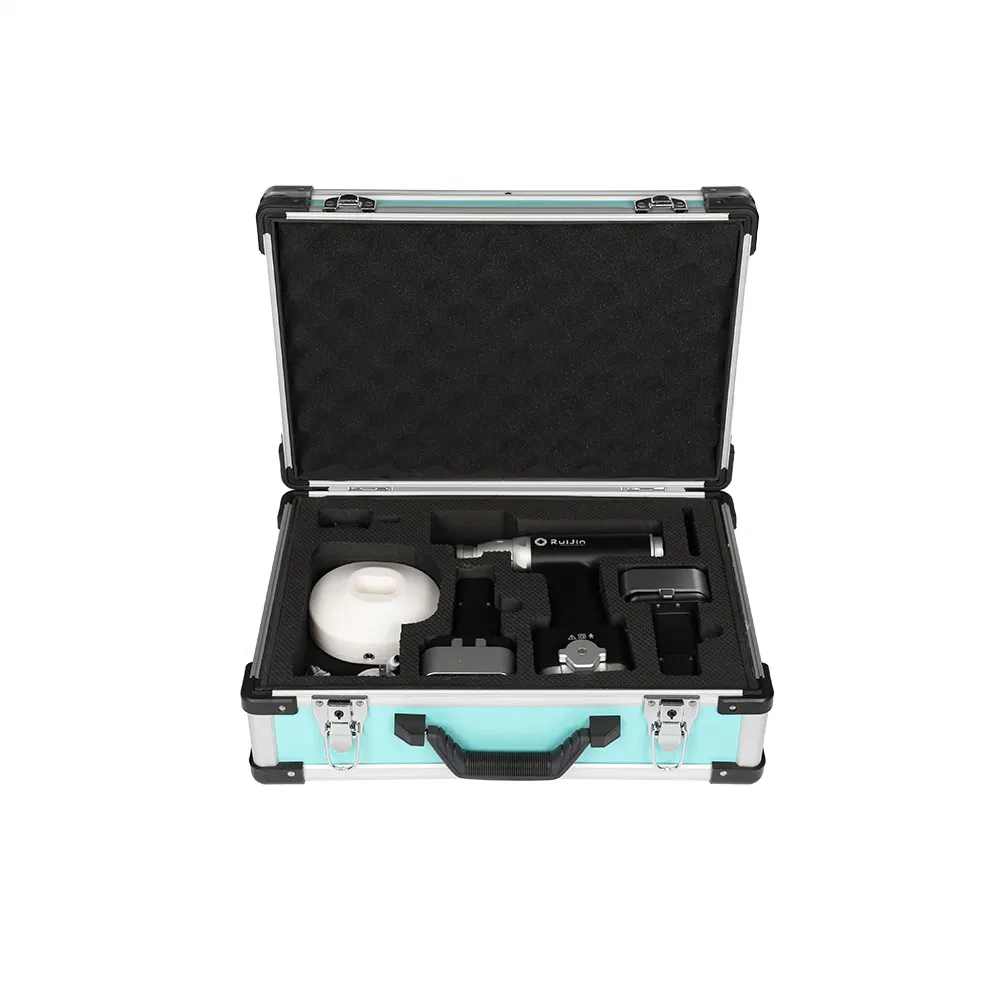

Packaging
Aluminum case for shipping protection

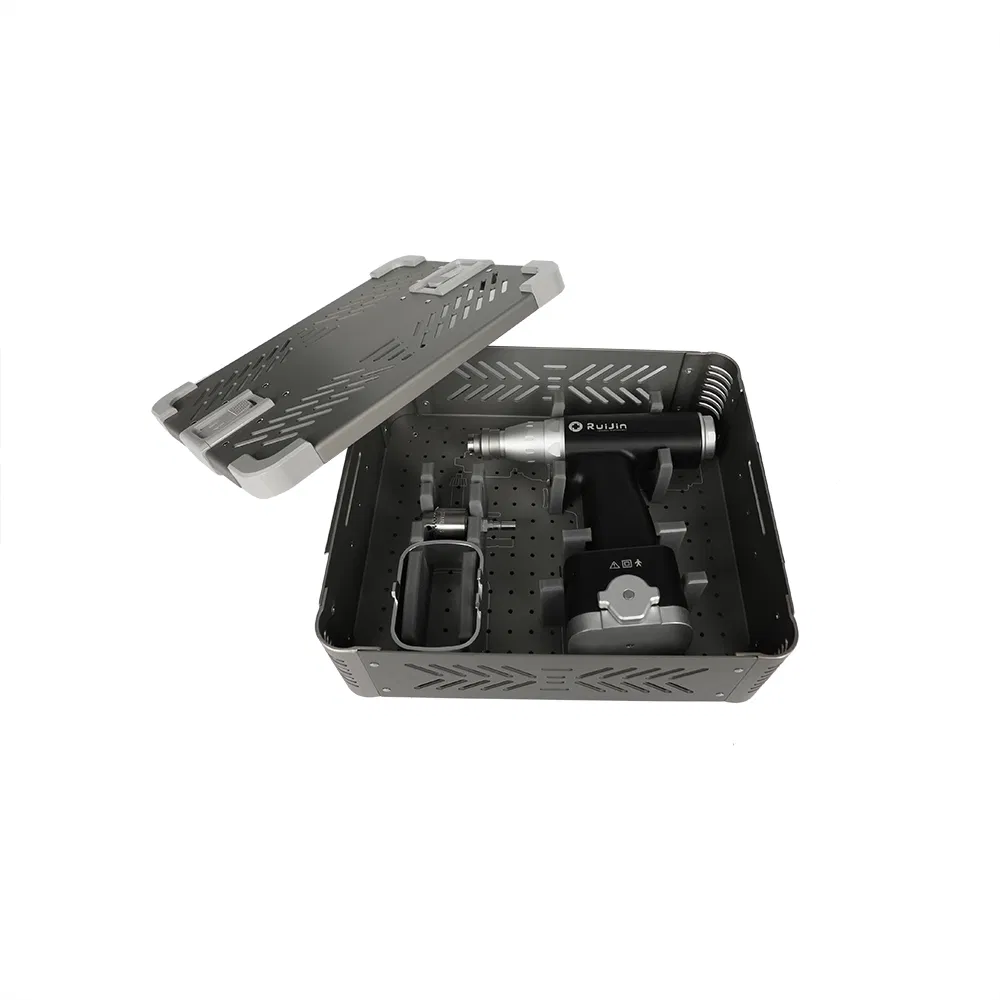

Sterilization Tray
Optional sterilization tray
📜

Quality Assurance

Certificates
⚠️

Important Notes

SterilizationTemperature must be lower than 135°C to avoid motor damage.
Battery CareRemove battery from handpiece when not in use; do not disinfect batteries.
MaintenanceClean blades and drill bits with purifier and keep dry after operation.
PowerCompatible with 110V/60Hz - 220V/50Hz power sources.
❓

Frequently Asked Questions

What are the primary applications for this surgical drill?
It is widely used in Trauma, Joint, Orthopedic, Neurosurgery, and Veterinary surgeries.
Is the entire unit waterproof or autoclavable?
The main handpiece is fully autoclavable up to 135°C, but the battery should not be disinfected or exposed to high moisture.
How long does the battery take to charge?
A full charge typically takes approximately 3 hours for the 14.4V system.
What is the warranty period for this device?
The product comes with a 2-year warranty for the main unit, backed by professional manufacture standards.
Can I use different adaptors with this drill?
Yes, it can be equipped with various optional adaptors such as Stryker, AO, Hudson, and Synthes types.
