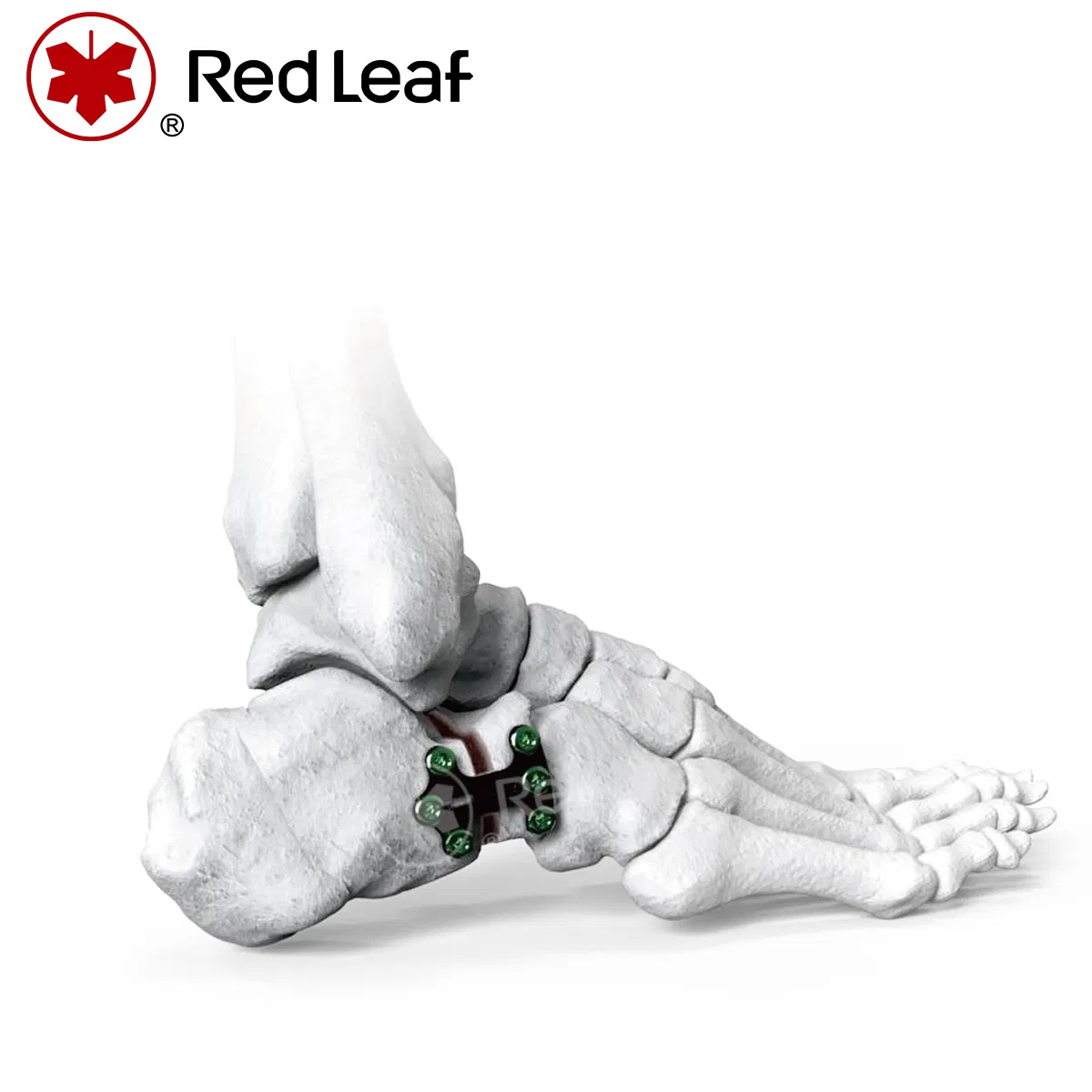

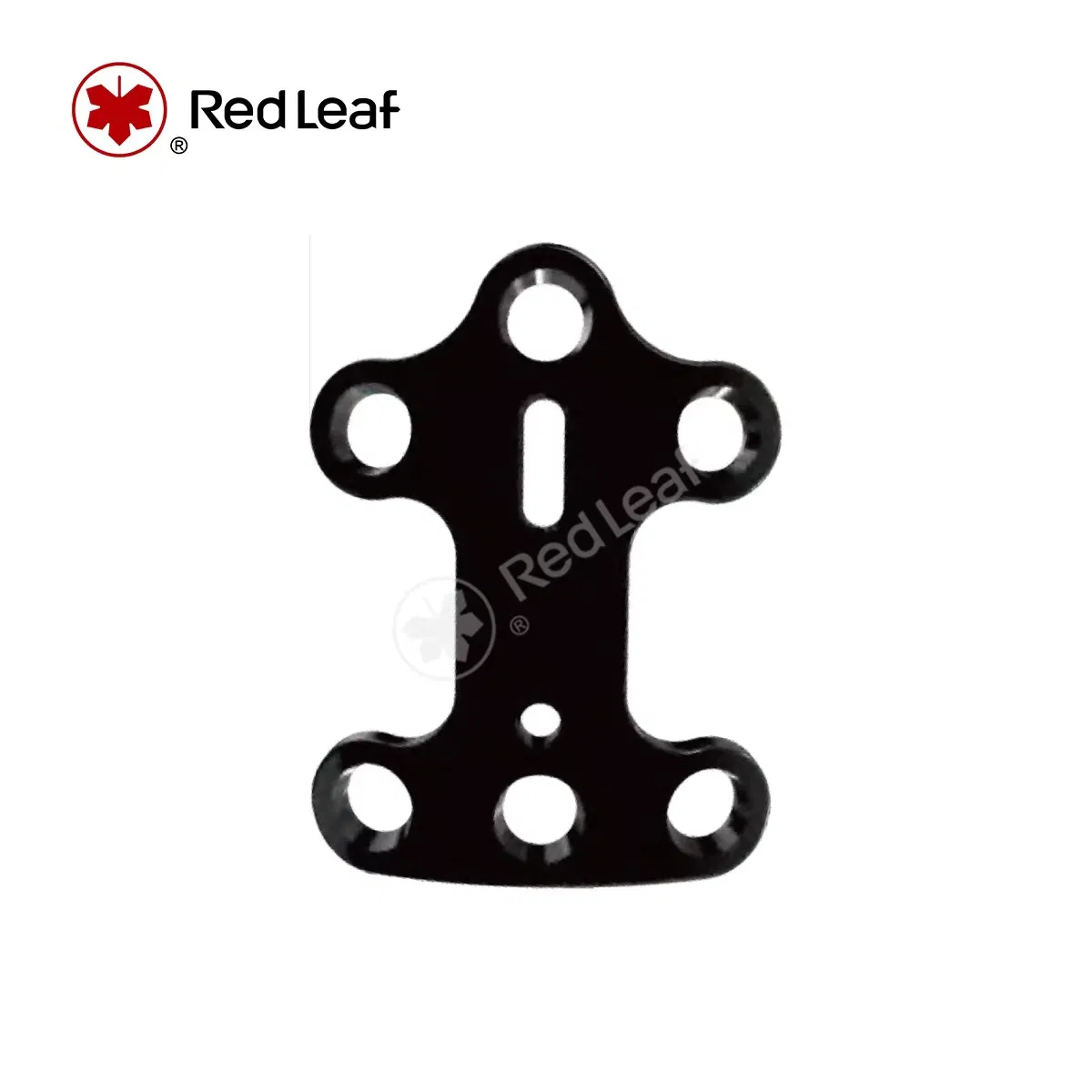

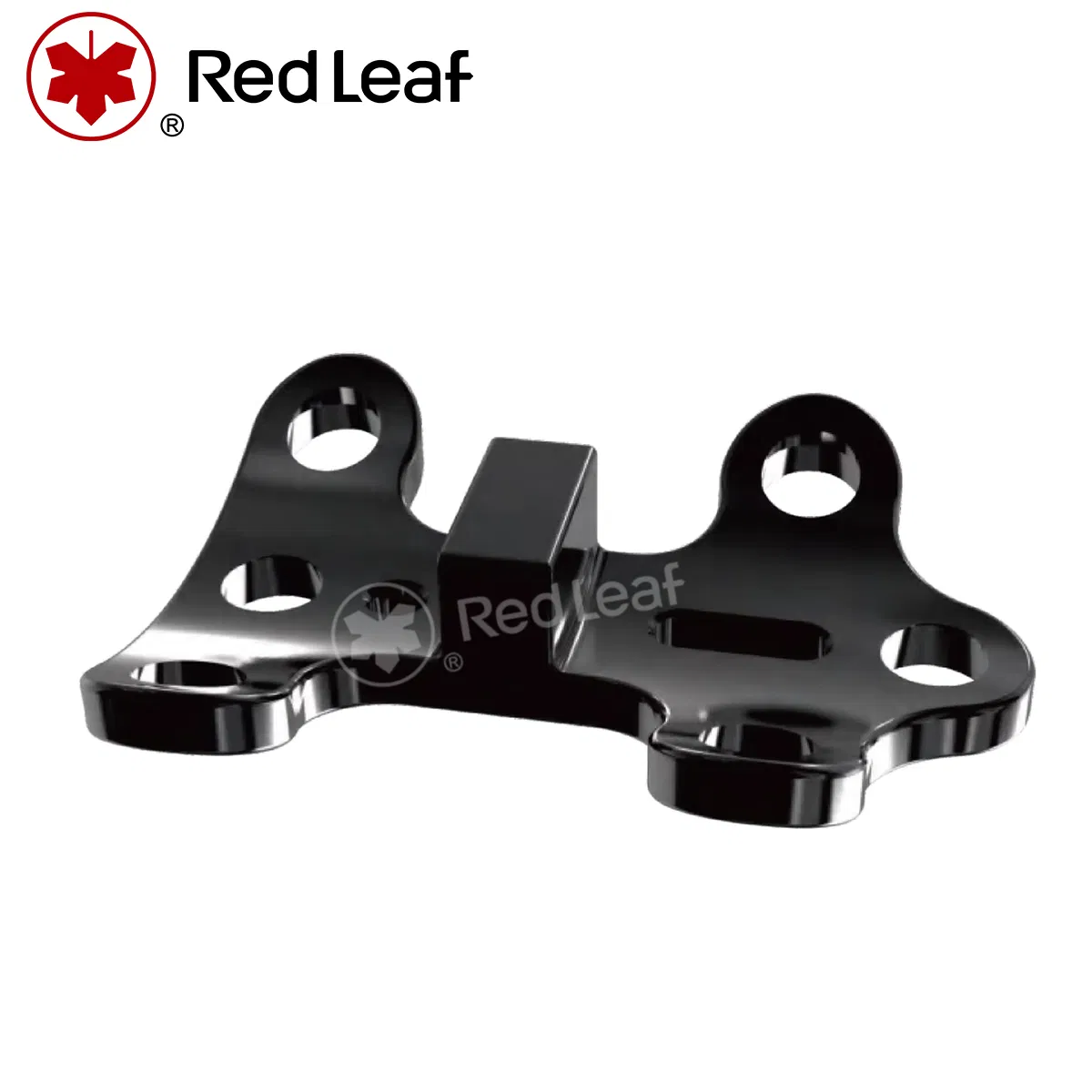

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Overview
Model NO.
Evans
Usage
Correct Deformities, Fracture Fixation
Package
Carton
Specification
30x23x2
Origin
China
⚙️ Product Description
Orthopedic Outer Pillar Brace Osteotomy Locking Plate
Design Concept
  • Suitable for flatfoot and valgus deformities
  • Transverse osteotomy of calcaneal neck
  • Distance between osteotomy surface and calcaneocuboid joint surface: 10-15mm

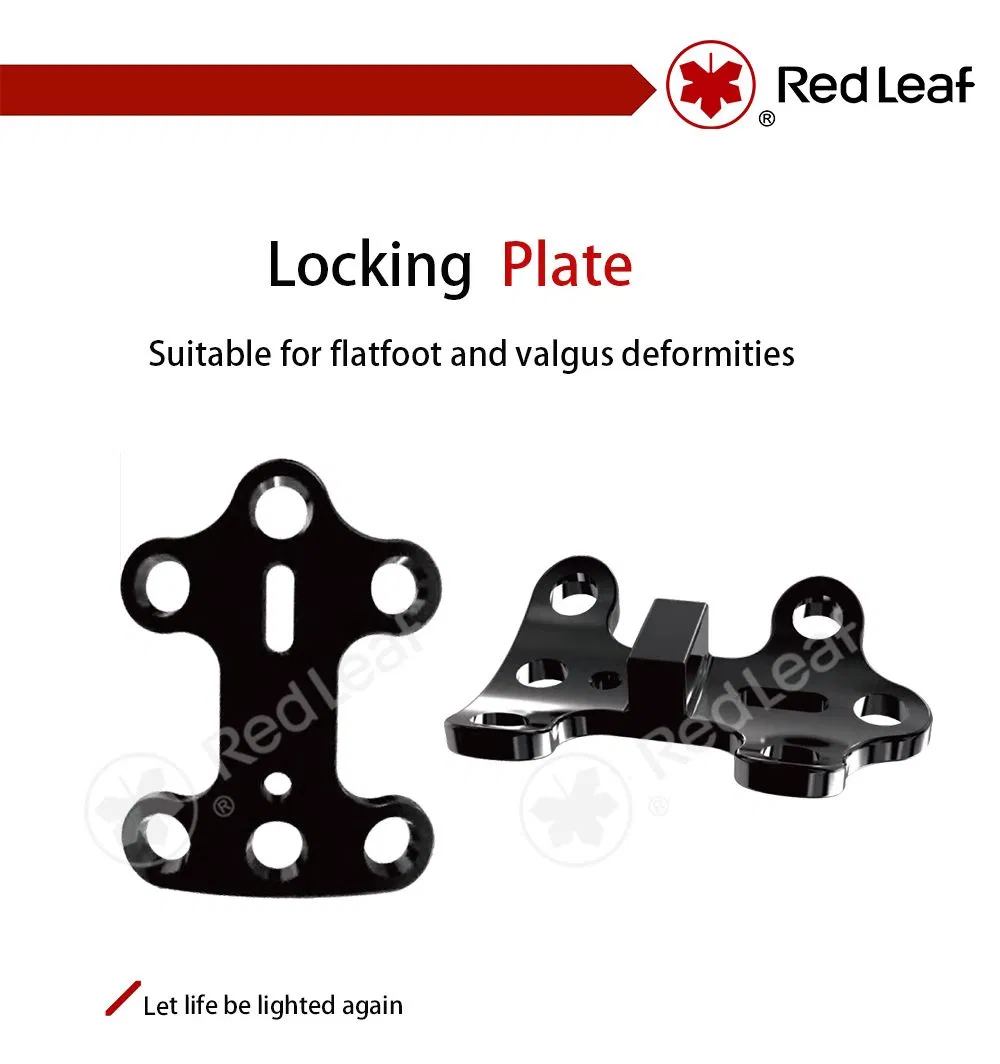

Design Concept Diagram
Key Points
  • Transverse osteotomy of the calcaneal neck (10-15mm from joint surface)
  • Controlled cutting speed to protect inner soft tissue
  • Evenly spread parallel openings to promote bone ingrowth and prevent non-union
Screw Information
  • Matching screw: 3.5 self-tapping locking screw
  • Length range: 6-40mm (2mm increments)
  • Kirschner wire: 1.9mm
  • Material: TC4 titanium alloy
📊 Product Parameters
Specifications Length Width Thickness Step Width Cushion Block Height
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Parameter Detail 1 Parameter Detail 2
🔍 Technical Details
Technical Layout
Application View Surgical Components
❓ FAQ
Q Are you a factory or trading company?
We are a Professional Manufacturer specializing in orthopedic surgical solutions and emergency equipment.
Q What are your standard trading terms?
Our standard terms include T/T 30% deposit after order confirmation, with the remaining 70% balance paid against the bill of lading, or via L/C.
Q What is the typical lead time for orders?
Normally, the lead time is within 15-25 days after the deposit has been received.
Q What does your after-sales service include?
We provide a 12-month warranty from the date of receipt. During this period, we supply free spare parts and technical guidance. Beyond the warranty, we continue to provide parts and guidance at cost.
Q Which quality certifications do you hold?
Our products are certified with FSC, CE, FDA, ISO9001, ISO13485, and EN1865.
Q Which port do you ship from?
Our primary shipping port is Shanghai, China.
