DTRX Orthopedic Implants
1 / 5

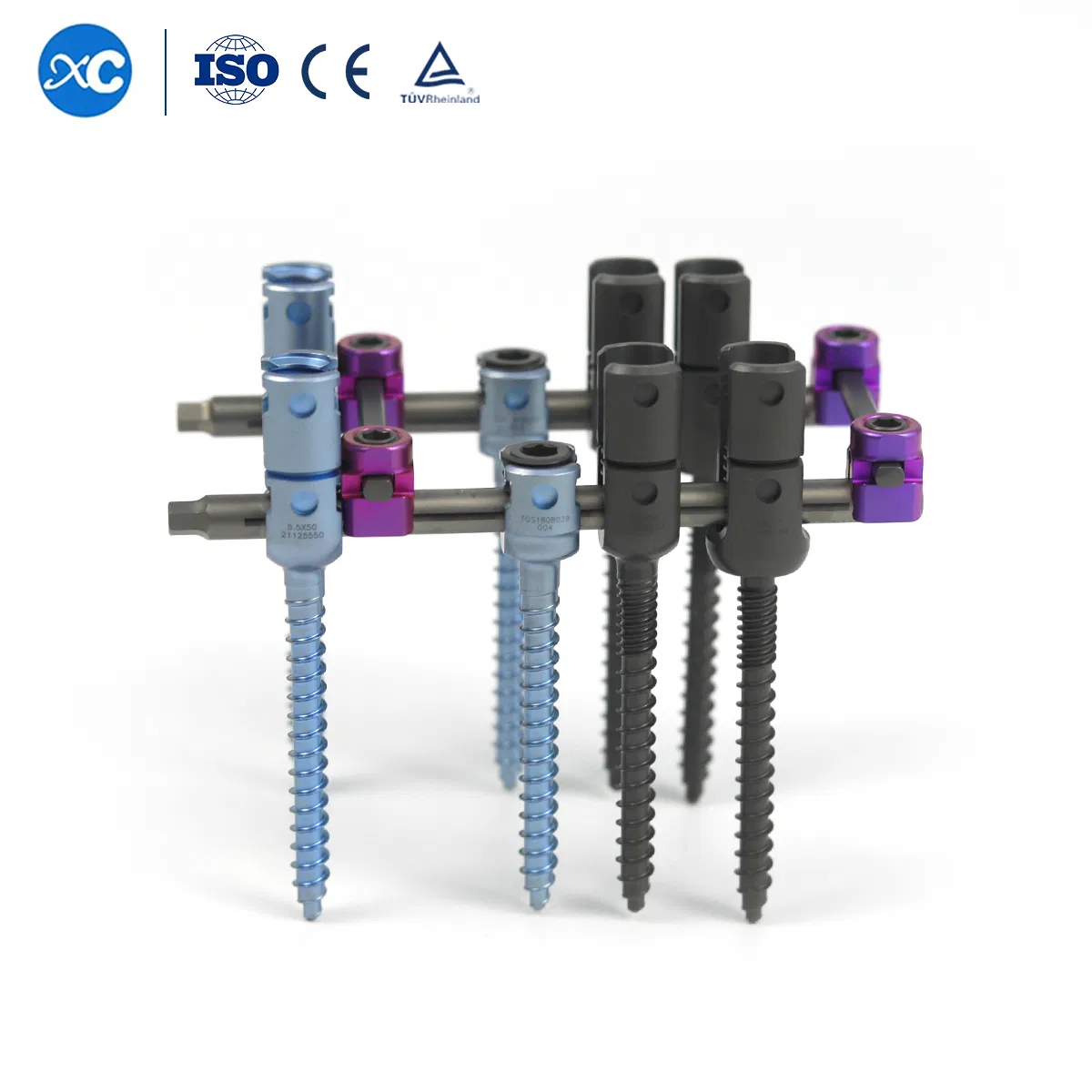

| Spinal Pedicle Screw System (6.0mm System) | |||||
|---|---|---|---|---|---|
| Monoaxial Pedicle Screw | Φ4.5×25-55mm | Monoaxial Reduction Screw | Φ5.0×30-45mm | Polyaxial Pedical Screw | Φ4.5×20-55mm |
| Φ5.0×30-55mm | Φ5.5×30-50mm | Φ5.0×30-55mm | |||
| Φ5.5×30-55mm | Φ6.0×35-50mm | Φ5.5×30-55mm | |||
| Φ6.0×30-55mm | Φ6.5×35-50mm | Φ6.0×35-55mm | |||
| Φ6.5×30-50mm | Φ7.0x35-50mm | Φ6.5×30-50mm | |||
| Φ7.0x35-55mm | - | Φ7.0x35-50mm | |||
| Iliac Pedicle Screw | Polyaxial Reduction Screw | Φ5.0×30-40mm | Rod | Φ6.0×100mm | |
| Φ5.5×30-50mm | Φ6.0×200mm | ||||
| Φ6.0×35-50mm | Φ6.0×300mm | ||||
| Φ6.5×35-40mm | Φ6.0×400mm | ||||
| Φ7.0x35-50mm | - | ||||
Comprehensive Screw Offering: 4.0mm-7.5mm range. Multiple curve correction and derotation options with cortical/cancellous threads ensure strong, reliable fixation.

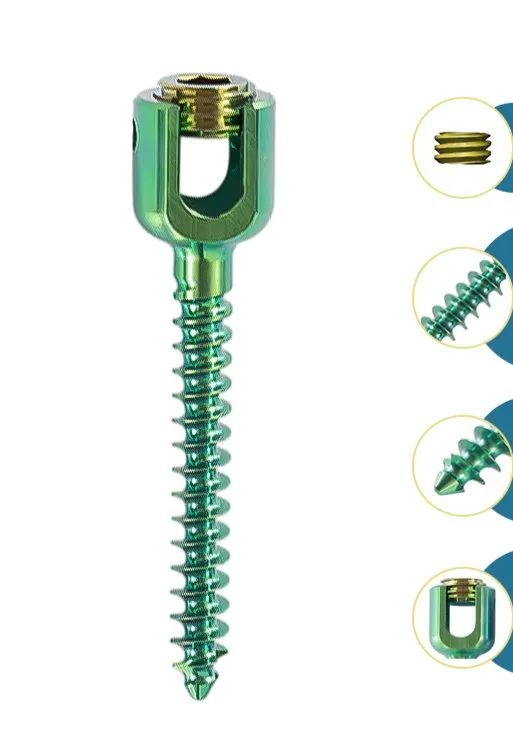

Self-Tapping Design: Dual lead, optimized threadform for fast delivery and superior pull-out resistance.
Structural Strength: Strong headbody handles heavy loads in kyphotic and scoliotic curves.

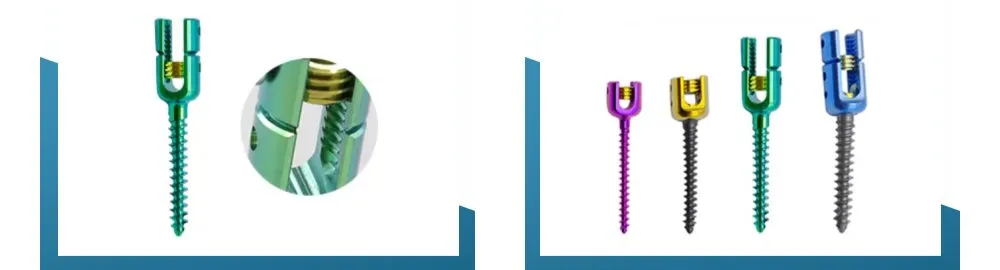

Extended tabs with notches on both sides facilitate tab removal and provide smooth break-off surface.

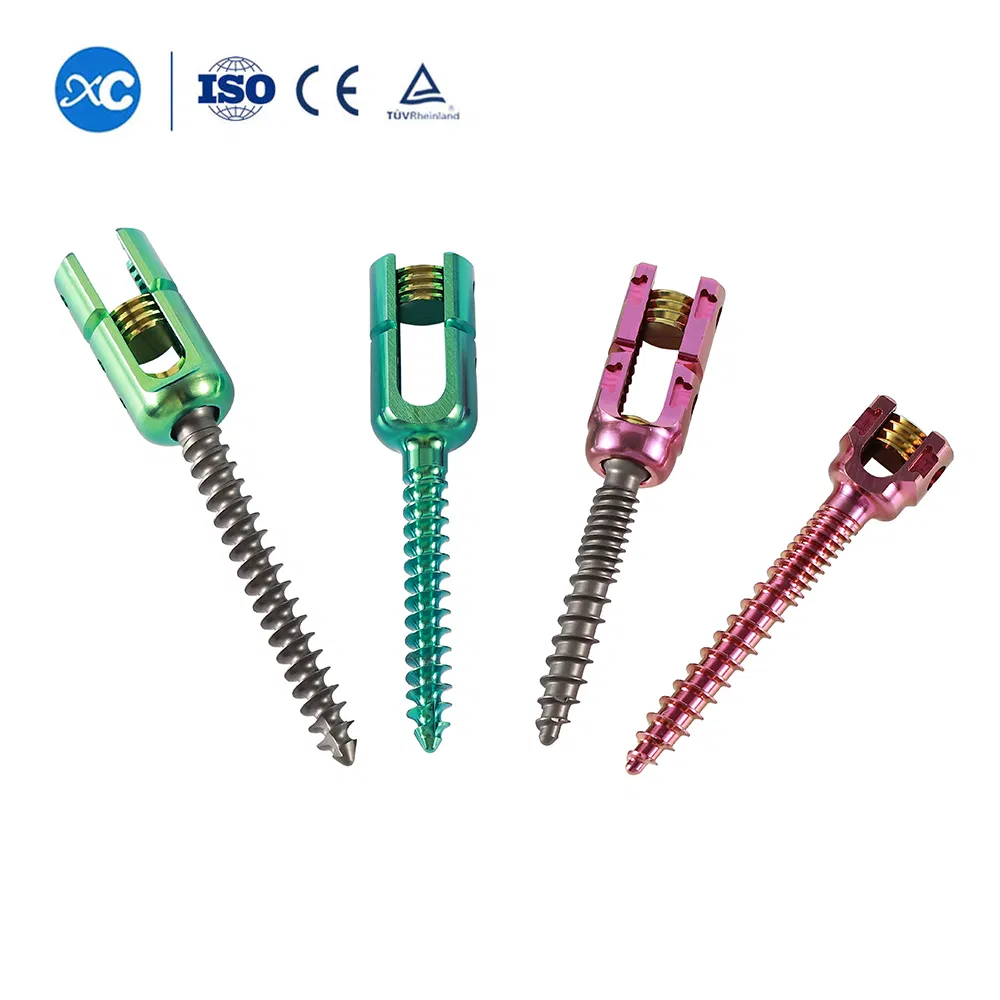

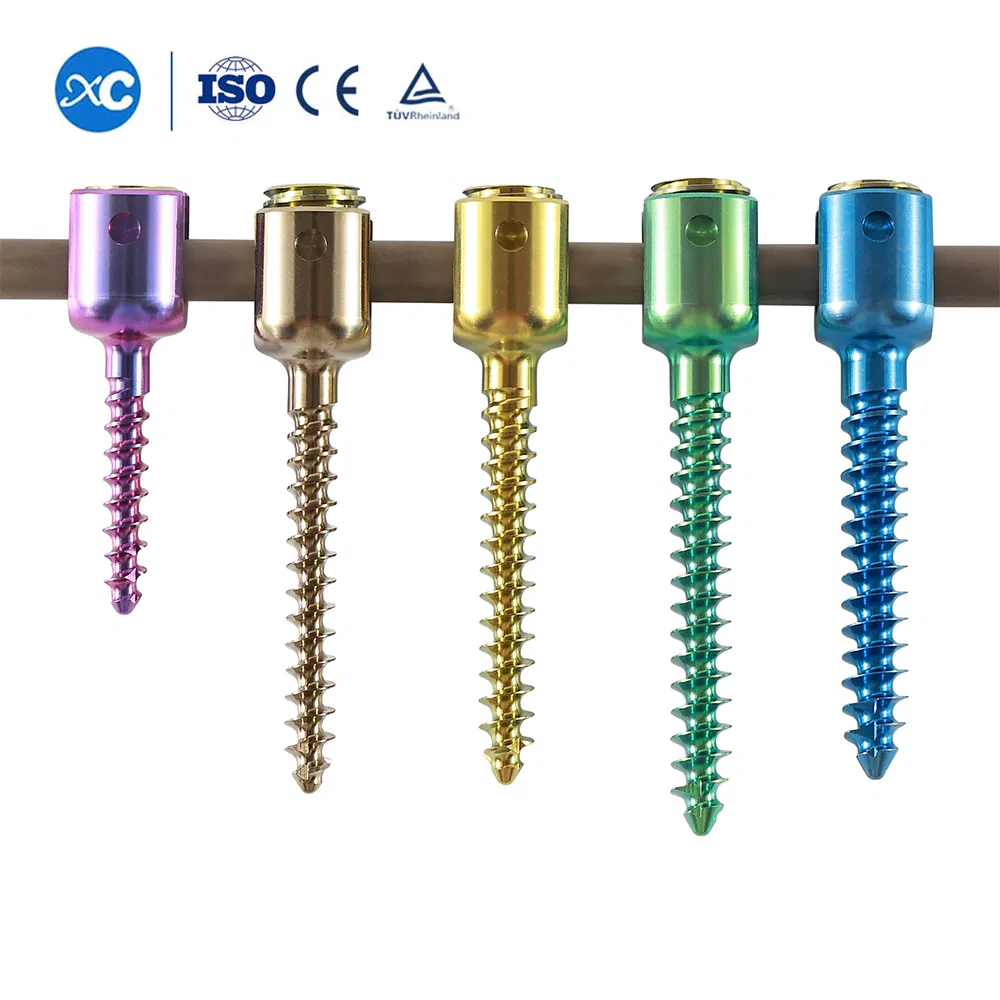

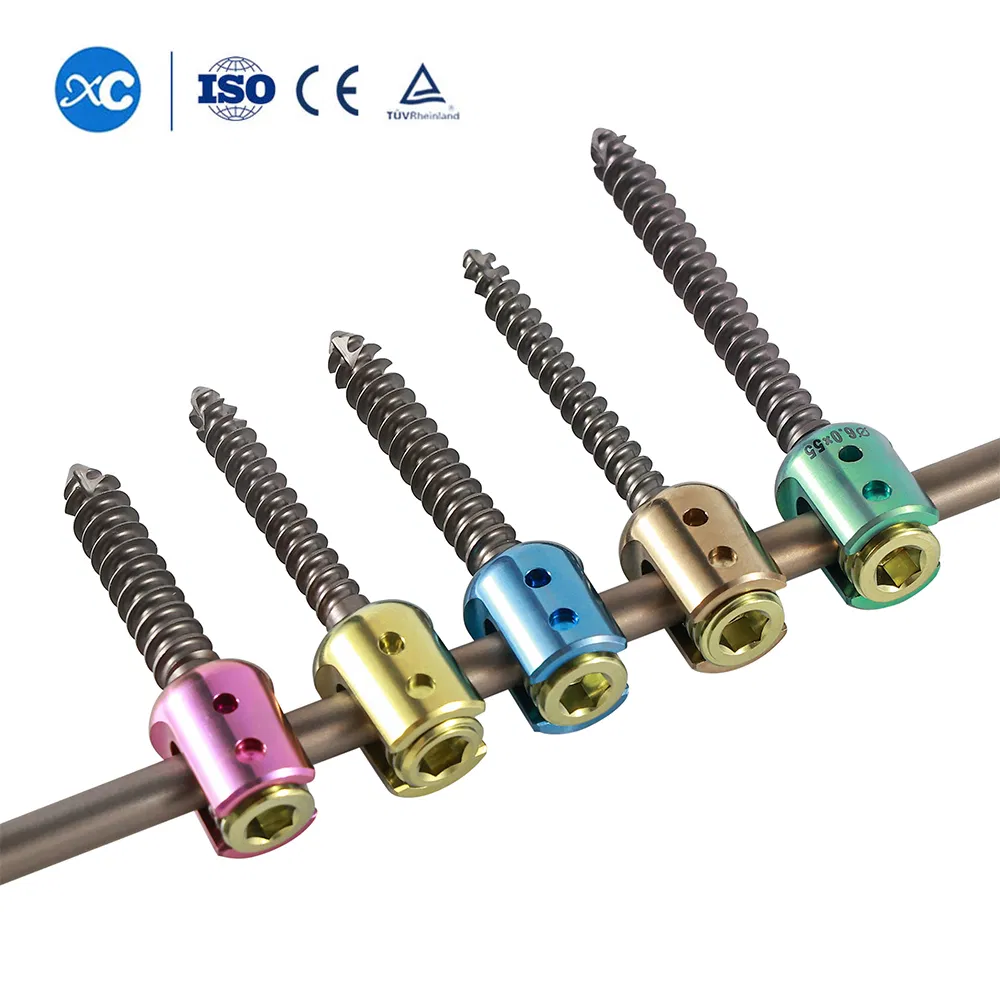

Different screw sizes with different colors for easy identifying during operation.

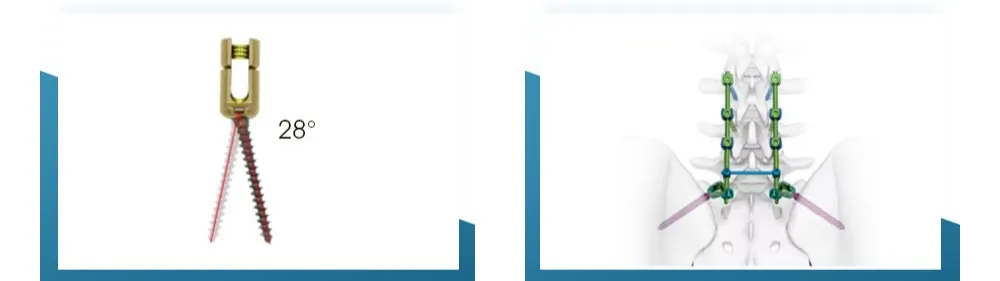

The maximum angle of polyaxial pedicle screw is 28 degree which facilitates placement of rod.
Large diameter Iliac Screws provided for sacroiliac reduction and internal fixation.

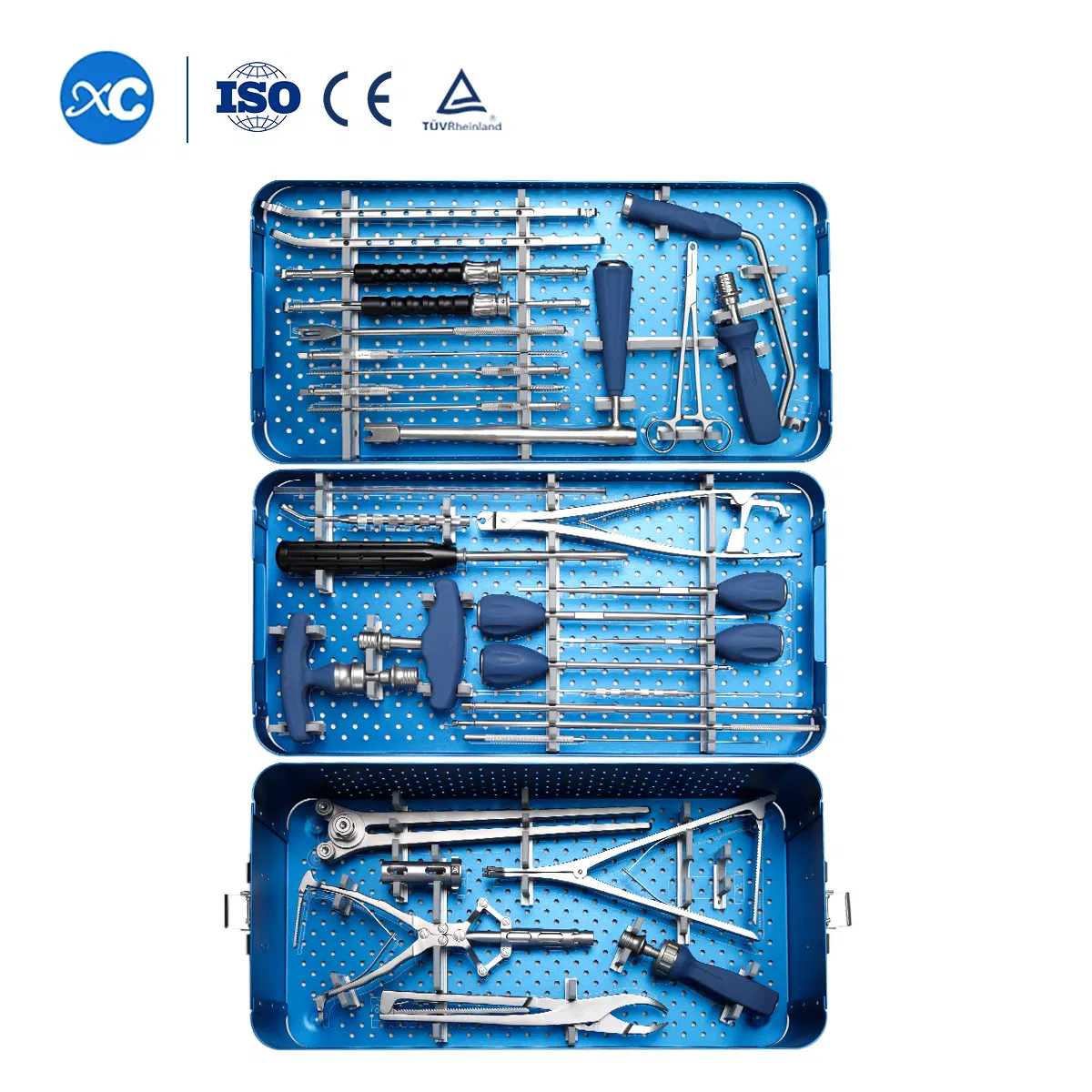

6.0mm Spinal Pedicle Screw System Instrument Set
