Magnesium Aluminum Zinc Ground Mounting Systems for Solar Panels:
This solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs are optimized. The support foundations include: straight into the ground, ground screws, and cement piers.
The double column structure can be ground bolt column or piling column. Ground screw posts allow for tiny height adjustments, while piling columns offer higher strength for various installation requirements.

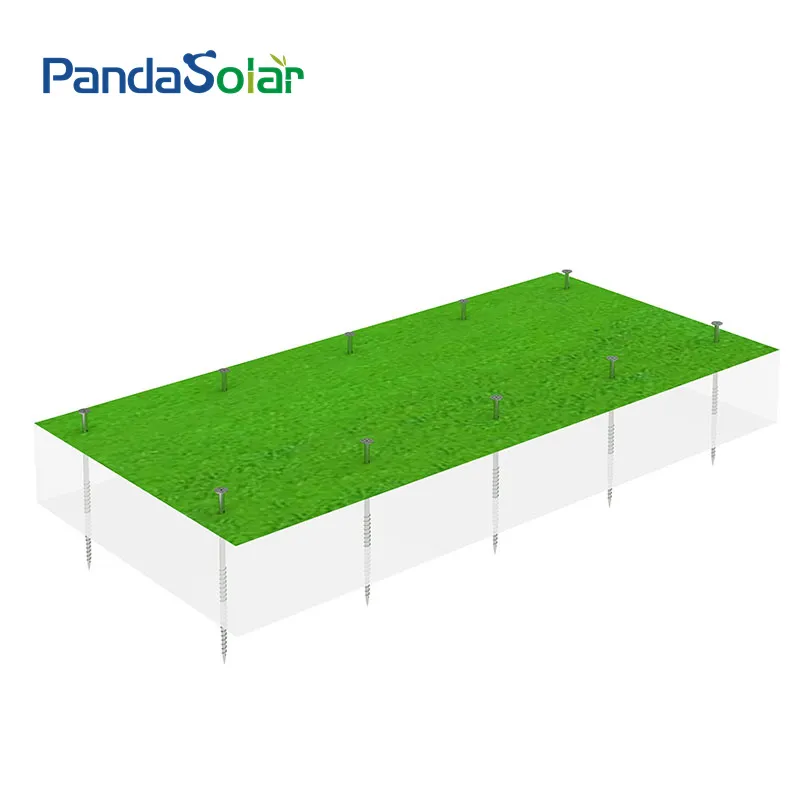

Step 1: Installing Ground Screws
The first step is to install the ground screws. These screws are used to anchor the support structure to the ground using specialized equipment. The depth depends on the soil type to hold the system weight.
Step 2: Install the Beams
After the foundation is set, install the beams. Connect the diagonal support pole to the top of the pole using bolts and nuts securely.

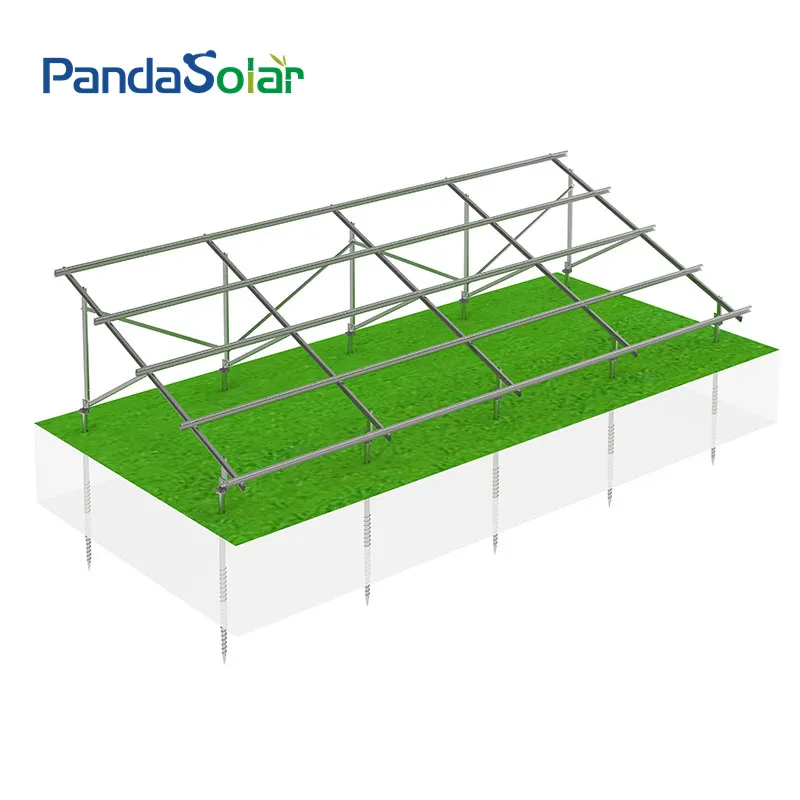

Step 3: Installing Rails
Attach the rail that will support the solar panels to the beam using brackets and bolts. Ensure that the rail is level before proceeding.

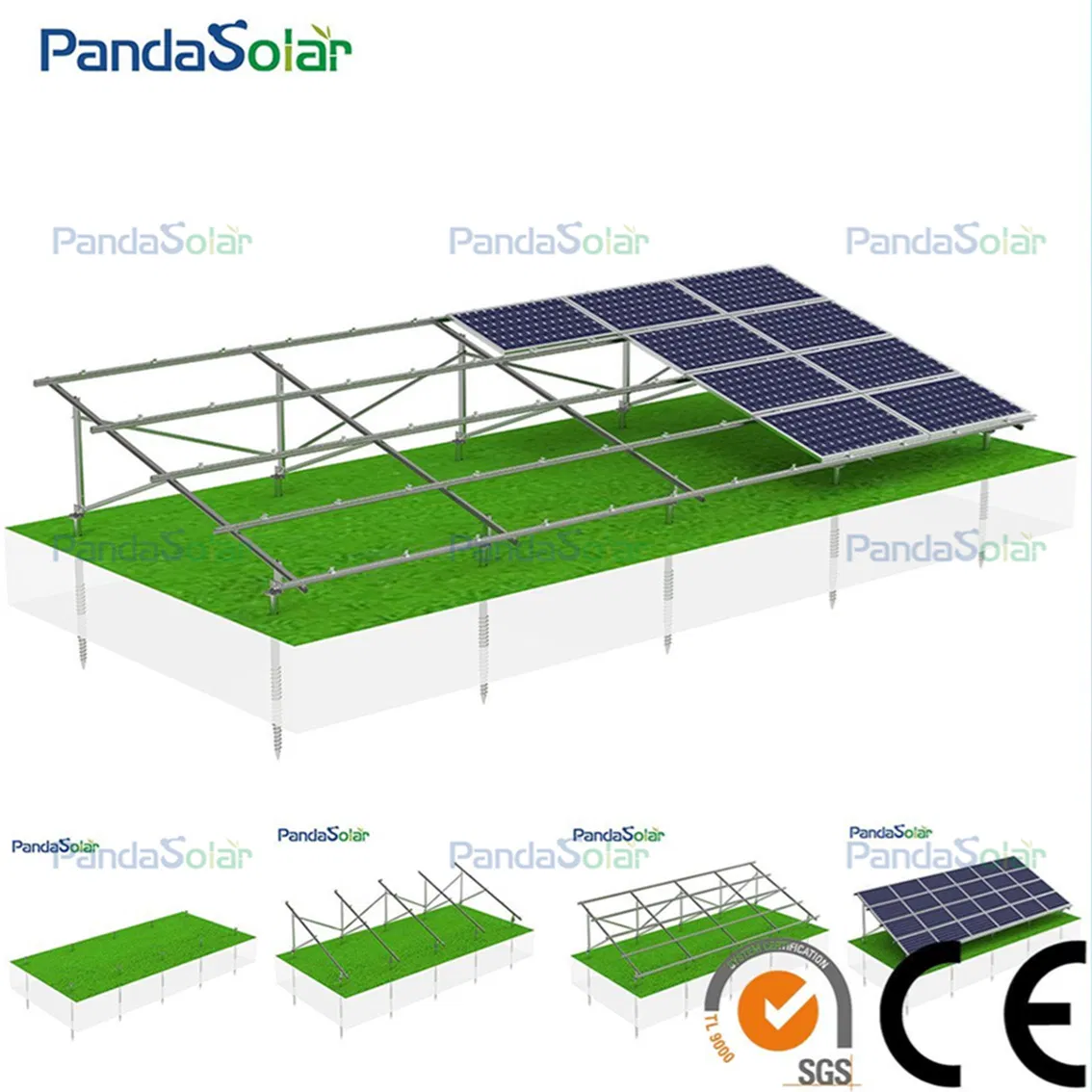

Step 4: Installing Solar Panels
Finally, attach the solar panels to the rail using mounting hardware. Ensure each panel is securely fastened.
| Material Structure | Mg-Al-Zn & AL-6005-T5 (Anodized) |
|---|---|
| Components | SUS304 & AI6005-5 (Anodized) |
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

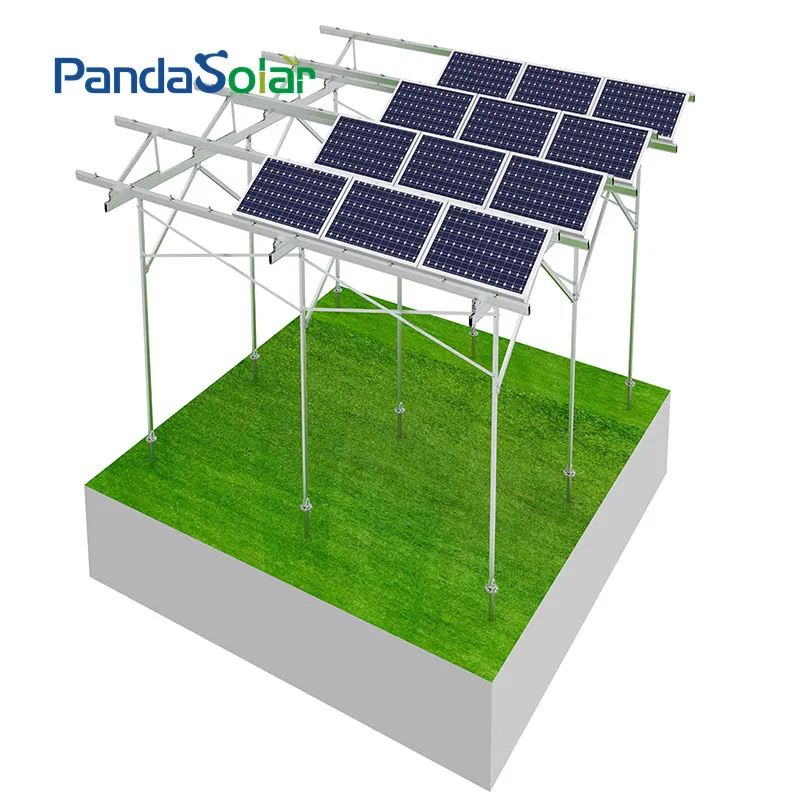

Specializing in the development of clean energy mounting systems, including ground, agricultural greenhouse, tile roof, metal roof, and carport solutions. Our products are widely used in Europe, Southeast Asia, the Middle East, Southern Africa, and Latin America.

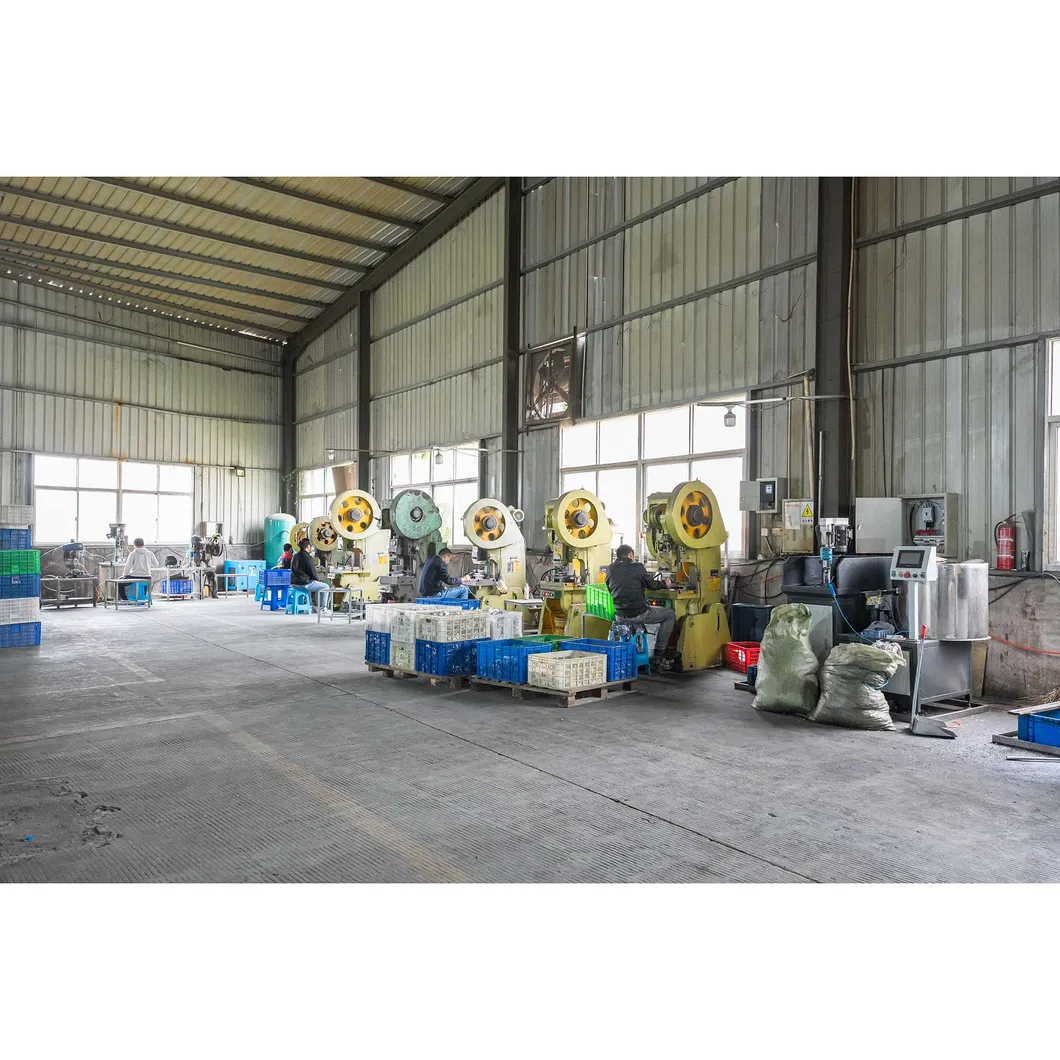

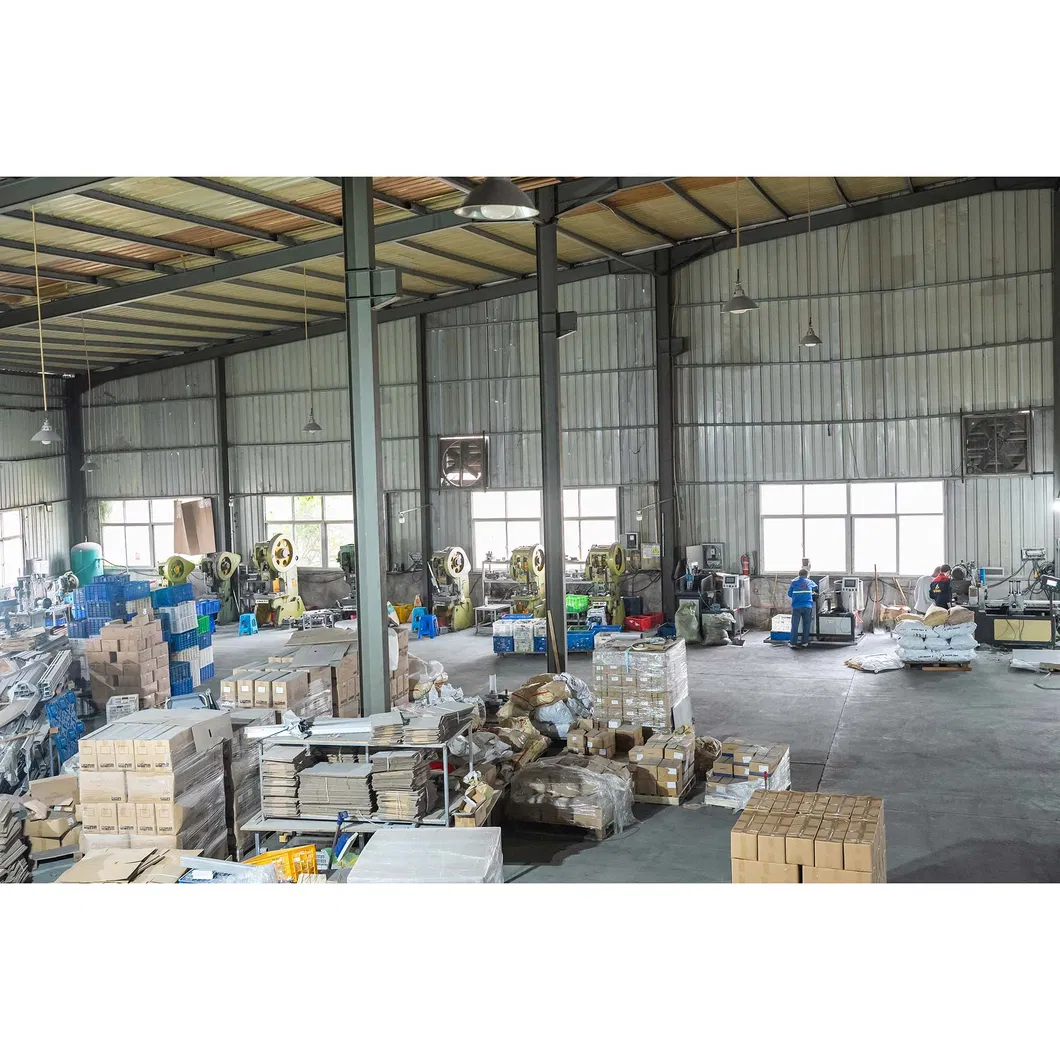

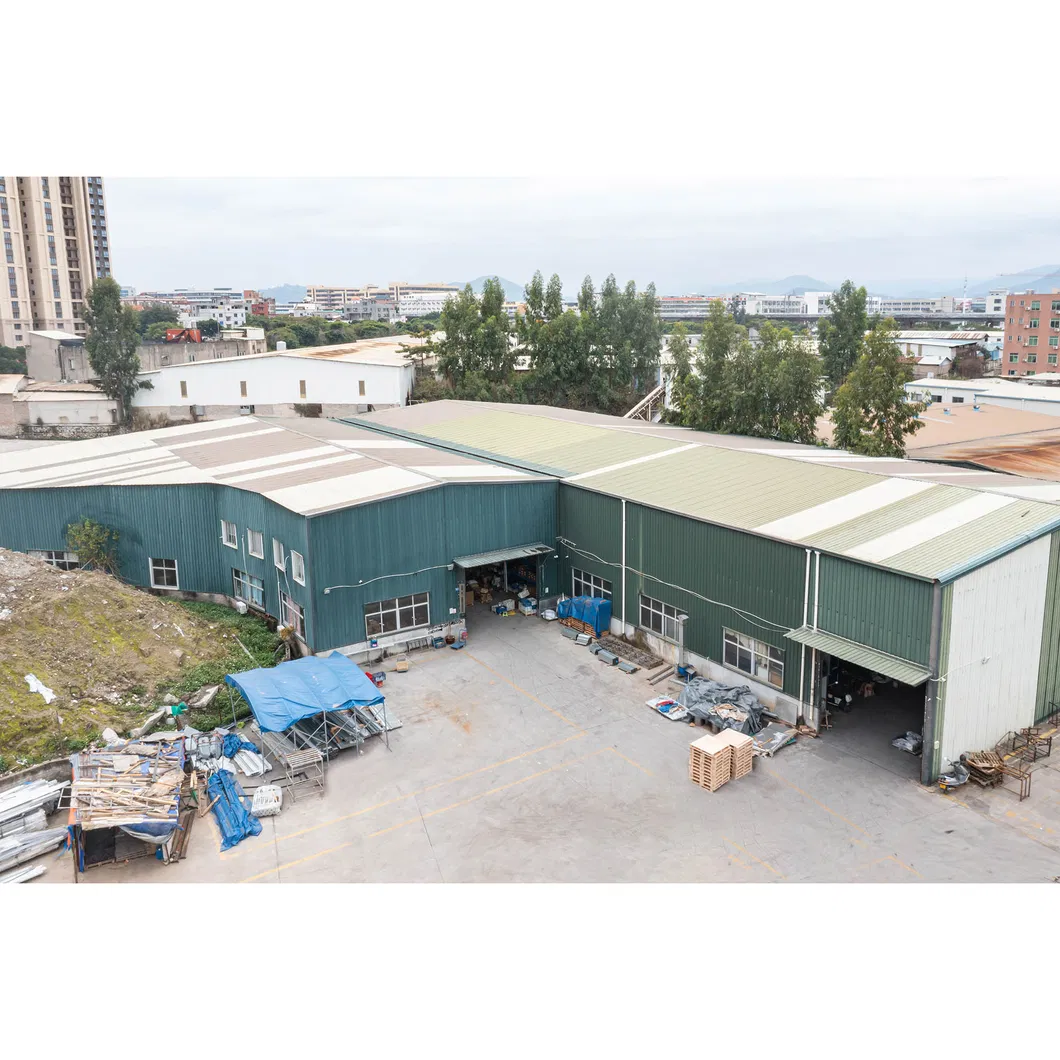

Workshop - Aluminum & Steel Material:
Professional processing workshops for aluminum alloy and steel/Magnesium aluminum zinc (S350GD/S450GD). Equipped with 6 production lines and several molding machines, providing independent cutting, drilling, stamping, and forging. Monthly productivity reaches 40-50MW.
