| Model NO. | HB-16402 |
| Surface | Sand Blast & Nickel Plated |
| Max. Working Pressure | 1MPa |
| Water Inlet Temperature | 0-95℃ |
| Output Temperature | 35-55℃ |
| Temperature Control Accuracy | ±2℃ |
| Key Words | Auto Water Mix Group |
| Connection End | Threaded |
| Use Area | 200m² |
| Head Lift | 6m |
| Max Power | 100W |
| HS Code | 8481804090 |
| Production Capacity | 8000 PCS/Day |
This system is a brass mixing water unit designed for household applications, integrating a water pump and pressure gauge. It is suitable for cold/hot water mixing, constant-temperature water supply, and underfloor heating mixing systems. The system is constructed with high-precision brass casting, offering corrosion resistance, durability, and customization options for flow rate, pressure, and connection sizes based on user requirements.
| Medium | Water |
| Water Inlet Temp | 0-95ºC |
| Output Temp | 35-55ºC |
| Use Area | 200m² |
| Accuracy | ±2ºC |
| Head Lift | 6m |
| Center Distance | 210mm |
| Max Working Pressure | 1Mpa |
| Max Power | 100W |

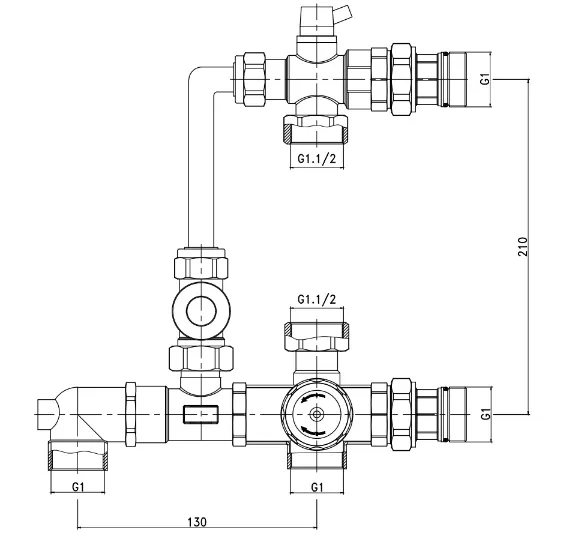

| DN | SIZE | L (mm) | H (mm) | D (mm) |
|---|---|---|---|---|
| 25 | 1'' | 60 | 210 | 1'' , 1-1/2'', 1-1/4 |

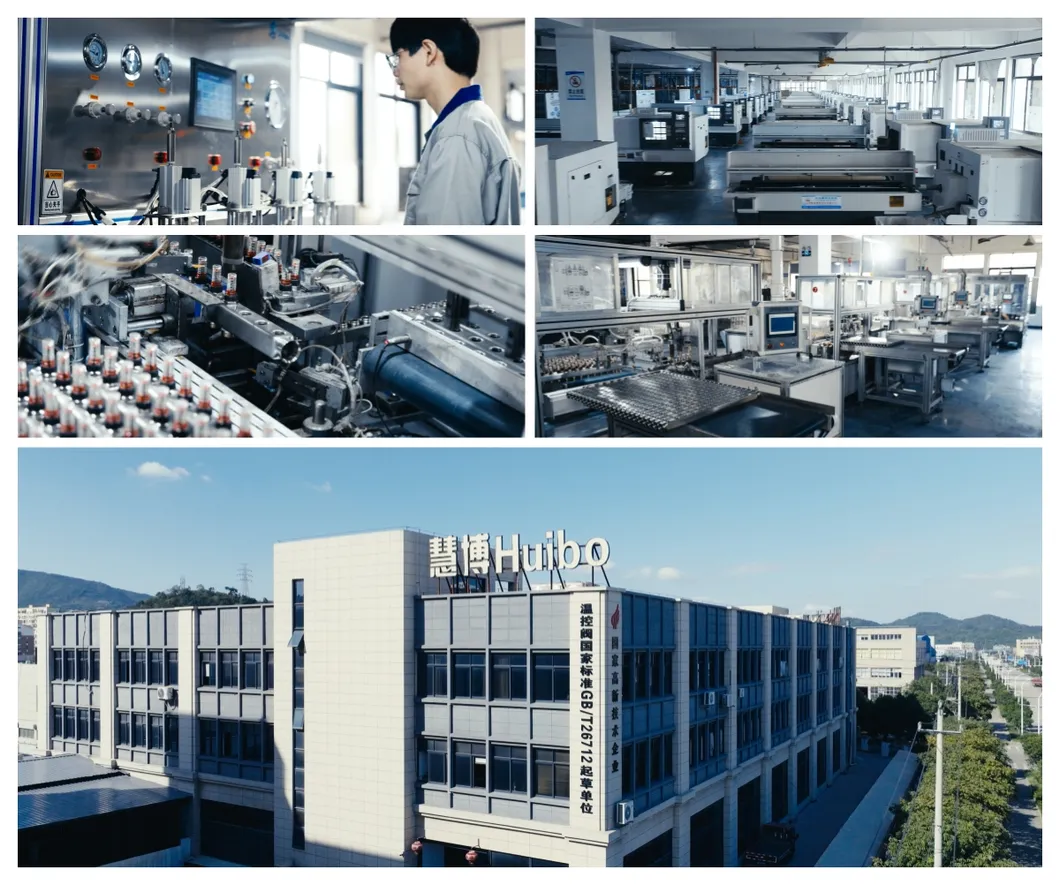

Our company is a leading manufacturer and supplier in the valve industry with more than 25 years of experience, specializing in HVAC system parts and brass valve fields. We utilize advanced resources in the brass manufacturing hub of China to provide strong competitive capabilities and high-quality solutions.

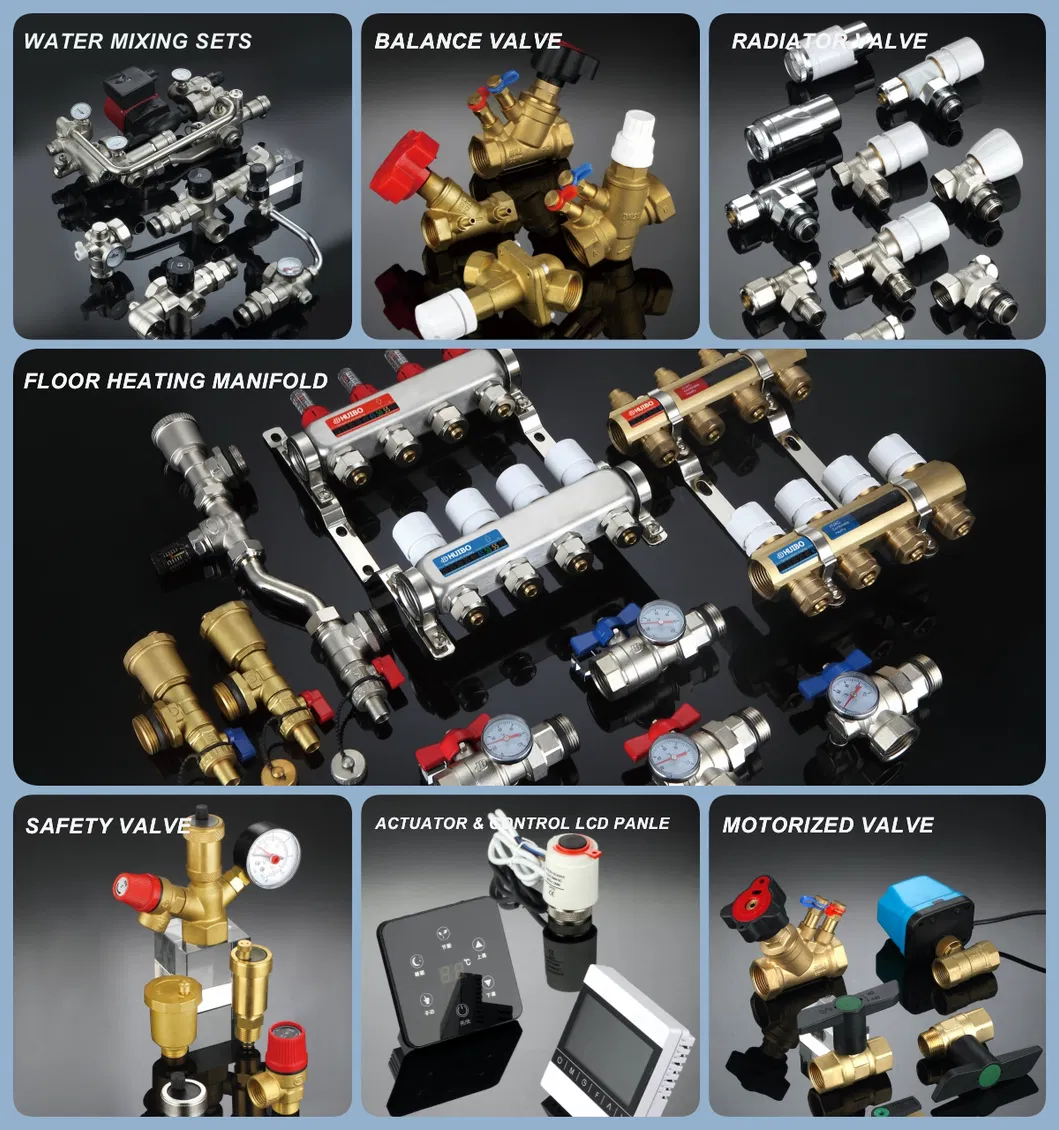

As a premier manufacturer, our products cover brass manifolds, thermostatic radiator valves, manual radiator valves, motorized valves, ball valves, gate valves, gas valves, check valves, and brass fittings, spanning over 40 series and 2000 varieties.
