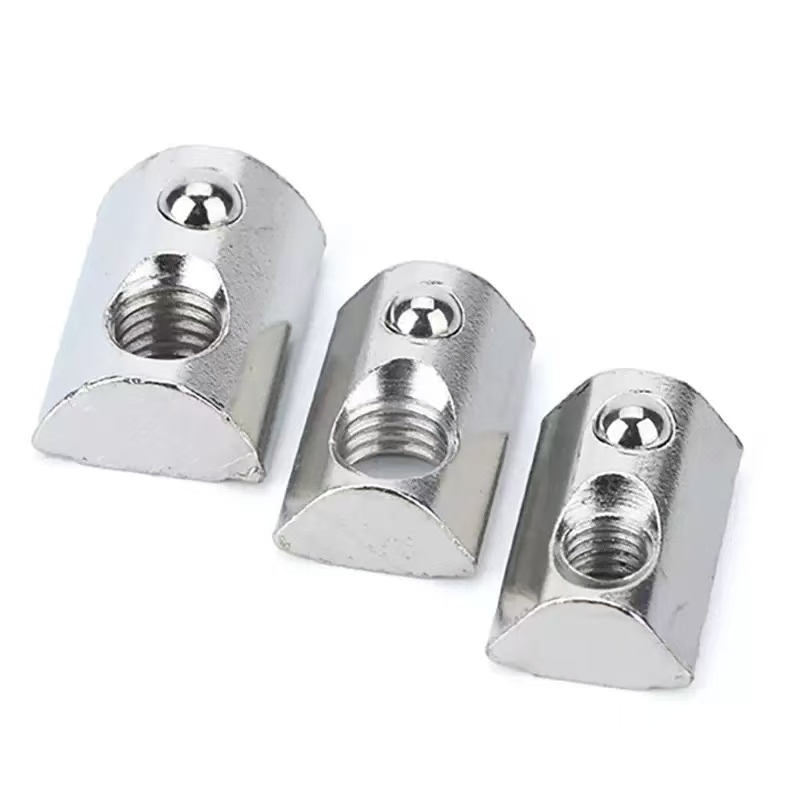

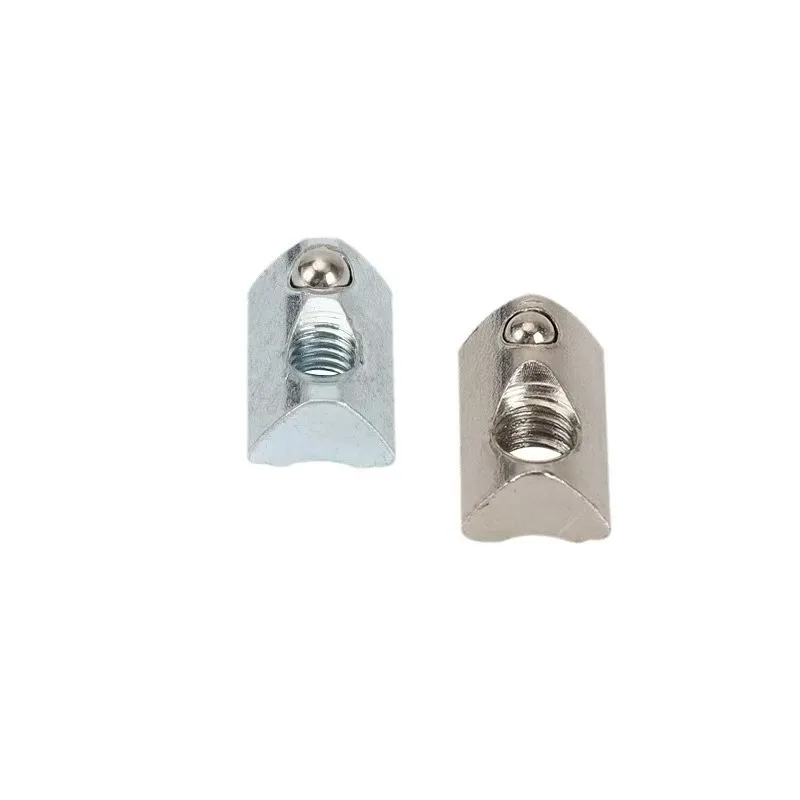

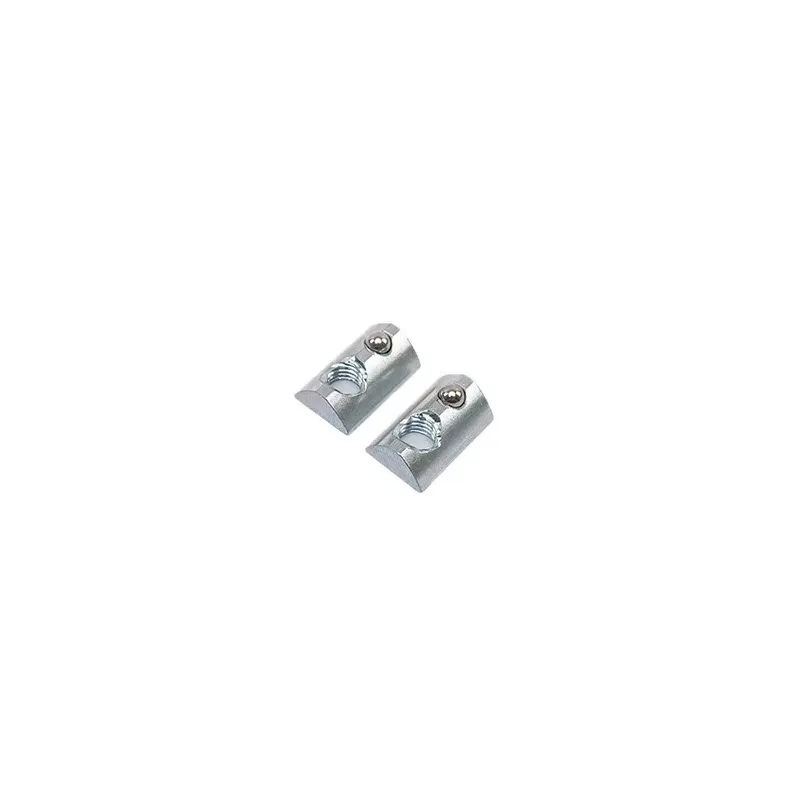

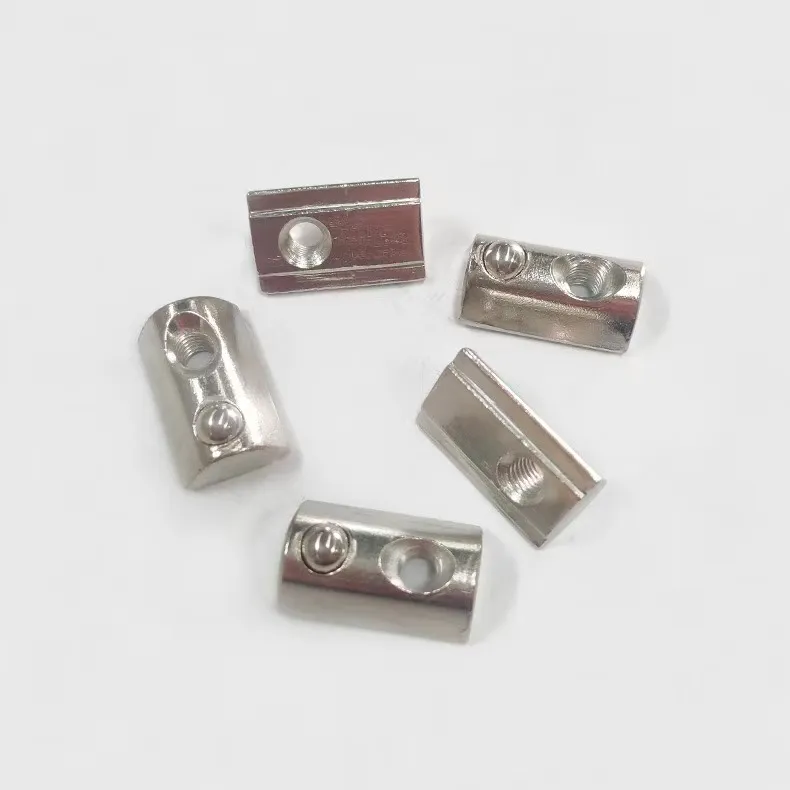

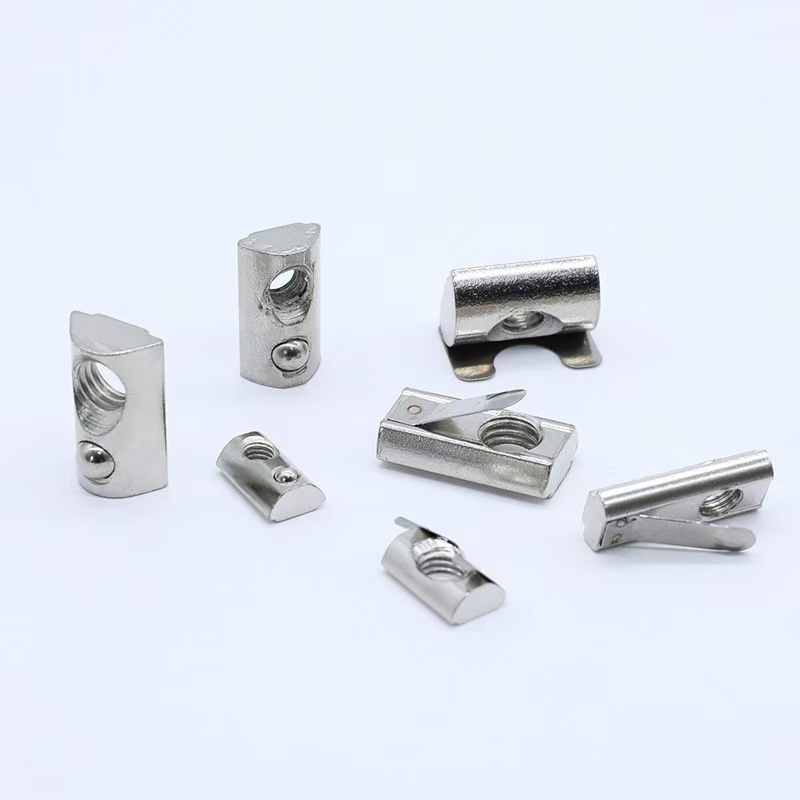

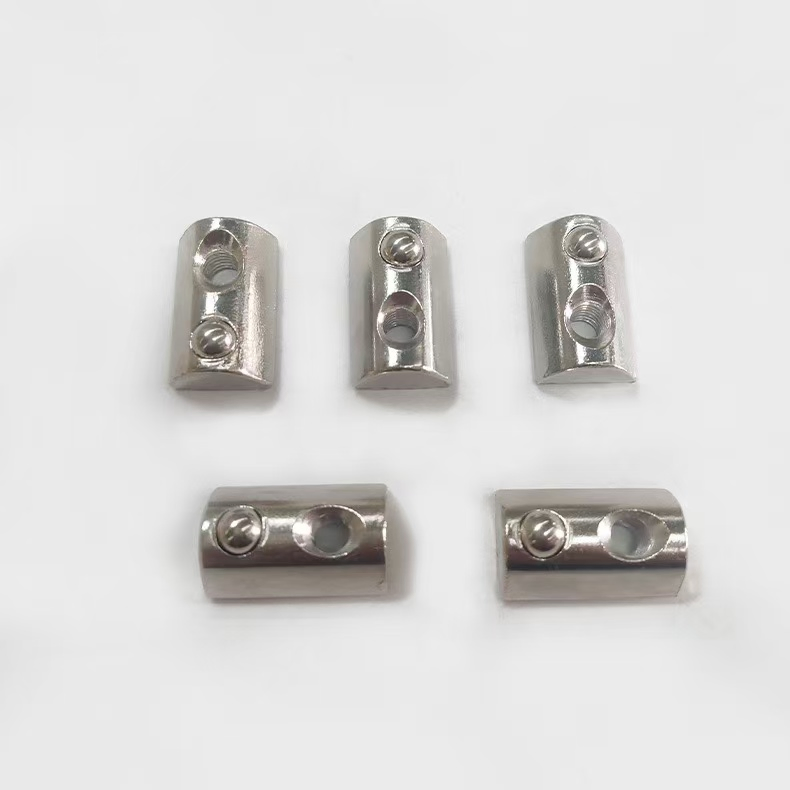

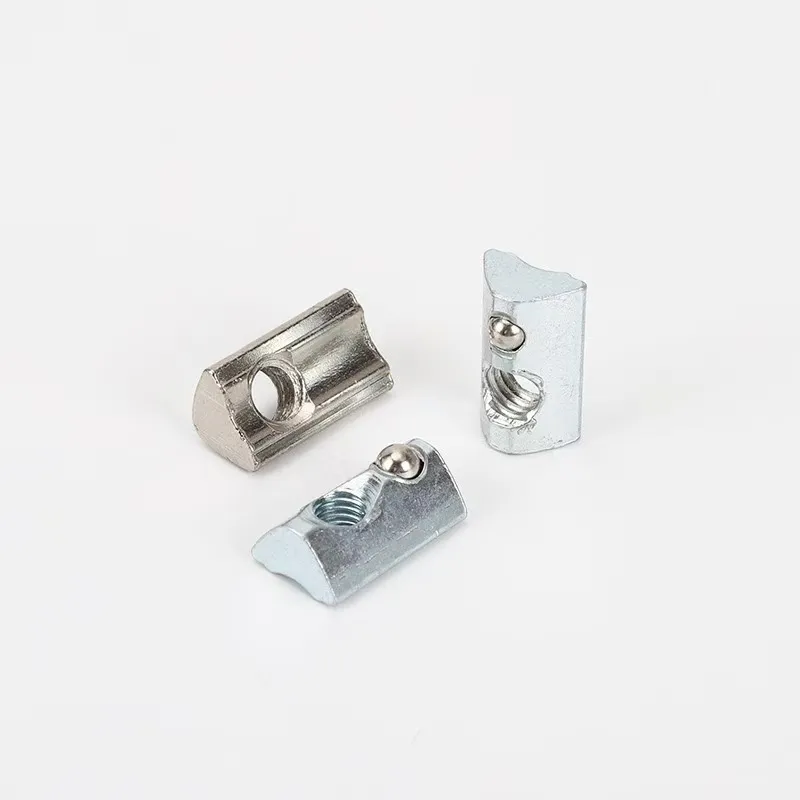

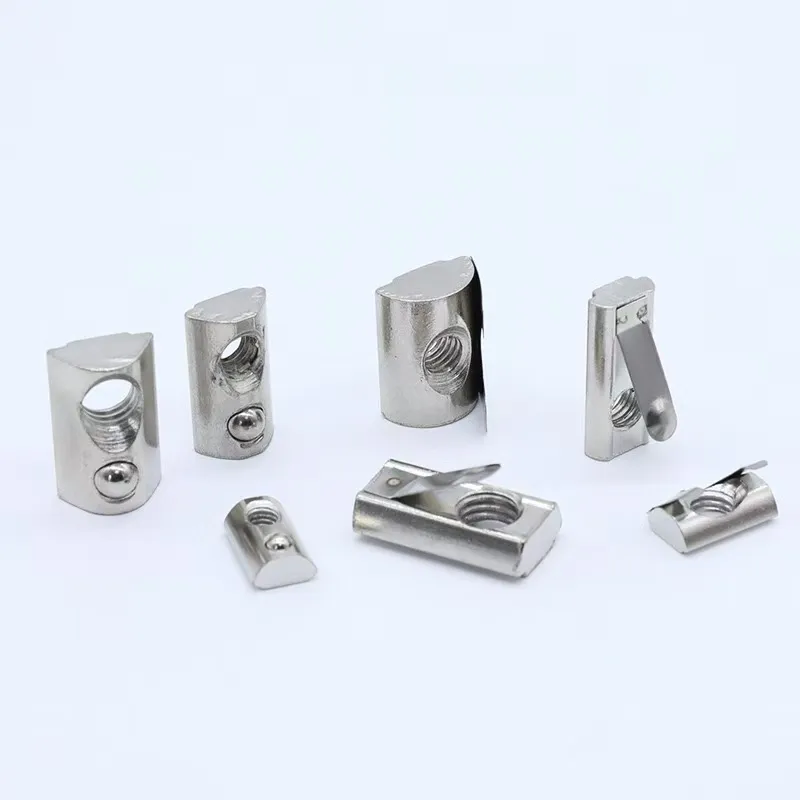

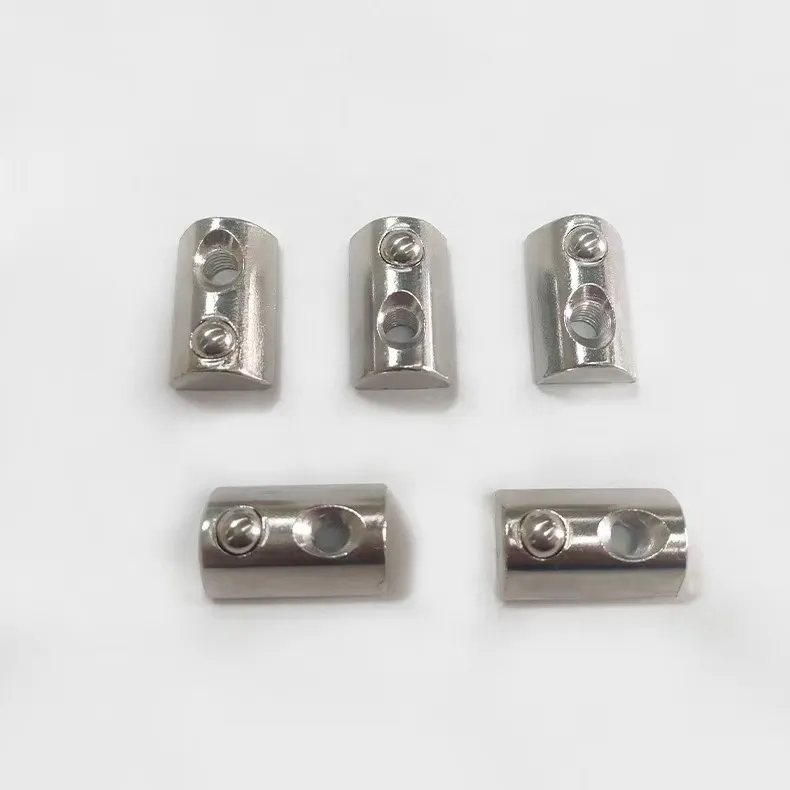

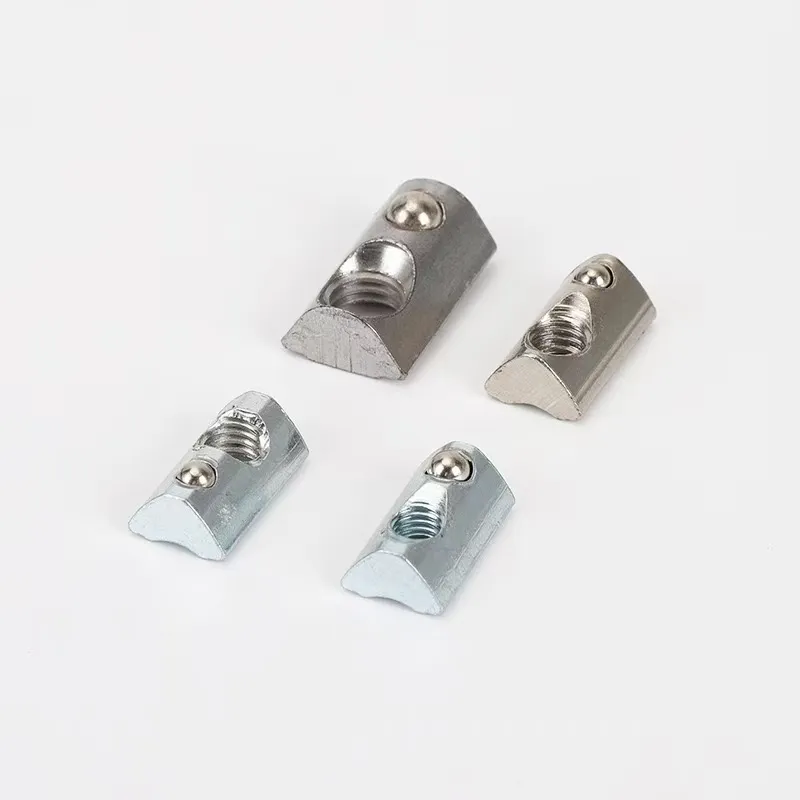

Introducing the revolutionary Pinball Nut, also fondly known as the steel ball nut or elastic nut. This uniquely designed component is engineered with a steel ball structure, making it an indispensable element in countless mechanical connection and assembly applications. Its innovative design is pivotal in ensuring precision and stability across various industries.
Our Pinball Nut is meticulously crafted, comprising the robust nut body, resilient steel ball, and a reset spring for unparalleled elasticity. The nut body is intentionally designed in a block shape, featuring a central threaded hole which seamlessly allows a bolt to pass through. Ingenious holes are situated at either the bottom or the side of the nut body, perfectly accommodating the steel ball. Ingeniously, a reset spring is housed within these holes to offer elastic support for the steel ball.
The Pinball Nut excels in fastening and precise positioning, harnessing the power of friction between the steel ball and the contact surface, coupled with the steel ball's elastic positioning prowess. When introduced to a groove, like that of an aluminum profile, the reset spring ensures the steel ball is firmly pressed against the groove's inner wall. This resulting friction prevents unwanted sliding and delivers a stable positioning effect.
Our Pinball Nut's nut body is available in prestigious materials such as stainless steel and carbon steel. Stainless steel variants promise outstanding rust and corrosion resistance, perfect for food processing equipment and chemical machinery. The steel balls are crafted from high-hardness metals like bearing steel, guaranteeing exceptional wear resistance and compressive strength.
The Pinball Nut promises an incredibly simple installation process, often achievable by hand-pressing into an aluminum groove without requiring intricate tools. It delivers exceptional positioning capabilities, preserved stability across diverse orientations (vertical/inclined), and seismic resilience to minimize the risk of loosening under vibrational conditions.
Extensively used in constructing industrial aluminum profile frames, automation equipment racks, and assembly line workbenches. It plays a crucial role in electronic device manufacturing by securely fixing internal components and is a popular choice for quick assembly in display stands and experimental devices.
