Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
1 / 5
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Basic Specifications
Model NO.
LH-
Type
PVD Vacuum Coating Machine
Coating
Vacuum Coating
Substrate
Steel
Certification
CE, ISO
Condition
New
Product
Ion Deposition Machine
Technology
Physical Vapor Deposition, Cathod Arc Ion Coating
Control System
Manual Automatic All-in-One
Operating System
PLC Touching Screen
Coating Color
Gold, Rosegold, Silver, Black, Blue etc
Chamber Material
Stainless Steel
Coating Film
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc.
Transport Package
Wooden Package
HS Code
8543300090
Product Overview

Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Brief Introduction:
The PVD Ion Deposition Machine is designed to coat ceramic tiles, tableware, porcelain, floor tiles, and glass mosaics. Beyond ceramics, it can also process metal and glass products. High-capacity models can coat up to 1500 square meters per day.

This equipment deposits TiN (gold color), Ti (silver color), and other coatings on ceramic surfaces, replacing traditional paint gold, enhancing adhesion, saving costs, and improving production efficiency.

Technical Characteristics

The system utilizes electric arc principles, integrating cold cathode arc discharge self-sustained light pulse techniques with magnetron sputtering technology. This thins particles to improve film properties on both metal and non-metal surfaces.

  • Efficiency: High deposition and ionization rates with big ion energy.
  • Environmentally Friendly: Harmless and pollution-free machining process.
  • Multi-functional: Capable of coating metal films, titanium nitride, carbides, and multi-layer super-hard films.
Industrial Applications

Extensively used in diverse fields including:

Ultra-hard tool coating Car wheels Ceramics & Golf Watch making Sanitary ware Hardware
Equipment Showcase

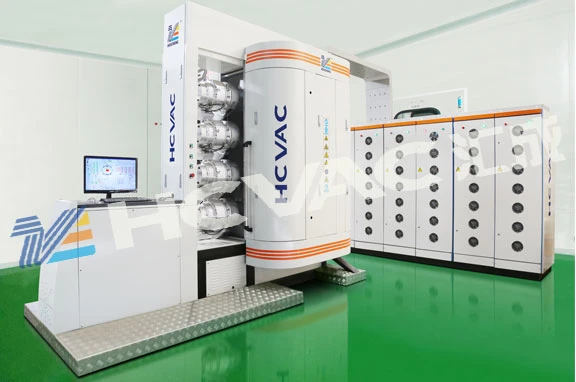

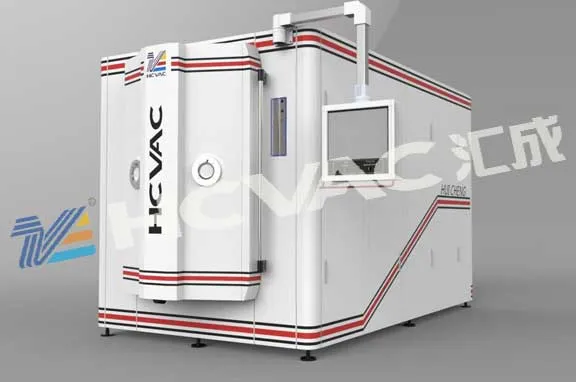

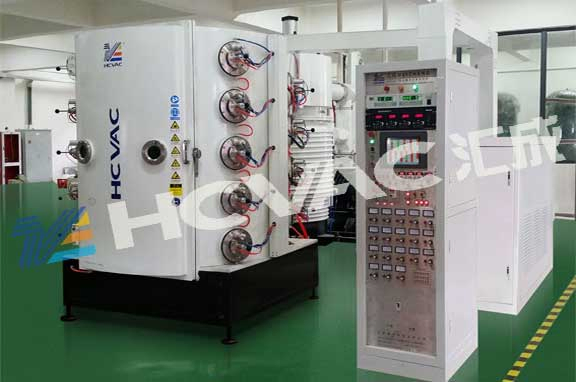

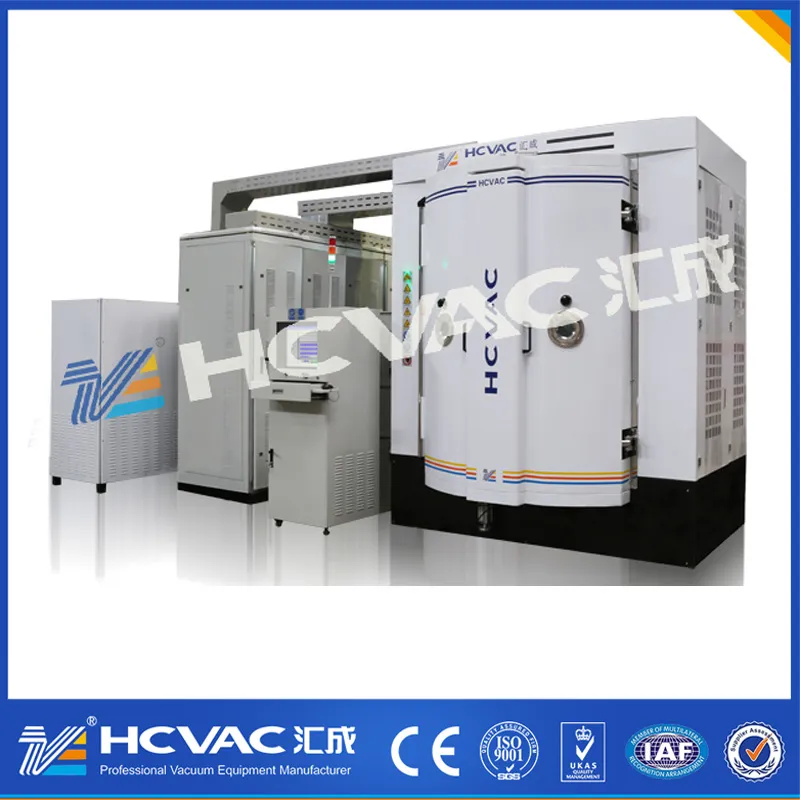

PVD Ion Deposition Machine

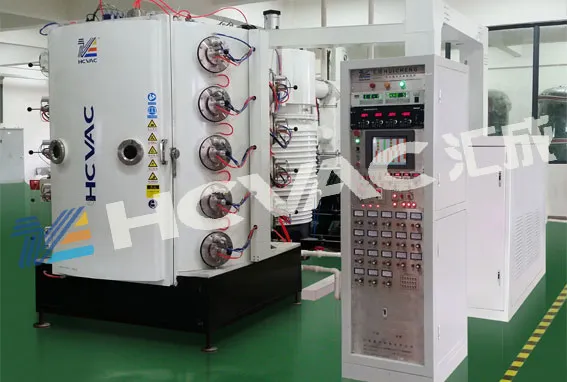

Vacuum Plating System

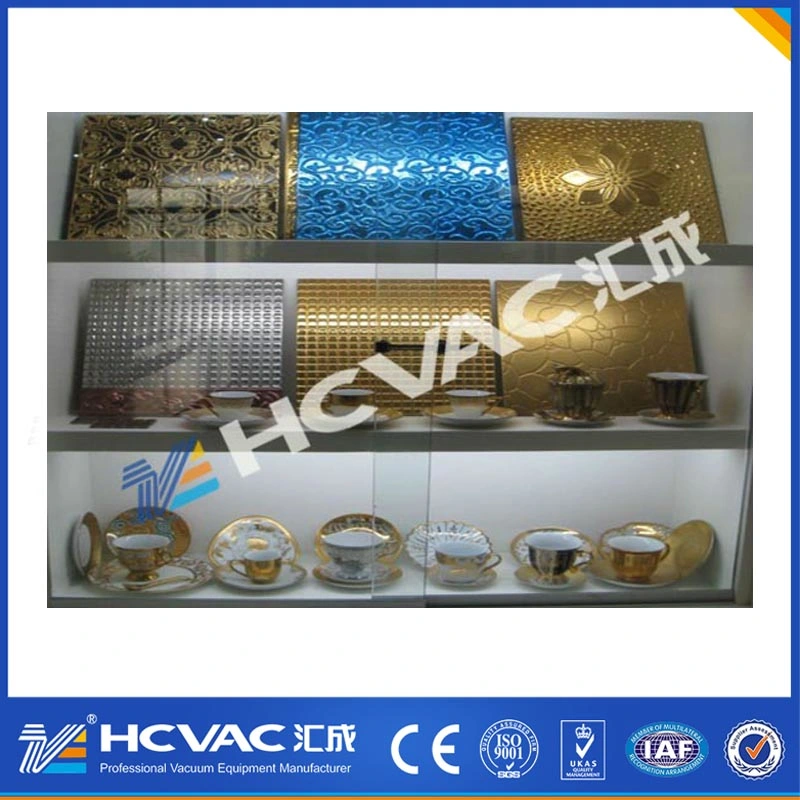

Coated Samples & Colors

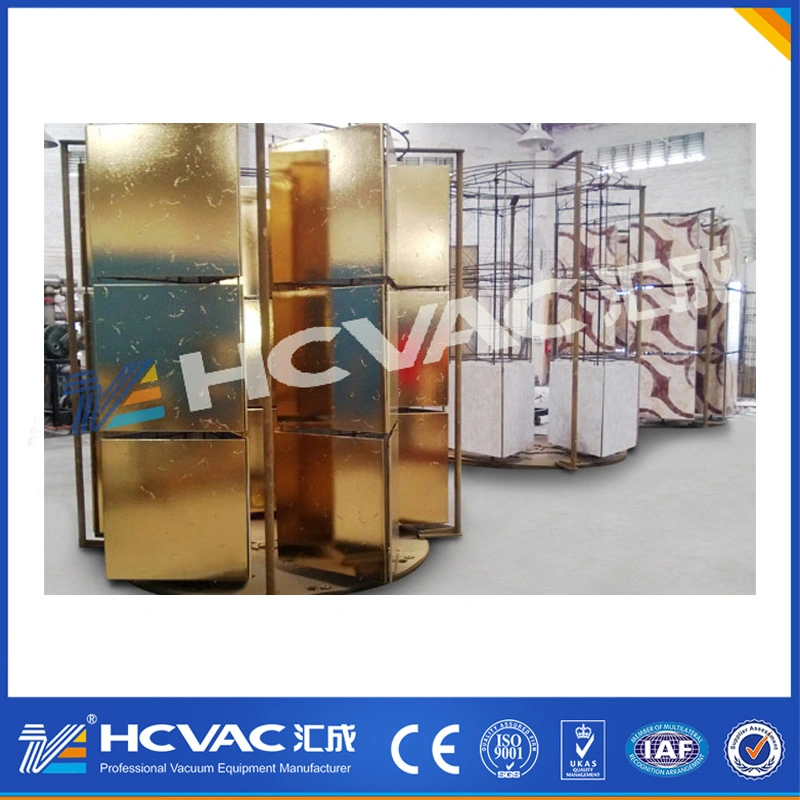

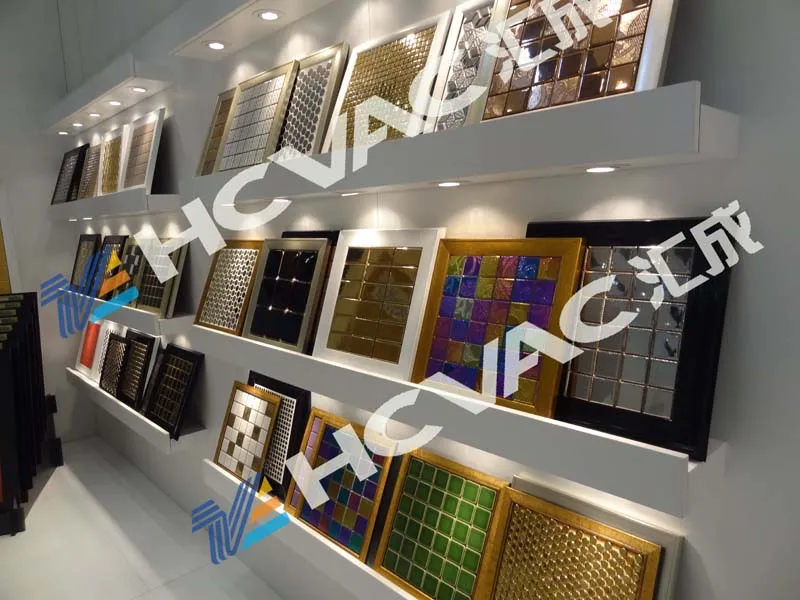

Coated Ceramic Tile

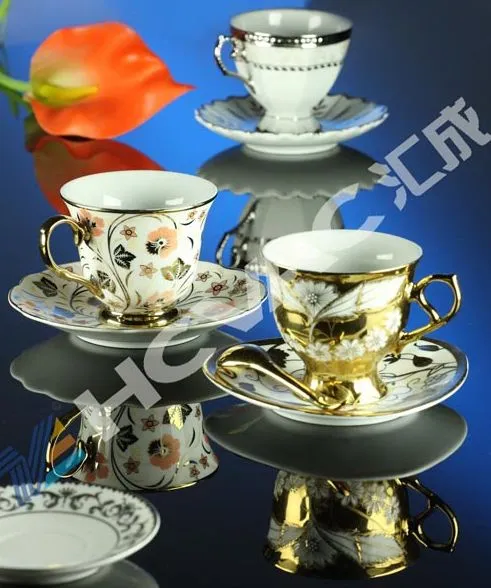

Coated Sample Decoration
Ceramic Coating Finish

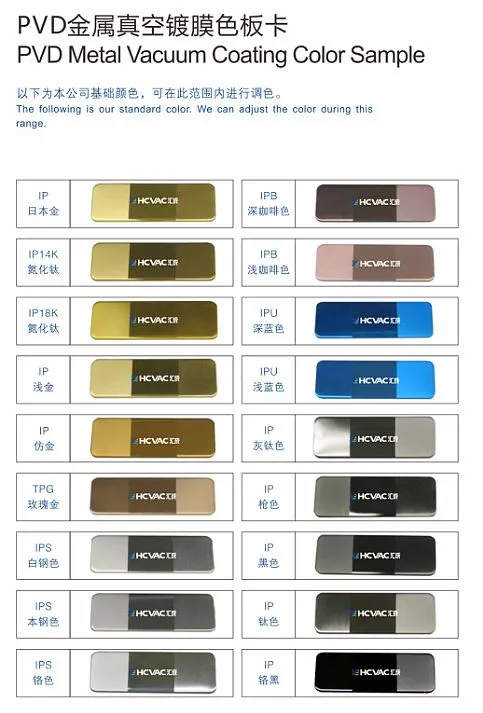

Available PVD Colors
Technical Parameters
Mode / Dimension LH-800 LH-1250 LH-1416 LH-1618
Chamber Size 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Main Configuration Eight multi-arc targets Twelve multi-arc targets Fourteen multi-arc targets Twenty multi-arc targets
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Vacuum System Molecule pump + Roots pump + Mechanical pump (5.0*10 -5 Pa) / Diffusion pump + Roots pump + Mechanical pump (5.0*10 -4 Pa)
Baking Temperature Normal temperature to 350°C PID control, radiation heating.
Control Mode Manual / Automatic / PC / PLC + HMI
Frequently Asked Questions (FAQ)
What materials can this PVD machine coat?
The PVD Ion Deposition Machine is highly versatile and can coat ceramic tiles, porcelain, glass mosaics, stainless steel, and other metal products.
What colors can be produced with the vacuum plating system?
It can achieve a wide range of decorative colors including Gold, Rose Gold, Silver, Black, Blue, and various other customized shades.
Is the PVD coating process environmentally friendly?
Yes, PVD (Physical Vapor Deposition) technology is a pollution-free and harmless process, making it a green alternative to traditional chemical plating.
What are the main benefits of using this machine for tiles?
It provides superior adhesion compared to traditional gold painting, enhances production efficiency, and significantly reduces the cost per unit.
Can the equipment be customized for specific needs?
Absolutely. We can design the dimensions and configuration of the equipment according to the customer's specific technical requirements and production volume.
How is the vacuum system controlled?
The machine features a PLC touch screen operating system with four control mode choices: Manual, Automatic, PC, or PLC+HMI.
