Basic Information
Sterilization
Without Ethylene Oxide
Quality Guarantee
Two Years
Usage
Fracture Fixation (Tibia)
Material
Titanium Alloy (TA)
Product Overview
Key Features and Benefits

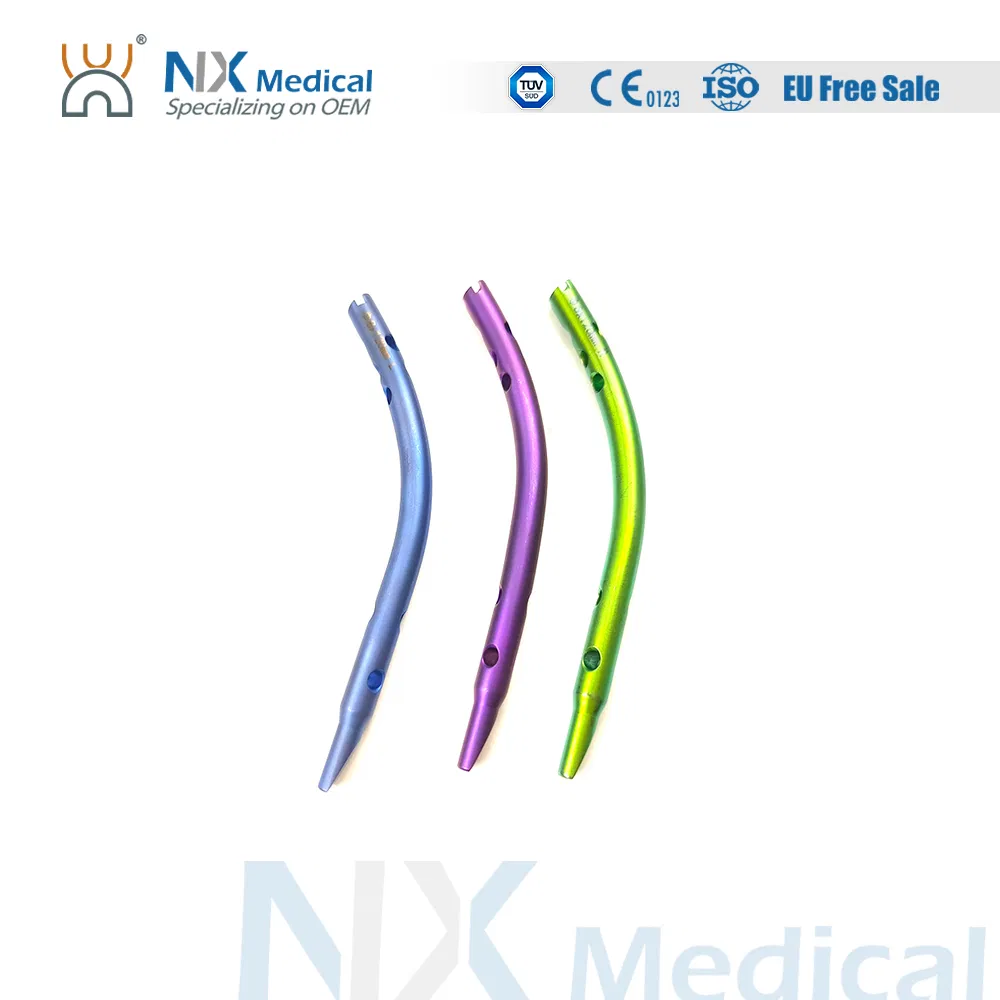

Color Coding: Designed for easy differentiation of nail sizes during procedures.

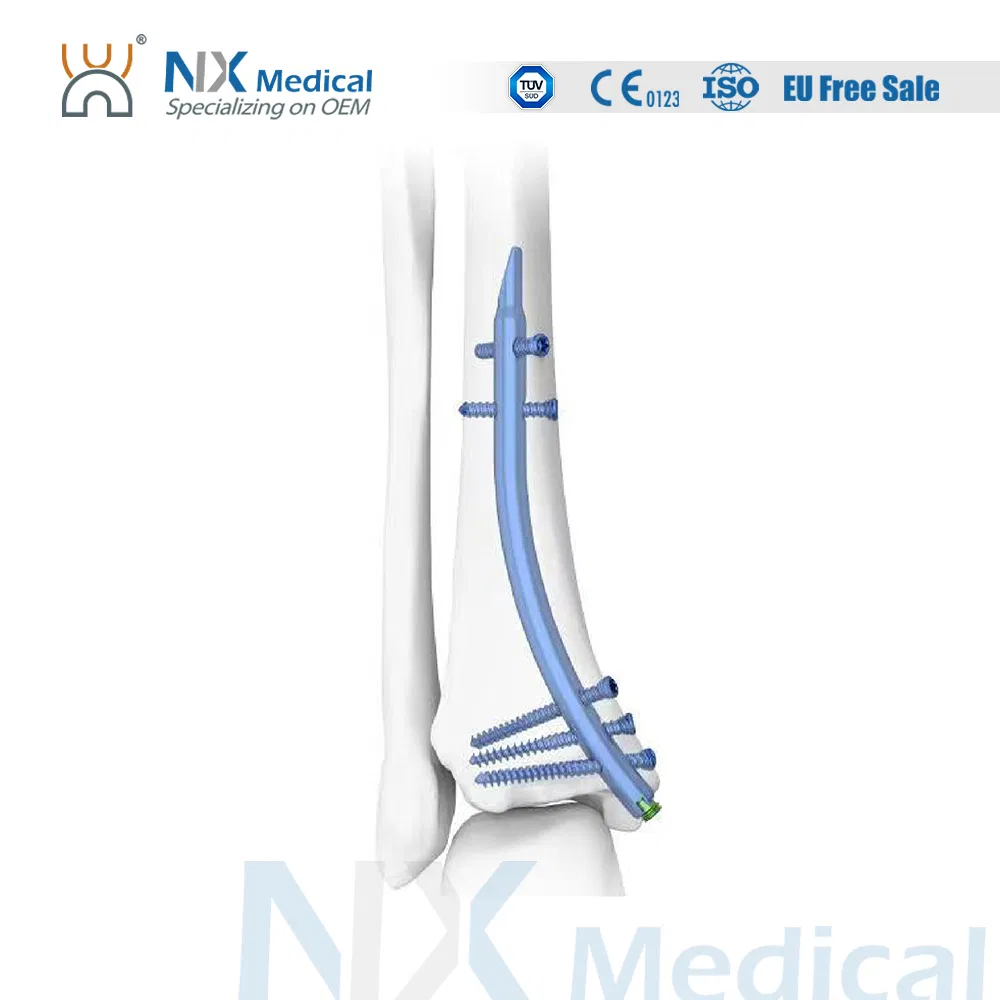

Proximal Oblique Cutting: Reduces irritation to soft tissues of the medial malleolus.

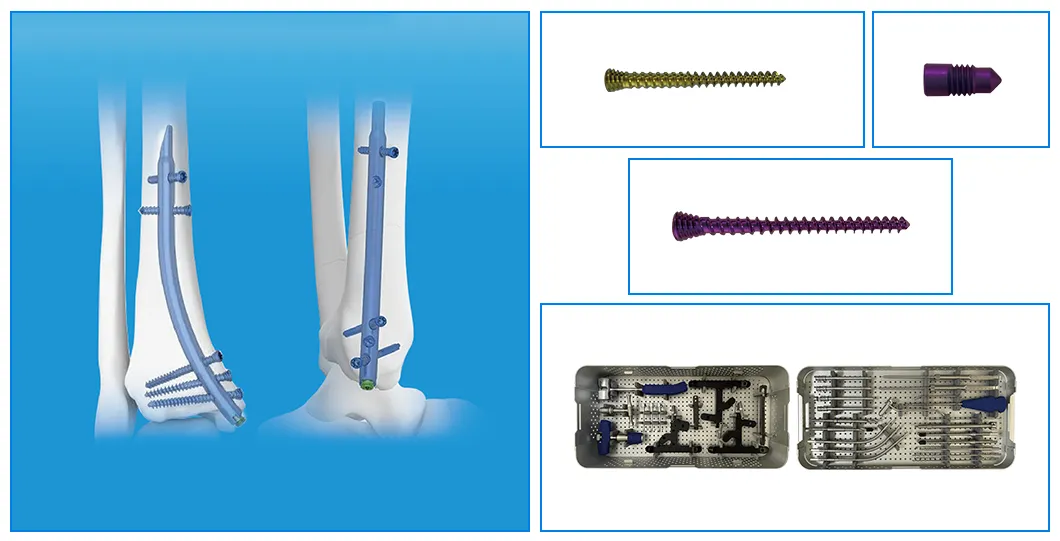

Interlocking Screws: Two proximal interlocking screws avoid fracture rotation and displacement.
Distal Flat Design: Distal flat cutting design of the nail avoids insertion difficulties.
Divergent Locking: Three distal divergent locking screws provide effective support and fixation.
Technical Specifications
| Product Component |
Size (mm) |
Material |

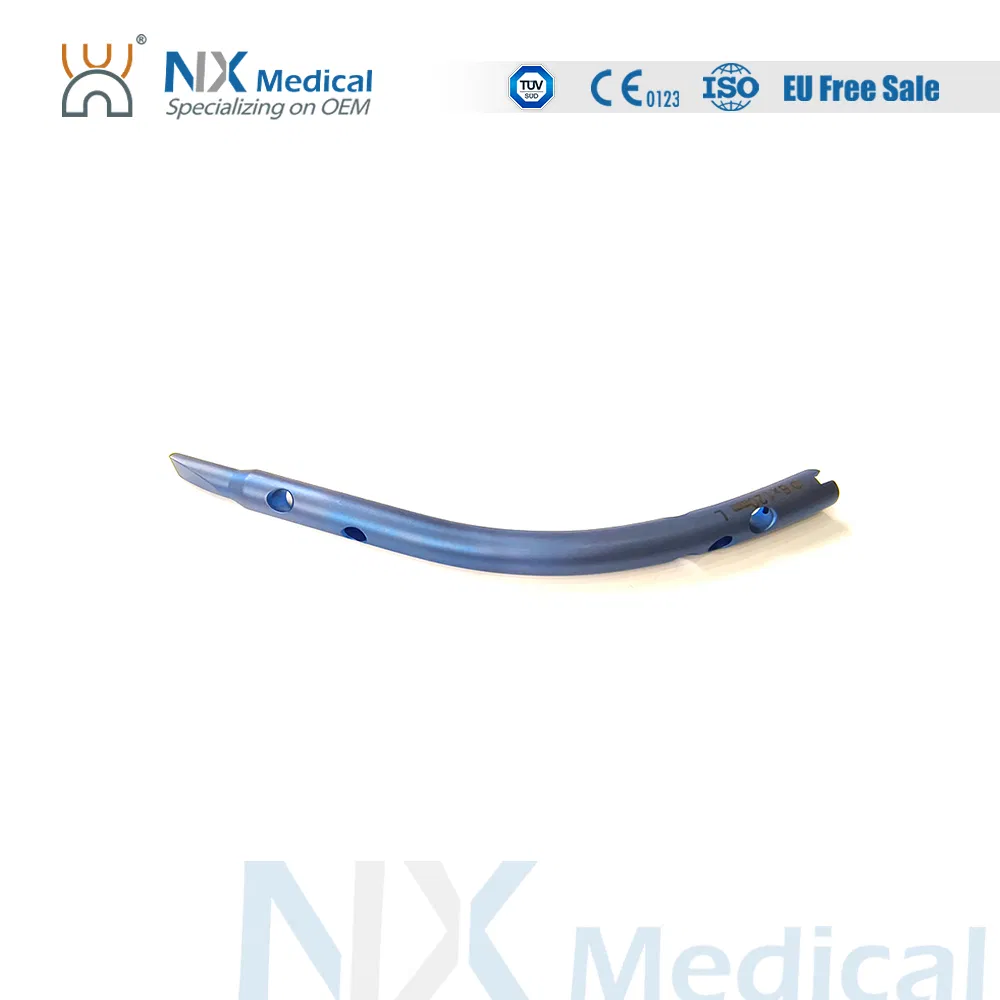

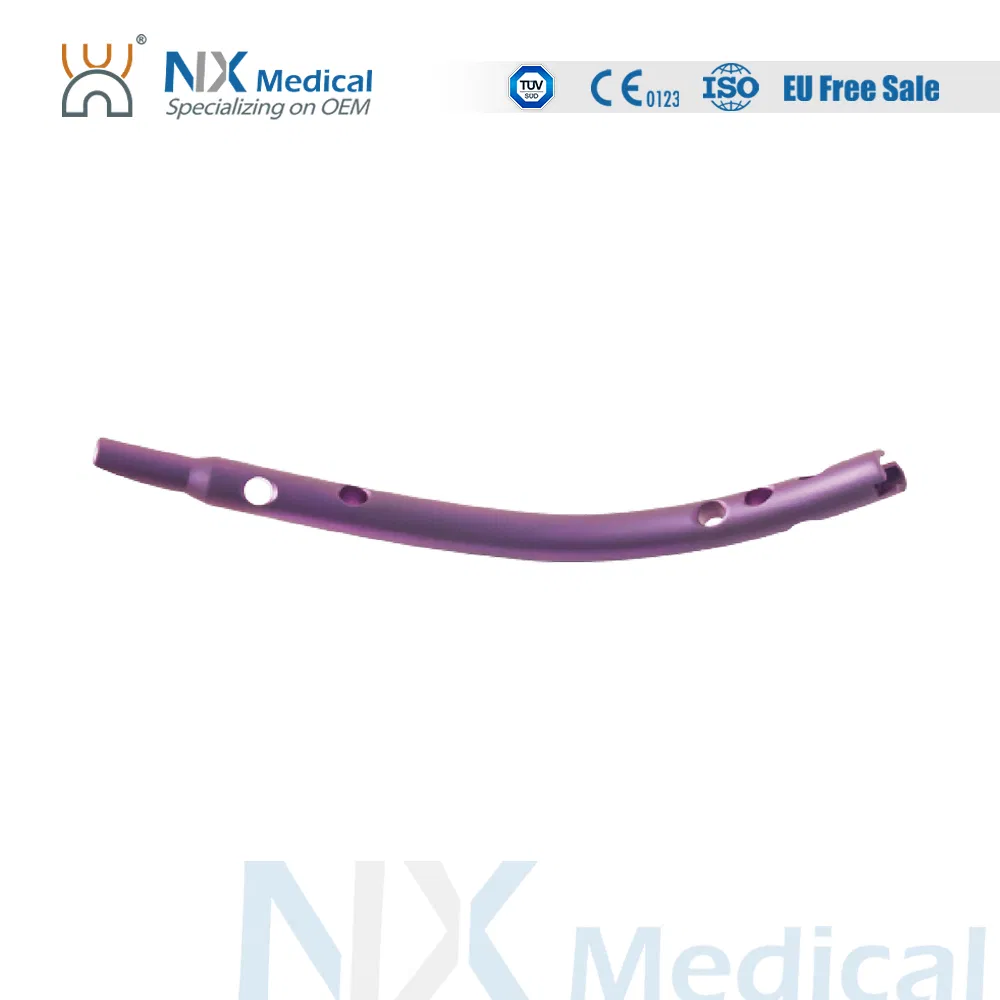

| Retrograde Tibial Nail |
7 x 110 |
TA |

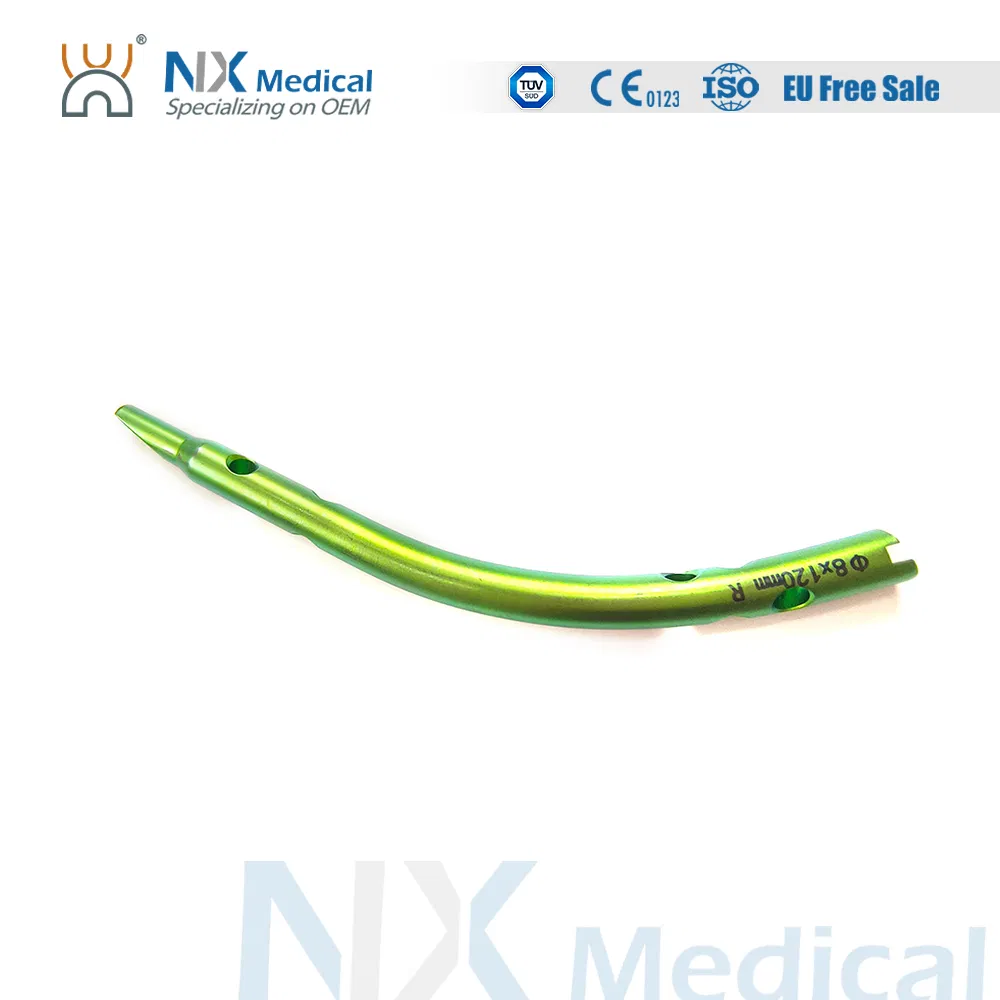

| 8 x 120 |
TA |
| 8 x 140 |
TA |
| φ3.5mm Interlocking Cancellous Screw |
30 / 32 / 34 / 36 / 38 / 40 / 42 / 44 / 46 / 48 / 50 / 52 |
TA |
| φ3.5mm Interlocking Cortical Screw |
18 / 20 / 22 / 24 / 26 / 28 |
TA |
| φ4.0mm Interlocking Cortical Screw |
24 / 26 / 28 / 30 / 32 / 34 |
TA |
| End Cap |
Standard / 5 |
TA |

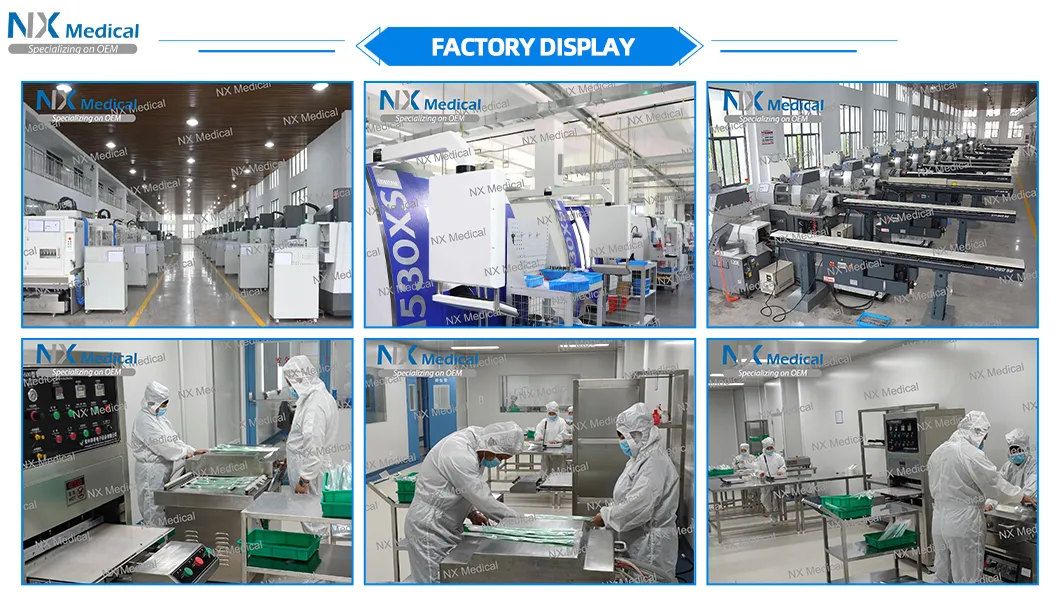

Manufacturing Excellence
As a leading orthopedic product manufacturer, we provide a comprehensive range of cost-effective surgical and reliable therapeutic solutions to orthopedic surgeons and patients worldwide. Our focus is on superior orthopedic trauma implants, spinal implants, and high-precision surgical instruments. We are committed to the global orthopedic industry through continuous investment in R&D and advanced manufacturing technologies.
Our trauma system includes locking plates, intramedullary nails, cannulated headless screws, and cable systems. All products comply with ISO13485, and carry TUV CE0123 and NMPA certifications. We ensure the highest quality through strict internal self-audits and sampling inspections.
Frequently Asked Questions
1. Can I request a sample order?
Yes, we welcome sample orders to test and check the quality of our orthopedic implants. Mixed samples are also acceptable.
2. Do you offer customized orthopedic solutions?
Yes, we have a complete design and drawing department along with CNC machinery to provide high-precision customized services based on your requirements.
3. What is the typical process for placing an order?
First, share your requirements or application. We will provide a quote. After confirmation of samples, a formal order is placed with a deposit, and we proceed with production.
4. How long does it take to receive samples?
For existing items, samples are ready within 3 days. For OEM or customized products, the process typically takes approximately 2 weeks.
5. Can you brand the products with our own logo?
Yes, we can print your logo on both the products and the packaging, provided our Minimum Order Quantity (MOQ) requirements are met.
6. How is product quality ensured before shipping?
We conduct strict sampling inspections on all products before shipment and ensure that the packaging is intact to maintain sterilization and safety.
