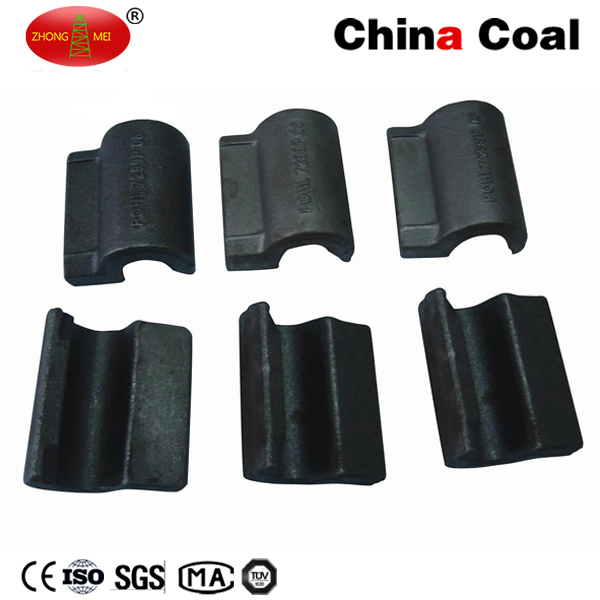

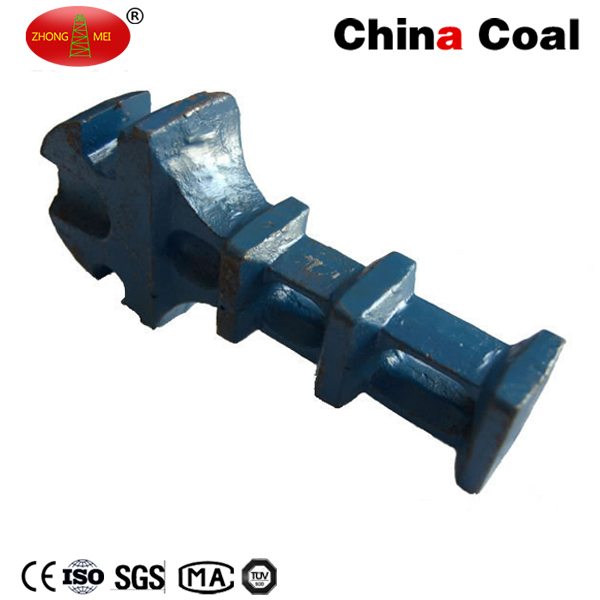

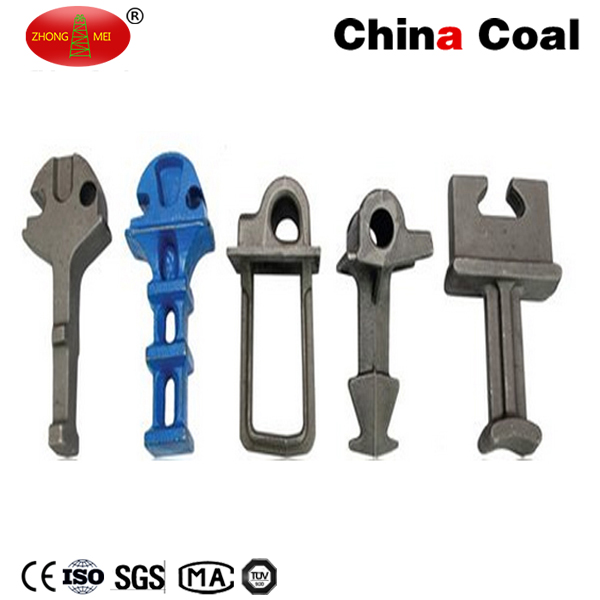

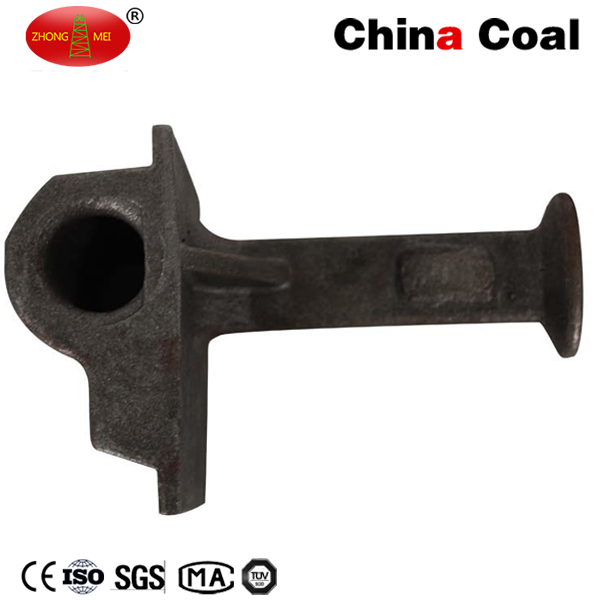

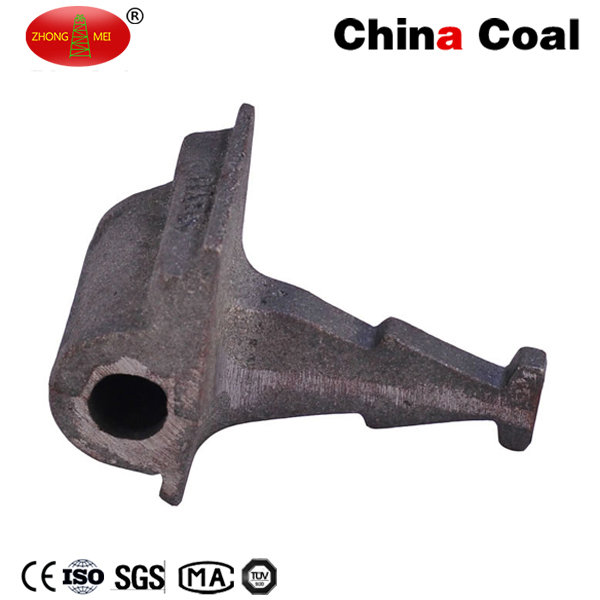

Plain Surface Cast Iron 5.6 Grade Rail Shoulder

1 / 5

Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Customization:	Available
Customized:	Customized
Certification:	ISO9001

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

For rail UIC54, UIC60, 115RE, 50kg, 60kg

Type

Shoulder

Material

Qt500-7 (Ggg50) / Qt450-10(Ggg45)

Surface

Plain (Oiled)

Condition

New

Keywords

Rail Shoulder

HS Code

8608009000

Capacity

1000 Boxes Per Month

💡 Product Introduction

Plain Surface Cast Iron 5.6 Grade Rail Shoulders are expertly cast in concrete ties for the secure fixation of Elastic Rail Clips. These Iron Shoulders are manufactured using high-quality pearlitic malleable iron (M.C.I. Inserts) and spheroid graphite iron (S.G.C.I. Inserts) to ensure long-term durability and structural integrity.

We provide two primary configurations to meet diverse railway needs:

Single Stem Iron Shoulders: Predominantly utilized in pre-stressed concrete ties.
Twin Stem Iron Shoulders: Commonly applied in Bi-Block or Twin Block concrete ties.

The shoulder accessories are designed for specific rail sections, ensuring that the correct elastic clip toe loading is achieved. Specialized shoulders are also available with milled weld area faces to facilitate superior weld integrity during installation.

⚙ Technical Parameters

Parameter	Specifications
Name	Plain Oiled / Black Treated Cast Iron Shoulder
Compatible Rails	UIC54, UIC60, 115RE, 50kg, 60kg, BS80lbs, BS100lbs (or custom drawings)
Material Grades	QT500-7 (GGG50)	QT450-10 (GGG45)	QT400-15 (GGG40)
Chemical Composition (%)	C:3.6-3.8, Mn:≤0.6, Si:2.5-2.9	C:3.4-3.9, Mn:0.2-0.5, Si:2.7-3.0	C:3.5-3.6, Mn:≤0.5, Si:3.0-3.2
Surface Finish	Plain (Oiled)

📷 Product Gallery

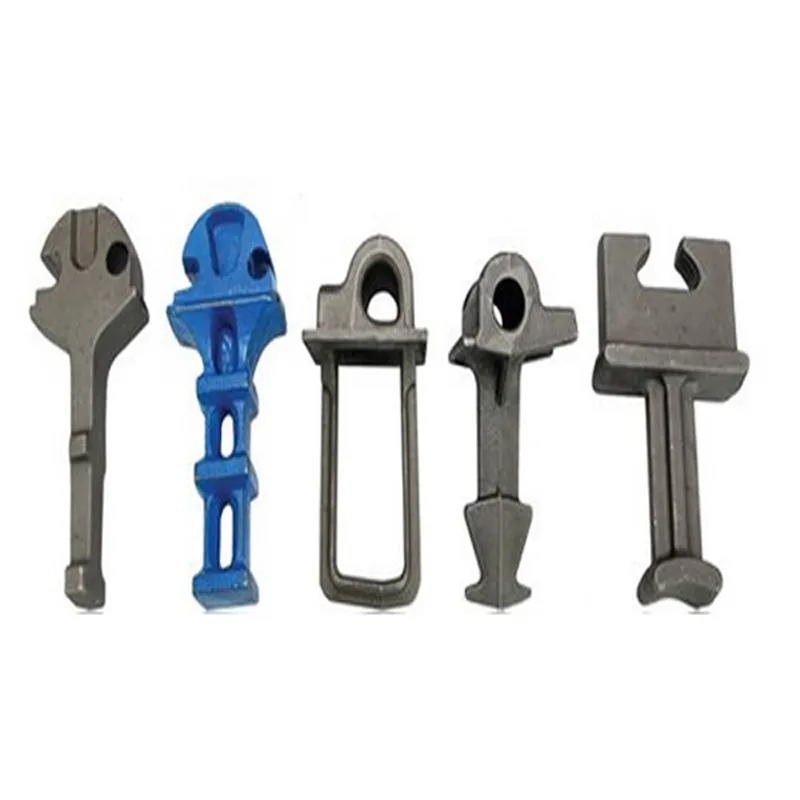

Plain Surface Cast Iron Rail Shoulder View 1

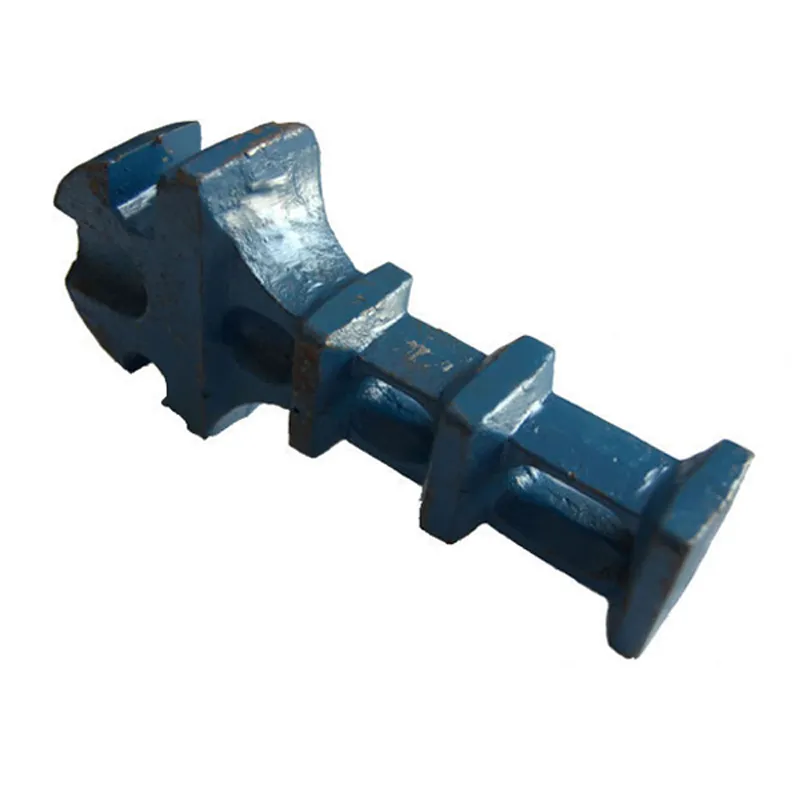

Plain Surface Cast Iron Rail Shoulder View 2

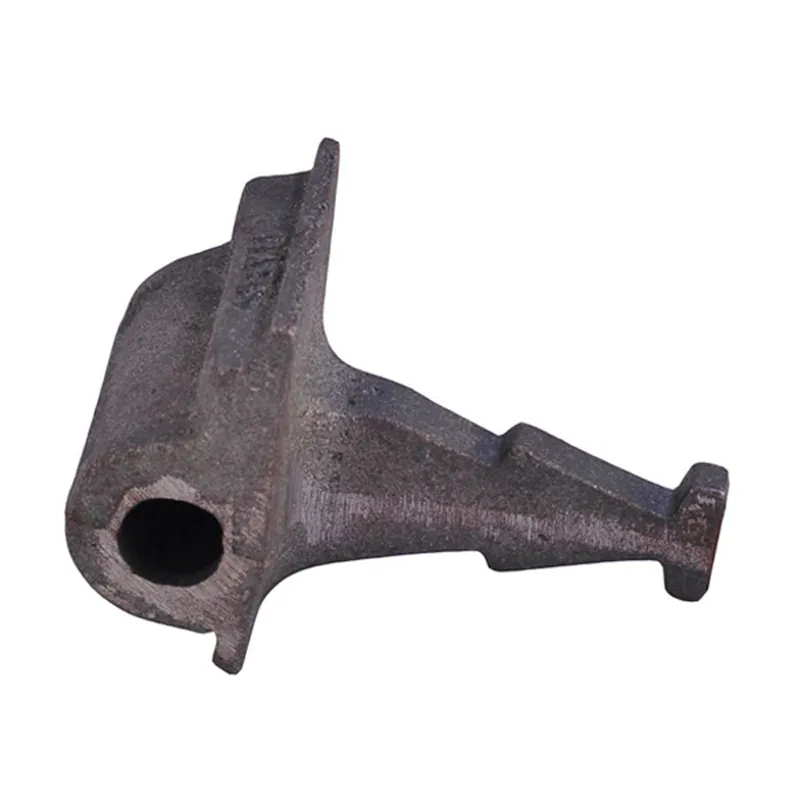

Plain Surface Cast Iron Rail Shoulder View 3

❓ Frequently Asked Questions

What is the main function of a rail shoulder?

Rail shoulders are cast directly into concrete sleepers to provide a secure anchoring point for elastic rail clips, which hold the rail firmly in place.

What materials are these shoulders made from?

They are manufactured from high-grade cast iron, specifically Spheroidal Graphite Cast Iron (QT500-7, QT450-10) or Malleable Cast Iron, depending on the application requirements.

How do I choose between Single Stem and Twin Stem shoulders?

Single Stem shoulders are typically used for standard pre-stressed concrete ties, while Twin Stem shoulders are designed for Bi-Block or Twin Block concrete tie systems.

Which rail types are compatible with these shoulders?

Our shoulders support a wide range of international standards, including UIC54, UIC60, 115RE, and various kg/m rail profiles (50kg, 60kg).

What surface treatments are provided?

The standard finish is plain oiled to prevent corrosion during transport. However, black treated or other customized finishes can be provided based on client requirements.

Can you produce shoulders based on custom drawings?

Yes, we can manufacture rail shoulders according to specific customer technical drawings and material specifications.
