Basic Information
Certification
CE, ISO13485
Properties
Implant Materials & Artificial Organs
Instrument Classification
Class III
After-Sale Service
Online Technical Support
Package
Sterile/Non-Sterile Package
Production Capacity
50000 Sets/Year
Product Introduction
✓
Reversible Design: Locking maxillofacial micro and mini plates can be used reversibly.
✓
Squeeze Locking: Advanced locking mechanism using squeeze technology.
✓
Versatile Collocation: One hole selects two kinds of screws (locking and non-locking), meeting diverse clinical indications.
✓
Premium Material: Custom German ZAPP pure titanium ensures biocompatibility and MRI/CT compatibility.
✓
Low Profile: Concave hole design and smooth edges reduce soft tissue discomfort and stimulation.
Matching Components
Matching Screws:

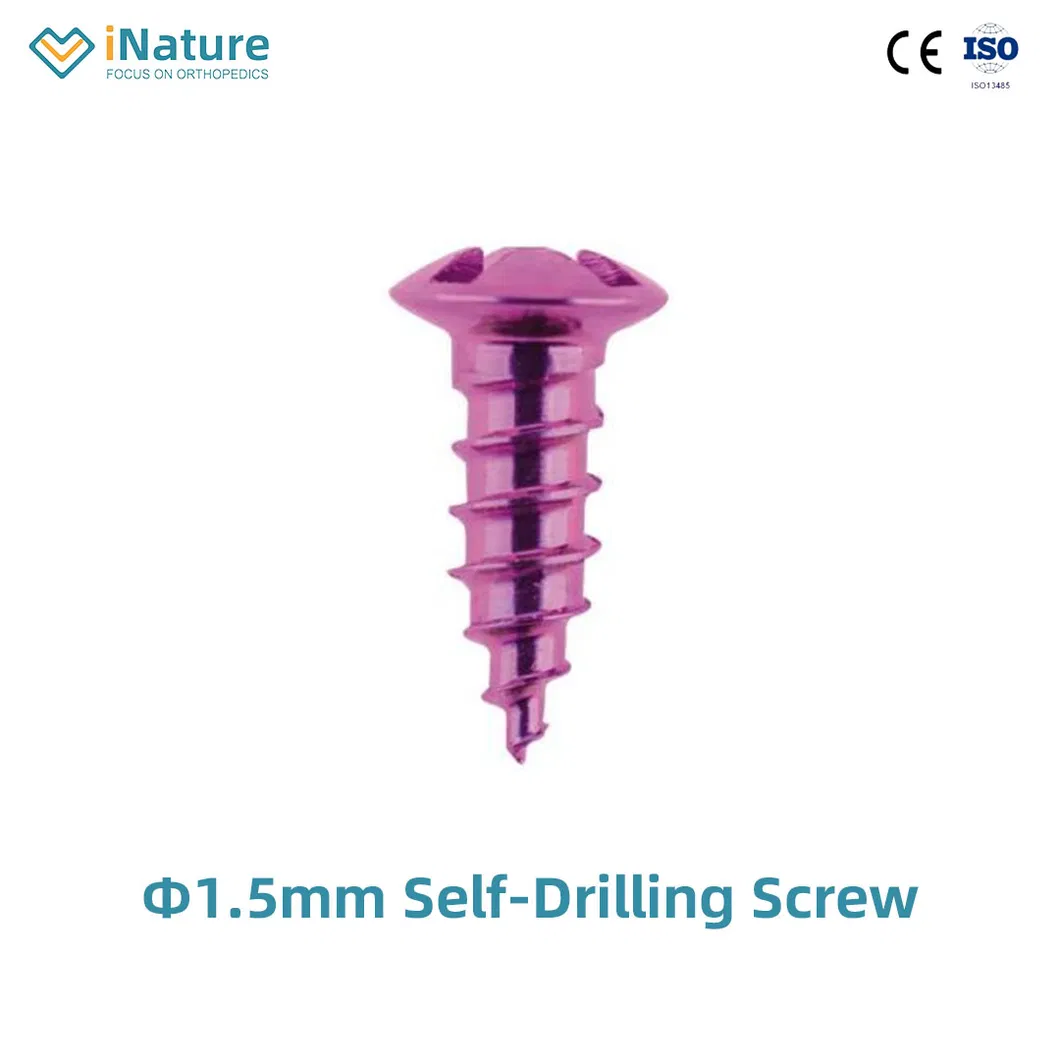

- φ1.5mm self-drilling screw
- φ1.5mm self-tapping screw
- φ1.5mm locking screw
Matching Instruments:
- Medical drill bit φ1.1*8.5*48mm
- Cross head screw driver: SW0.5*2.8*95mm
- Straight quick coupling handle
Product Specifications
| Model |
Specification |
| Maxillofacial Micro Locking X-Plate | 4 holes, 0.6mm, 14mm |
| Maxillofacial Micro Locking Rectangular Plate | 4 holes, 0.6mm, 14*14mm |
| Maxillofacial Micro Locking Straight bridge Plate | 4 holes, 0.6mm, 20mm |

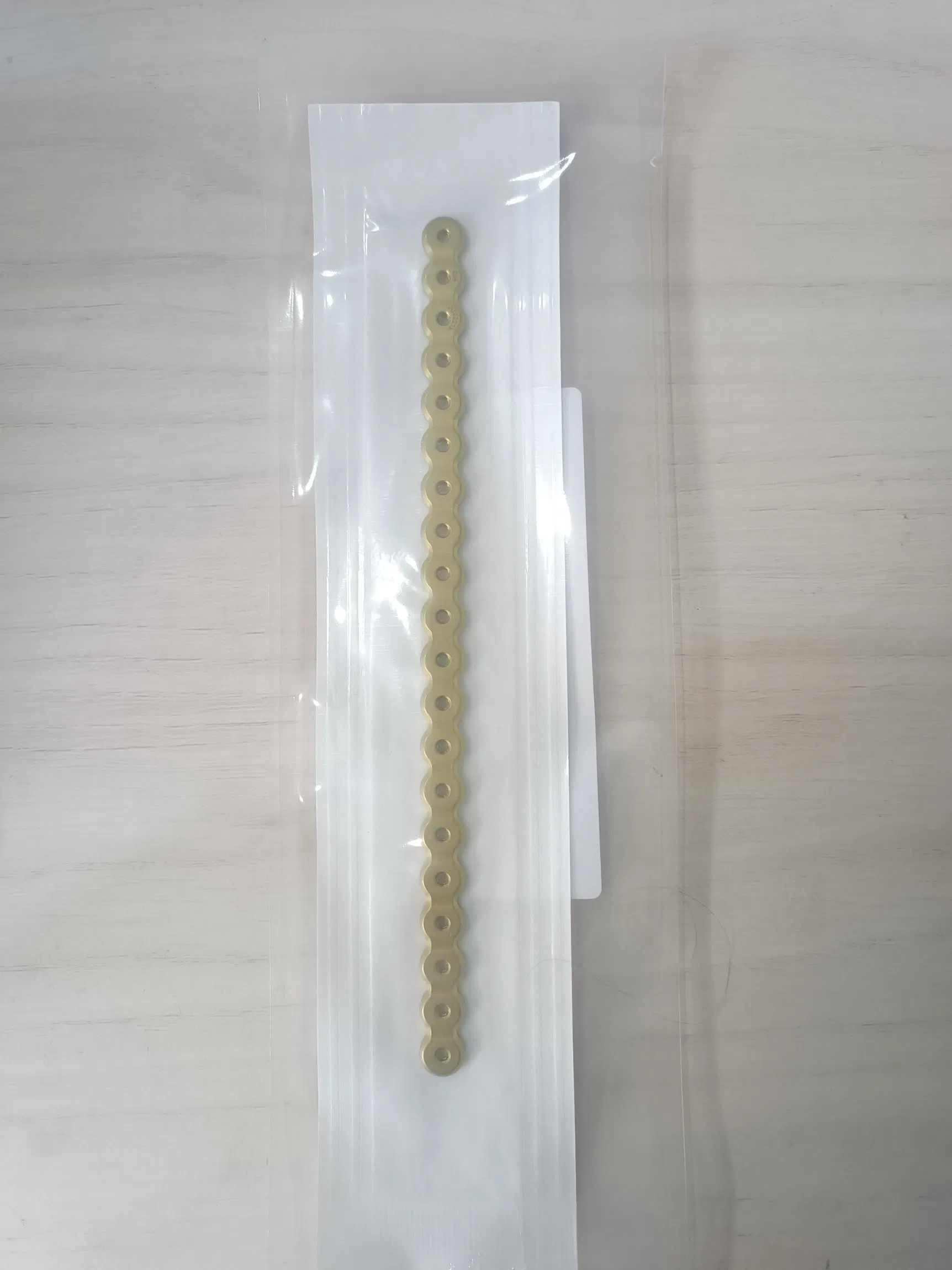

| Maxillofacial Micro Locking Straight Plate | 6-14 holes, 0.6mm, 24-56mm |
| Maxillofacial Micro Locking Arc Plate | 6-14 holes, 0.6mm, 24-49mm |
| Maxillofacial Micro Locking L-plate (110°/90°) | 4-5 holes, 0.6mm, 16-20mm |
| Maxillofacial Micro Locking Y-plate | 6-7 holes, 0.6mm, 17-28mm |
| Maxillofacial Micro Locking T-plate | 5-7 holes, 0.6mm, 16-24mm |
*Reference price only. Final pricing based on latest quotation.
Visual Gallery
Frequently Asked Questions (FAQ)
Q1: What material is used for the maxillofacial locking plates?
The plates are manufactured using special customized German ZAPP pure titanium, which offers excellent biocompatibility and uniform grain size.
Q2: Are these implants compatible with MRI or CT scans?
Yes, the high-quality titanium material used does not affect MRI or CT examinations.
Q3: Can I use both locking and non-locking screws with the same plate?
Yes, the unique hole design allows for the free collocation of both locking and non-locking screws to better meet clinical demands.
Q4: How does the locking mechanism function?
The plates utilize a specialized squeeze locking technology for a secure and stable mechanism.
Q5: What is the benefit of the concave hole design?
The concave design allows the plate and screw to combine more closely, resulting in a lower profile and reduced soft tissue discomfort.
Q6: What certifications do these medical devices hold?
These instruments are classified as Class III and hold CE and ISO13485 certifications.
